Weatherhead by Danfoss

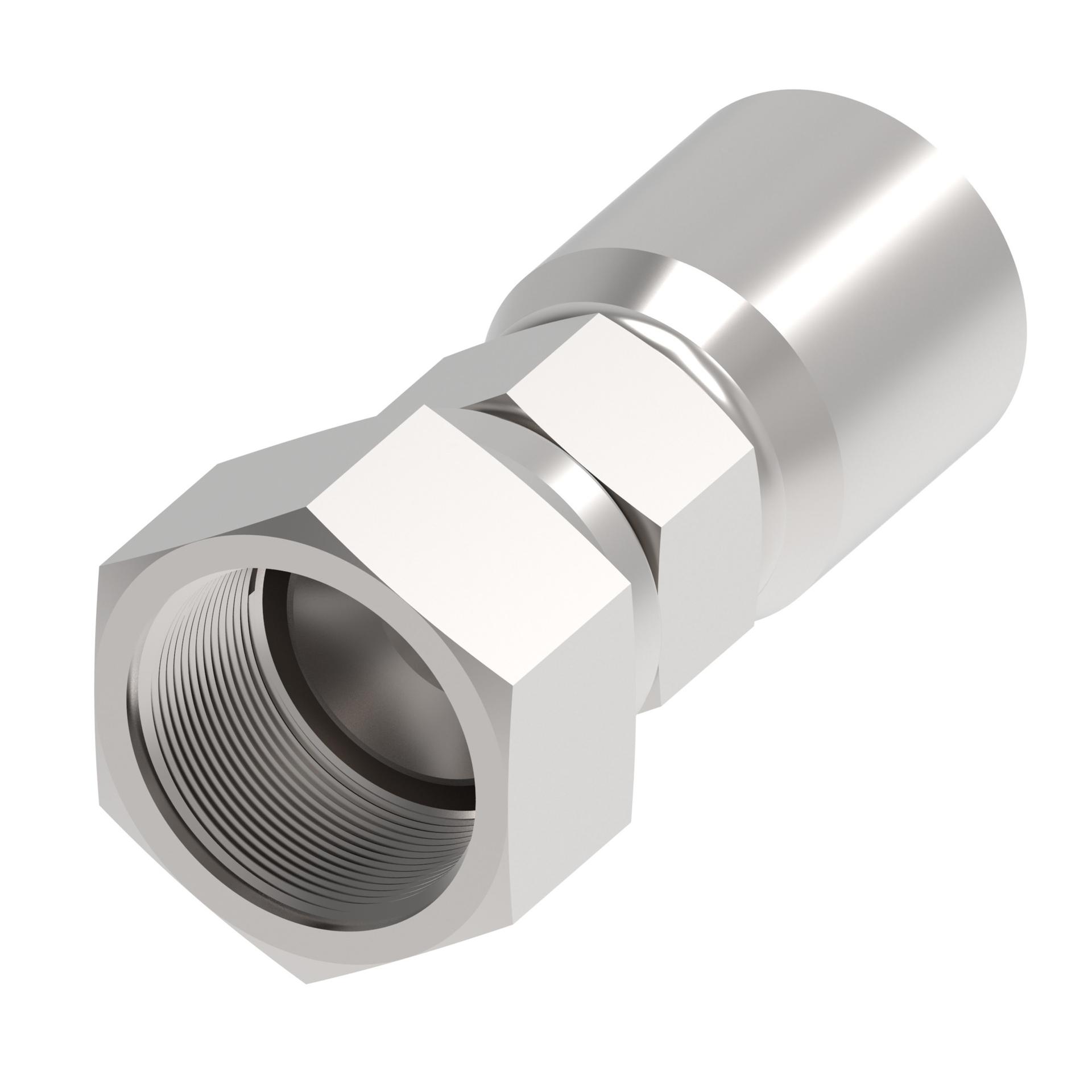

06924E-42K

This product has been discontinued.

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Characteristic	Value	Description
Angle (shape)		Straight
Application		General purpose low and medium pressure hydraulics. Generally used for truck and off-road vehicle applications.
Brand		Weatherhead by Danfoss
Compatible hose ID		1.5 in
Compatible hoses		H059 , H069, H166, H169, H229, H239, H366, H569
Compatible tube OD		1.38 in
Construction style		Crimp
End gender 1		Female
End type 1		Metric
End type 2		Line/Hose/Tube
Feature		Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Finish/plating		DURA-KOTE
Hex Size 1		2.13 in
Hex Size 2		2 in
Hose cut-off factor		2.17 in
Hose dash size		-24
Inside diameter		1.19 in
Item type		Fitting Assembly
Outside diameter		2.13 in
Packaged Height		5.5 in
Packaged Length		6.75 in
Packaged Volume		250.594 in³
Packaged Weight		.5 lb
Packaged Width		6.75 in
Product Height		2.13 in
Product Length/Depth		3.58 in
Product material		Carbon Steel
Product Type		Crimp Hose Fittings
Product Volume		16.242 in³
Product Weight		1.734417 lb
Product Width		2.13 in
Sub-brand		None
Thread sealant		No
Thread Size 1		M42x1.5
Trade Name		069 E Series
UNSPSC		27121701
UPC		725975767177
