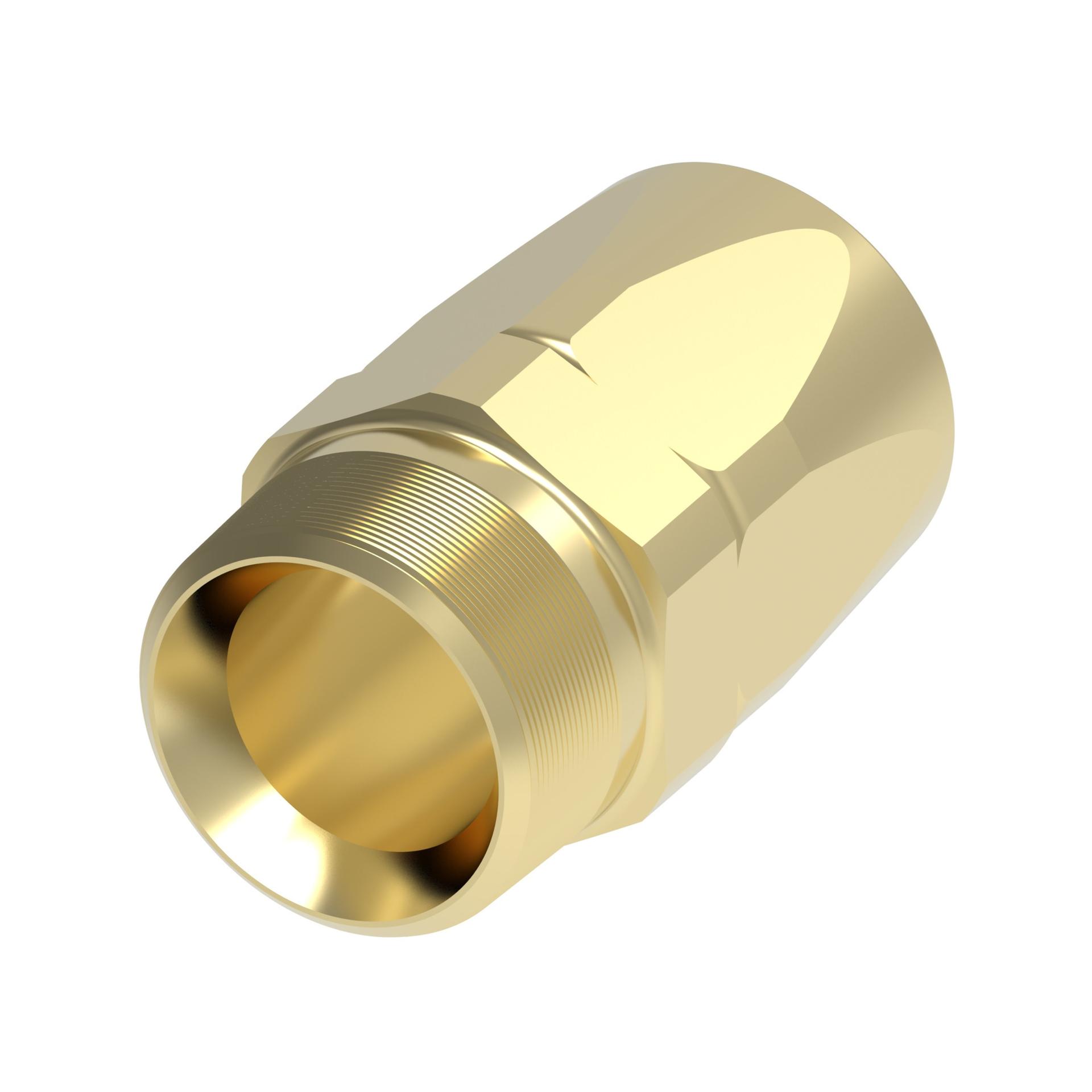

Hose Fittings 412-24-24B [RIGHT]

Weatherhead by Danfoss

06940T-140

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
ApplicationMedium pressure and high temperature hose lines for a variety of applications including truck, industrial, and small engine where temperature may be a problem.
BrandWeatherhead by Danfoss
Compatible hosesH069, H166, H169, H229, H366
End gender 1Male
End gender 2Female
End Size 22 1/2 IN
End type 1Line/Hose/Tube
End type 2NPTF
FeatureFit for wide range of applicationsDurable and dependableCut assembly times and boost production
Hex Size 13.13 in
Hex Size 23 in
Hose cut-off factor3.12 in
Inside diameter2.2 in
Item typeFitting Assembly
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height3.12 in
Product Length/Depth5.03 in
Product materialBrass
Product TypeField Attachable Hose Fittings
Product Volume48.964 in³
Product Weight4.79 lb
Product Width3.12 in
Sub-brandNone
Thread sealantNo
Thread Size 22 1/2-8
Trade Name069 T Series
UNSPSC27121701
UPC725975057964
