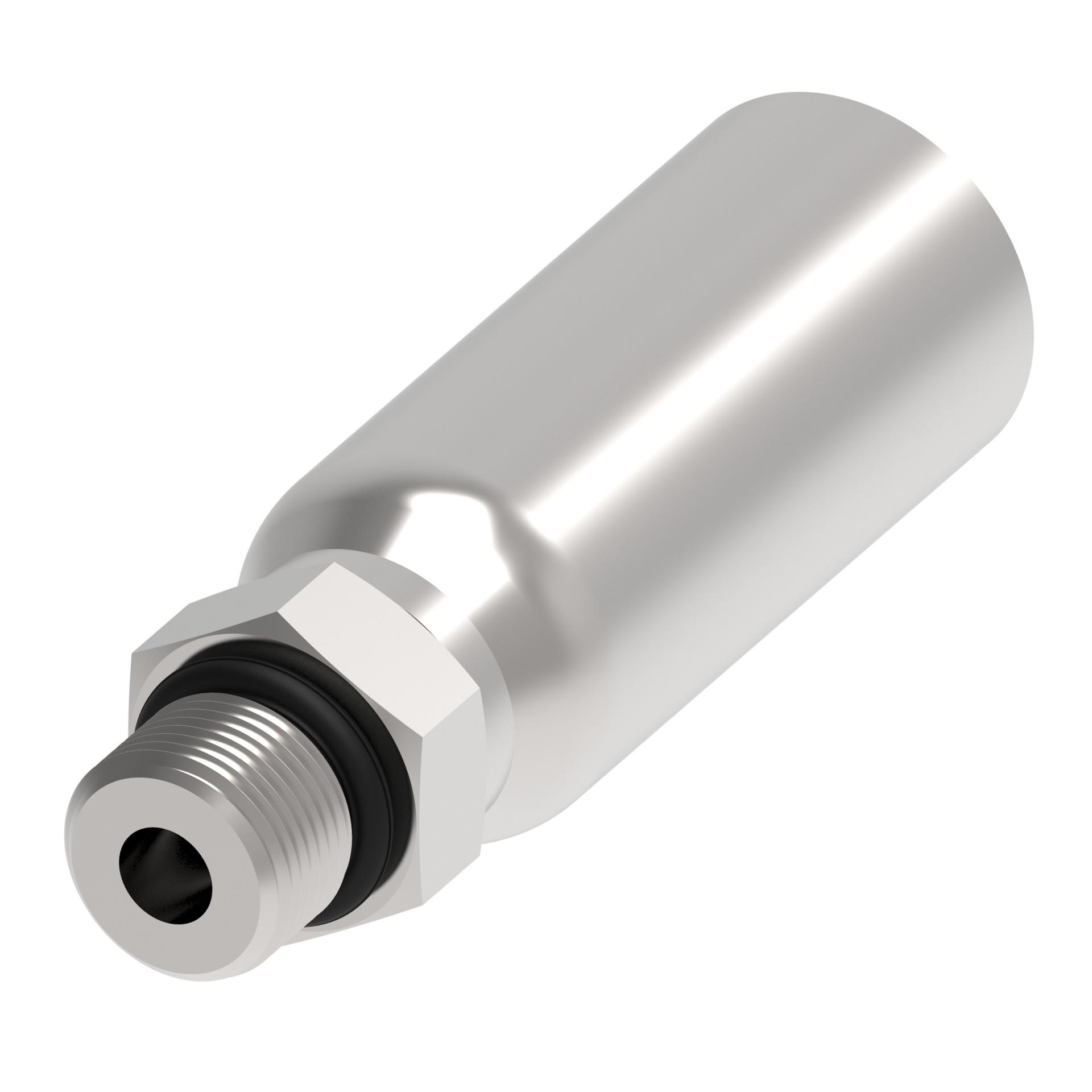

Hose Fittings 04U-P04 [RIGHT]

08U-P08

Male Straight Thread O-Ring Rigid
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Braided fittings

Recommended replacement: 08Z-P08

Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
ApplicationGeneral purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Compatible hose ID.5 in
Compatible hosesH017, H039, H104, H114, H115, H145, H146, H245, H324, H325, H350, H425, H545, H900, H1812, H0105, H0106, H116, H1981, H1982, H9949, H1776, H1777, H1571, H600
Compatible tube OD.5 in
Construction styleCrimp
End Size 13/4 IN
End gender 1Male
End gender 2Female
End type 1SAE
End type 2Line/Hose/Tube
Finish/platingZinc Clear Trivalent Chromate
Hex Size 1.875 in
Hex Size 2.875 in
Hose cut-off factor1.06 in
Hose dash size-8
Inside diameter.36 in
Item typeFitting Assembly
Outside diameter1.004 in
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight1.213 lb
Packaged Width6.75 in
Product Height1.004 in
Product Length/Depth2.46 in
Product Volume2.48 in³
Product Weight.213 lb
Product Width1.004 in
Product materialCarbon steel
Seal part number if included121-00908-51
Thread Size 13/4-16
Thread sealantNo
UNSPSC27121707
UPC725975760765
