Hose Fittings 1AA10MB10 [RIGHT]

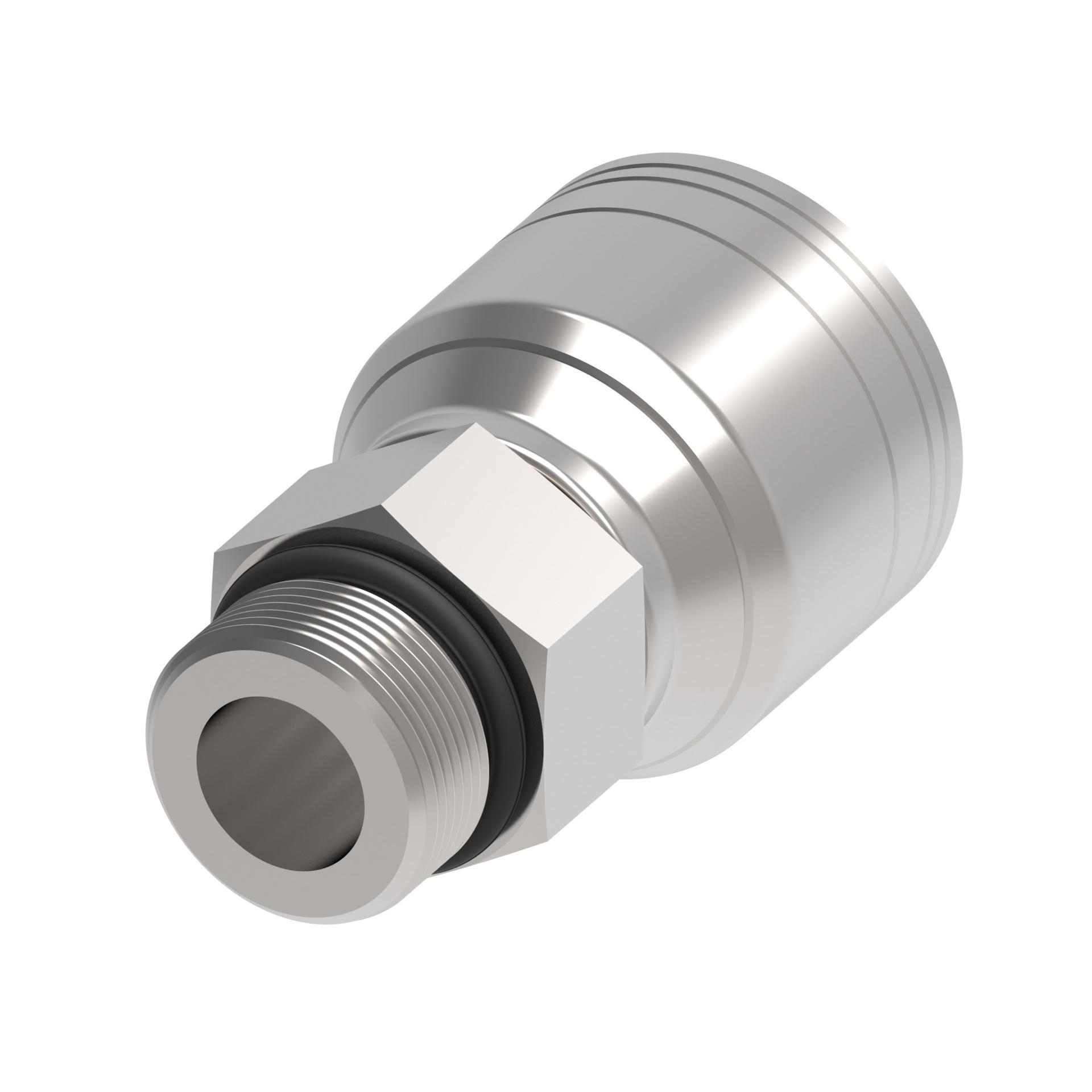

Hose End (perm) 1S/1R Str M SAE ORB

08Z-P08

Tools

Product specifications

Characteristic
Value
Angle shapeStraight
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible tube OD IN0.50
Compatible tube OD MM12.700
CompliancesSAE J1176
Construction StyleCrimp
End size 1-12
Finish platingDura-Kote
Hex size 1 IN0.870
Hex size 1 MM22.098
Hose cut off factor IN1.190
Hose cut off factor MM30.226
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.652
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.500
Tube OD 1 MM12.700

General specifications

Characteristic
Value
EAN/UPC639789293299
