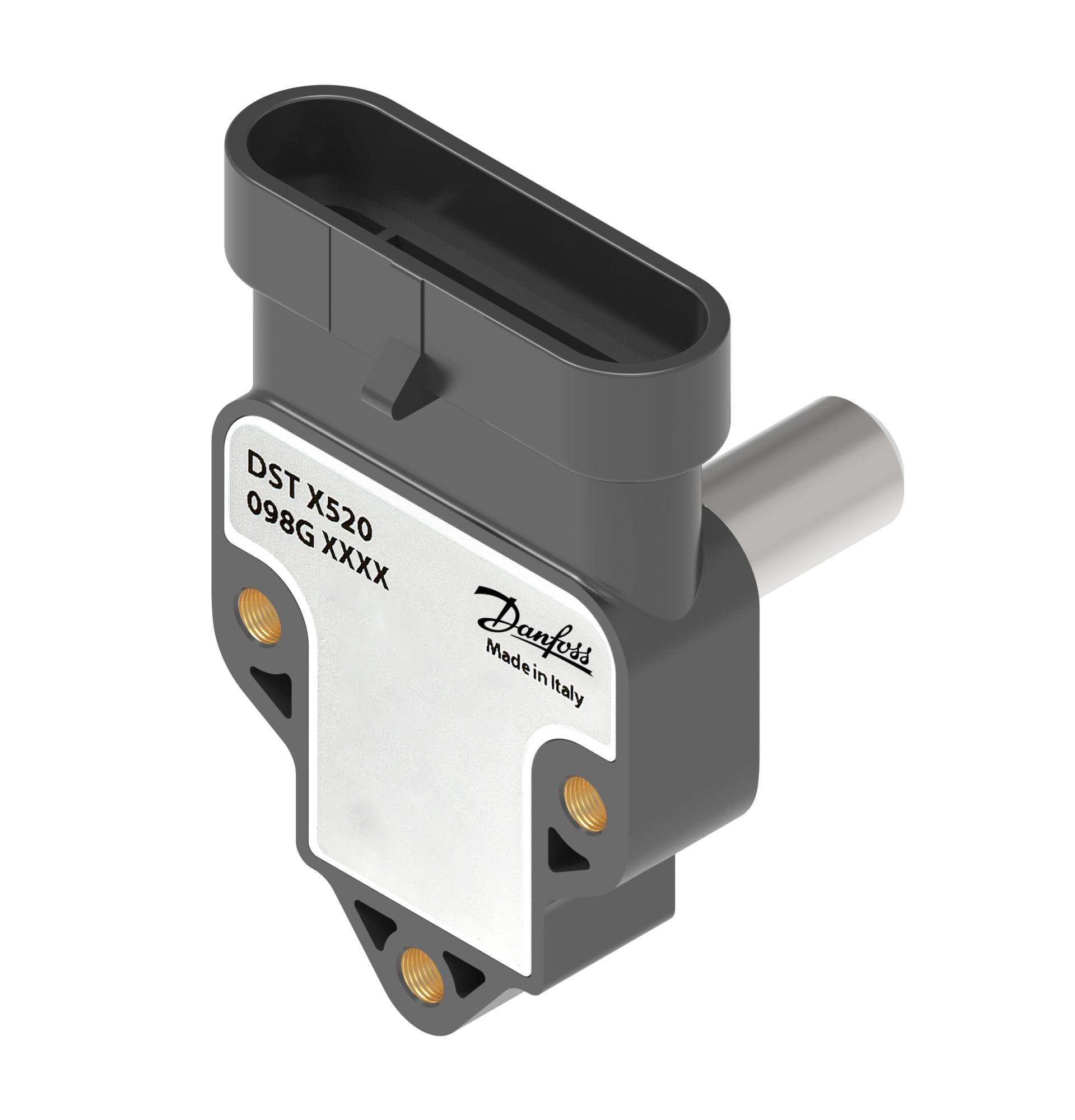

DST X520-AS180000HC11000 L033A00
098G1578
Supply voltage [V] DC: 9 - 36, Electrical connection: AMP SuperSeal, Electrical connection standard: 282108-1, Rotational direction: CW, Specification key: AS180000HC11000 L033A00
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
098G1578
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Accessories | PKIT 384 MAGNET(B) | |
| Angle/Channel 1 [°] | 180 ° | |
| Approval | CE | |
| CE mark | Yes | |
| China RoHS compliance | Out of scope | |
| Circuit type | Single | |
| Contains batteries | No | |
| Electrical connection | AMP SuperSeal | |
| Electrical connection size | 6 pin | |
| Electrical connection standard | 282108-1 | |
| Enclosure rating IP | IP67 | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Output signal | CAN-open | |
| Packing format | Multi pack | |
| Quantity per packing format | 20 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Rotational direction | CW | |
| SCIP dossier no. | 90c4872f-8992-4881-8081-9caca8bca57f | |
| SCIP dossier product name | GRN | |
| Specification key | AS180000HC11000 L033A00 | |
| Supply voltage [V] DC [max] | 36.00 V | |
| Supply voltage [V] DC [min] | 9.00 V | |
| UL mark | No |
General specifications
Characteristic | Value |
|---|---|
| Proposition 65 | Cancer and Reproductive Harm |
