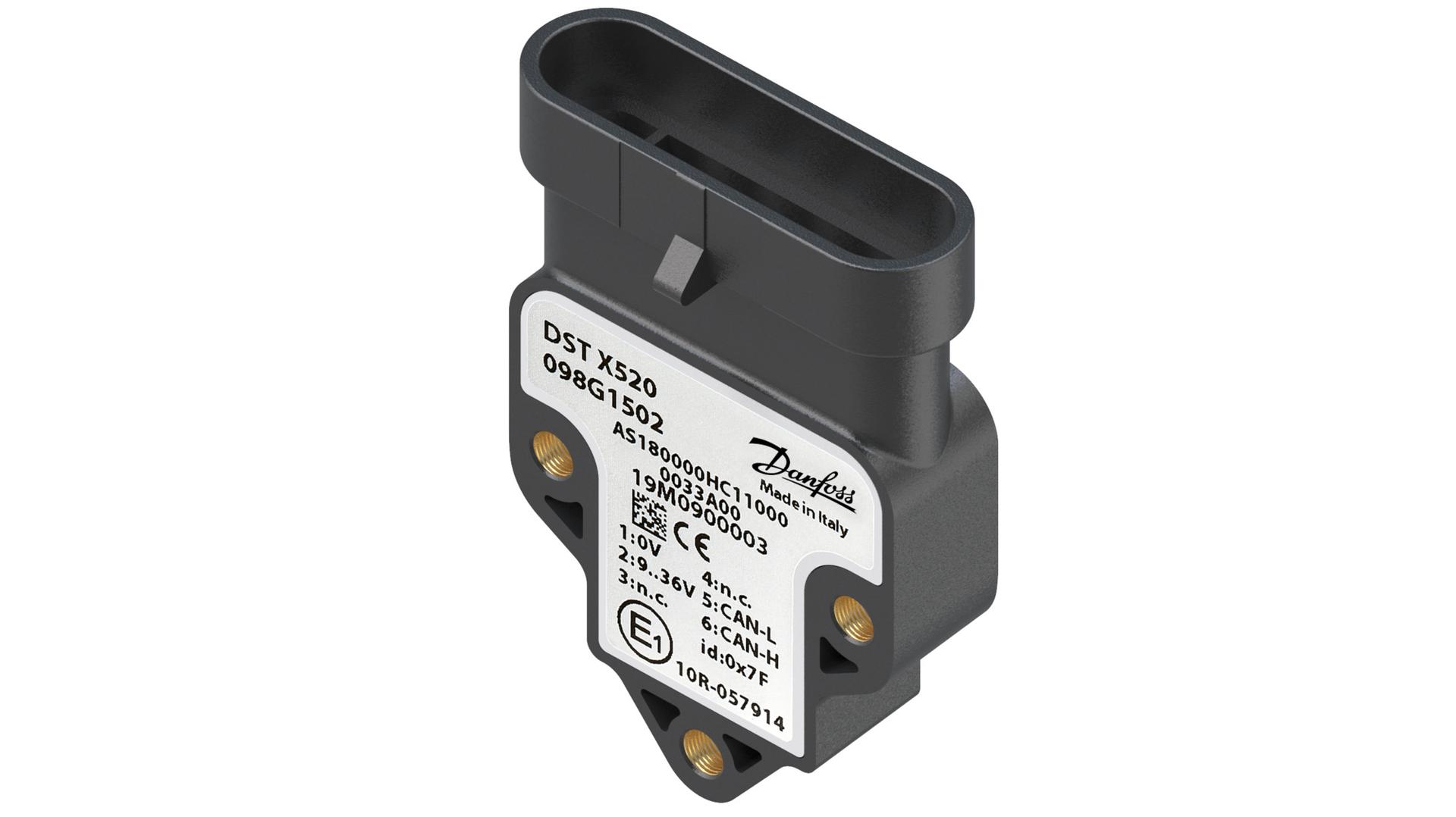

DST X520-AS180000HC21000 0033C00
098G1585
Supply voltage [V] DC: 9 - 36, Electrical connection: AMP SuperSeal, Electrical connection standard: 282108-1, Rotational direction: CCW, Specification key: AS180000HC22000 0033C00
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
098G1585
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Accessories | PKIT 418 MAGNET | |
| Angle/Channel 1 [°] | 180 ° | |
| Approval | CE | |
| CE mark | Yes | |
| China RoHS compliance | Out of scope | |
| Circuit type | Single | |
| Contains batteries | No | |
| Electrical connection | AMP SuperSeal | |
| Electrical connection size | 6 pin | |
| Electrical connection standard | 282108-1 | |
| Enclosure rating IP | IP67 | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Output signal | SAE J1939 | |
| Packing format | Multi pack | |
| Quantity per packing format | 20 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Rotational direction | CCW | |
| SCIP dossier no. | 90c4872f-8992-4881-8081-9caca8bca57f | |
| SCIP dossier product name | GRN | |
| Specification key | AS180000HC22000 0033C00 | |
| Supply voltage [V] DC [max] | 36.00 V | |
| Supply voltage [V] DC [min] | 9.00 V | |
| UL mark | No |
General specifications
Characteristic | Value |
|---|---|
| Proposition 65 | Cancer and Reproductive Harm |
