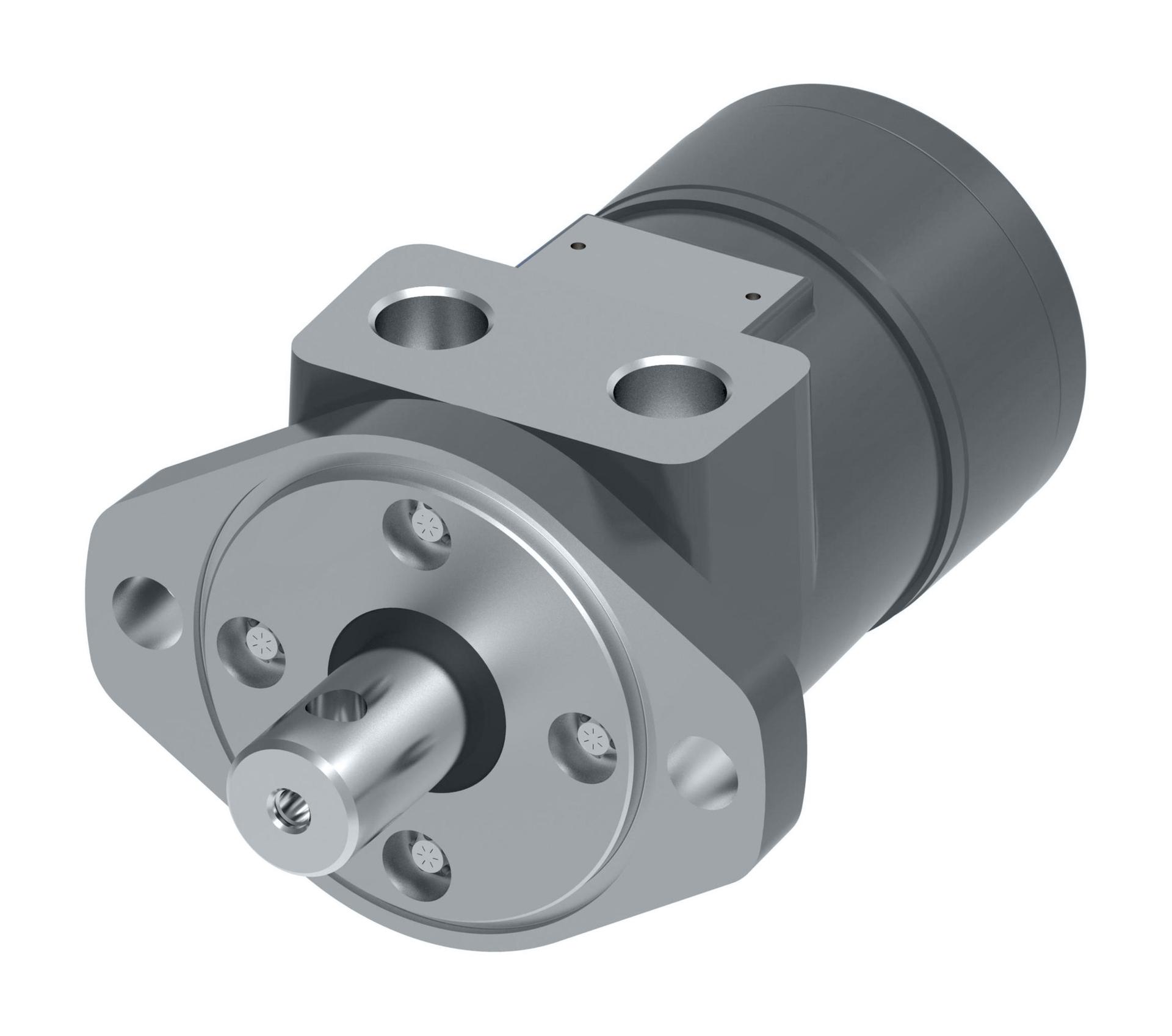

Danfoss Char-Lynn

101-3426-009

This product has been discontinued.

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Characteristic	Value	Description
Brake Release Port Dimension		n/a
Brand		Danfoss
Check valve function		No
Design Code		09
Drain Port Dimension		None
Dust seal		Standard
Feature		Compact yet powerfulExtended bearing lifeIncreased shaft seal
Front bearing type		Journal bearing
Geometric displacement [cm3/r [in3/r]]		231 [14.1]
Hydraulic valve function		None
Main port dimension		G 1/2
Main port style		Sideport - aligned
Main port thread type		BSP
Model Code		MH0141AA08AF0000030000000AA00J
Model Code		MH0141AA08AF0000030000000AA00J
Motor function		Standard
Motor Series		H Series
Motor Size		230
Motor type		Standard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]		82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54]
Mounting flange type		2 Bolt - A
Name Tag		Danfoss name tag
Orbital gearwheel set		Standard
Orbital gearwheel set type		Gerotor
Packaging		No data available
Paint information		Primer, Black, Low gloss
Painted		Yes
Product Height		3.87 in
Product Length/Depth		7.45 in
Product Type		Spool Gerotor
Product Volume		151.942 in³
Product Weight		13.3 lb
Product Width		5.27 in
Rear bearing type		Journal bearing
Seal Kit		No data available
Sensor		None
Shaft dimension		Dia. 1 inch, Crosshole 0.406 inch, 1/4 - 20 UNC-2B thread in shaft end
Shaft Key		n/a
Shaft Seal		FPM viton - Standard
Shaft type		Straight
Special Features Assembly		Standard
Special features hardware		Standard
Sub-brand		Char-Lynn
Trade Name		H Series
Valve system		Spool valve
