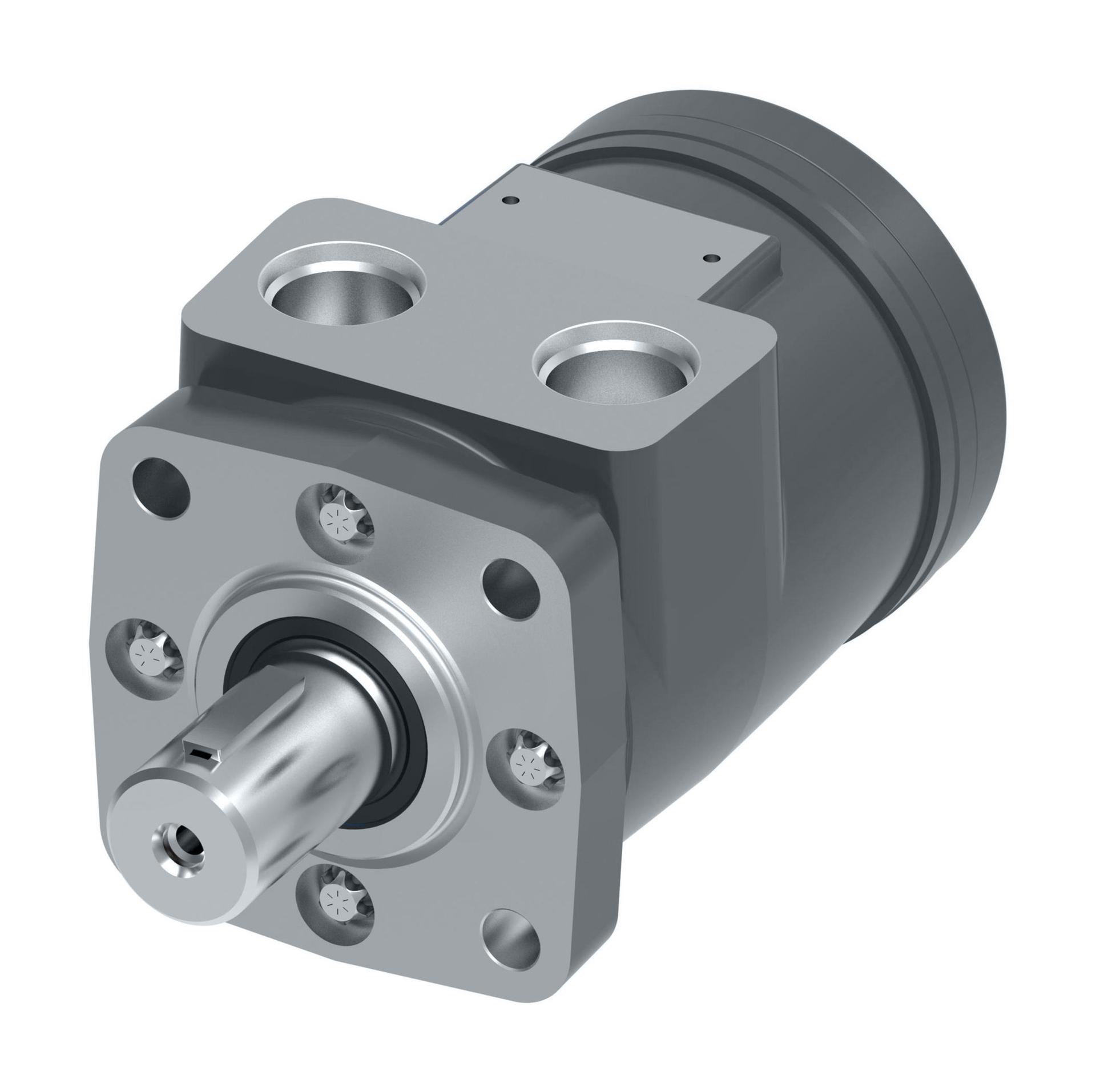

Danfoss Char-Lynn H Series Spool GerolerMH0022BA01AA00A000AB00AB00000J (RIGHT)

Danfoss Char-Lynn

101-3969-009

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Brake Release Port Dimensionn/a
BrandDanfoss
Check valve functionNo
Design code09
Drain Port DimensionNone
Dust sealStandard
FeatureCompact yet powerfulExtended bearing lifeIncreased shaft seal
Front bearing typeJournal bearing
Geometric displacement [cm3/r [in3/r]]36 [2.2]
Hydraulic valve functionNone
Main port dimension7/8 - 14 UNF-2B SAE O-Ring port
Main port styleSideport - aligned
Main port thread typeUN / UNF
Model CodeMH0022BA01AA00A000AB00AB00000J
Model CodeMH0022BA01AA00A000AB00AB00000J
Motor functionHigher efficiency and smooth running (Low speed valving)
Motor SeriesH Series
Motor Size35
Motor typeStandard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]44.4 x 3.1, 82.6, 3/8 - 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 - 16 UNC-2B]
Mounting flange type4 Bolt - Square
Name TagDanfoss name tag
Orbital gearwheel setFree running
Orbital gearwheel set typeGerotor
PackagingNo data available
Paint informationn/a
PaintedNo
Product Height3.31 in
Product Length/Depth6.45 in
Product TypeSpool Gerotor
Product Volume72.161 in³
Product Weight11.2 lb
Product Width3.38 in
Rear bearing typeJournal bearing
Seal Kit60540-000
SensorSpeed, Hall effect, 60 pulses, M12 connector
Shaft dimensionDia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end
Shaft KeyWoodruff key
Shaft SealNBR - Standard
Shaft typeStraight
Special Features AssemblyStandard
Special features hardwareStandard
Sub-brandChar-Lynn
Trade NameH Series
Valve systemSpool valve
