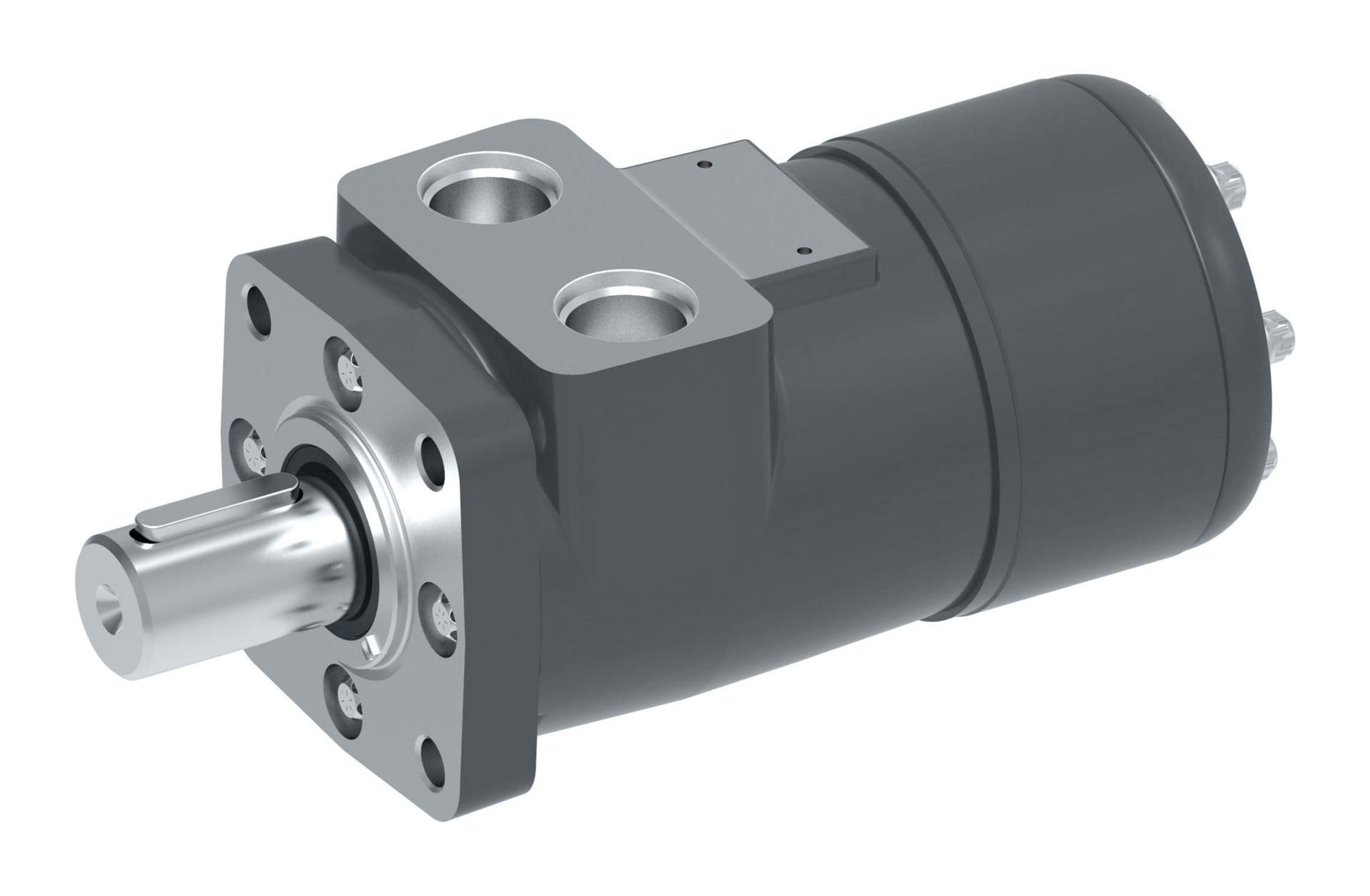

Danfoss Char-Lynn
101-4154-009
H MOTORS
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Product specifications
Characteristic | Value |
---|---|
Brake Release Port Dimension | n/a |
Brand | Danfoss |
Check valve function | No |
Design code | 09 |
Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
Dust seal | Standard |
Feature | Compact yet powerfulExtended bearing lifeIncreased shaft seal |
Front bearing type | Journal bearing |
Geometric displacement [cm3/r [in3/r]] | 58 [3.5] |
Hydraulic valve function | None |
Main port dimension | 7/8 - 14 UNF-2B SAE O-Ring port |
Main port style | Sideport - aligned |
Main port thread type | UN / UNF |
Model Code | MH0035BA01AA01A000AE00000AA00J |
Model Code | MH0035BA01AA01A000AE00000AA00J |
Motor Series | H Series |
Motor function | Standard |
Motor size | 60 |
Motor type | Standard |
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 44.4 x 3.1, 82.6, 3/8 - 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 - 16 UNC-2B] |
Mounting flange type | 4 Bolt - Square |
Name Tag | Danfoss name tag |
Orbital gearwheel set | Free running |
Orbital gearwheel set type | Gerotor |
Packaging | No data available |
Paint information | Primer, Black, Low gloss |
Painted | Yes |
Product Height | 3.87 in |
Product Length/Depth | 9.23 in |
Product Type | Spool Gerotor |
Product Volume | 118.234 in³ |
Product Weight | 11.5 lb |
Product Width | 3.31 in |
Rear bearing type | Journal bearing |
Seal Kit | 60540-000 |
Sensor | Speed, Hall effect, 15 pulses, 127 mm [5.0 inch] wire lenght, Packard weather pac shroud connector |
Shaft Key | Woodruff key |
Shaft Seal | NBR - Standard |
Shaft dimension | Dia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end |
Shaft type | Straight |
Special Features Assembly | Standard |
Special features hardware | Standard |
Sub-brand | Char-Lynn |
Trade Name | H Series |
Valve system | Spool valve |
