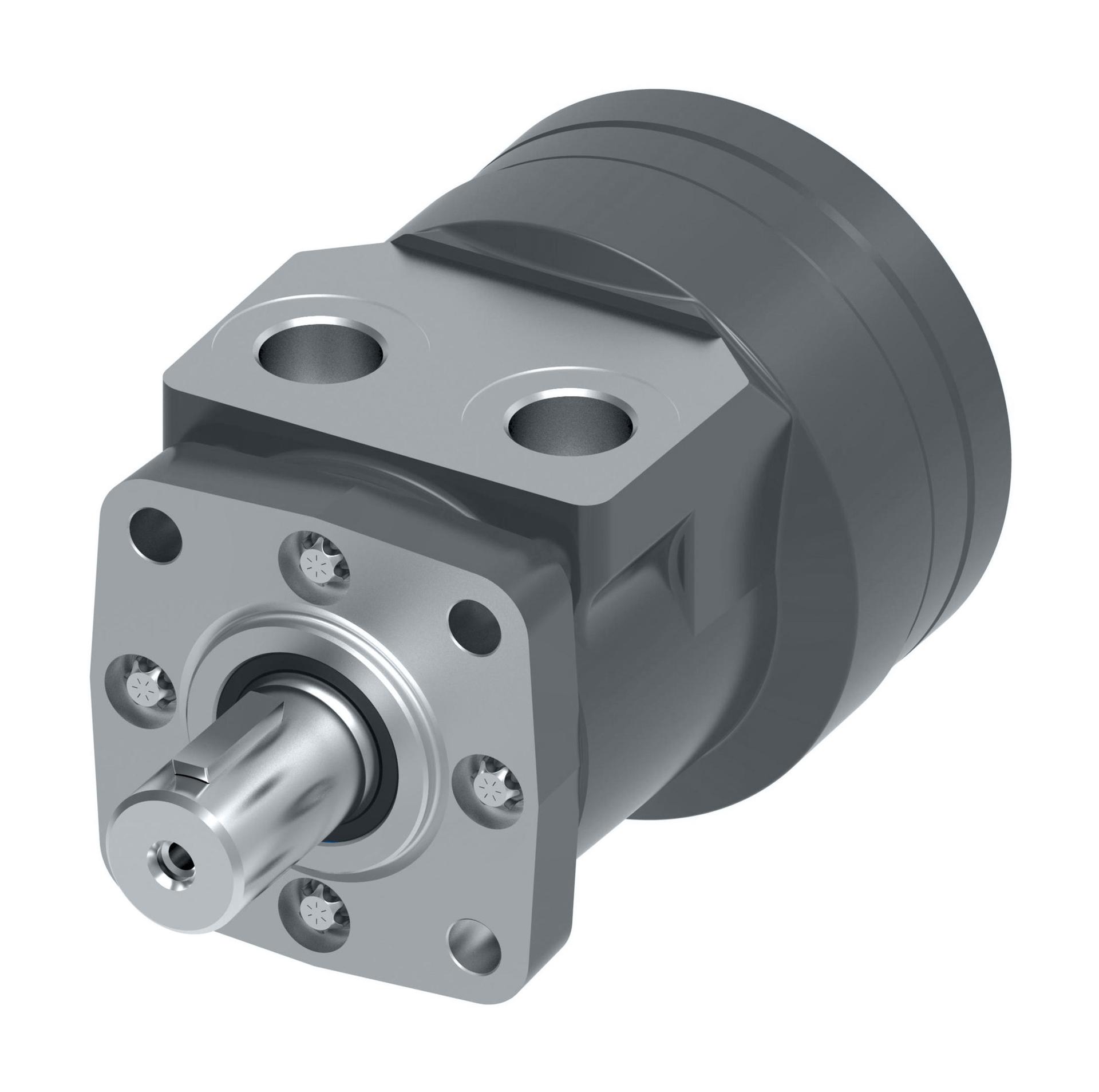

Danfoss Char-Lynn

103-3622-012

This product has been discontinued.

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Characteristic	Value	Description
Brake Release Port Dimension		n/a
Brand		Danfoss
Check valve function		No
Design Code		12
Drain Port Dimension		None
Dust seal		Standard
Feature		Compact yet powerfulExtended bearing lifeIncreased shaft seal
Front bearing type		Journal bearing
Geometric displacement [cm3/r [in3/r]]		93 [5.7 ]
Hydraulic valve function		None
Main port dimension		7/8 - 14 UNF-2B SAE O-Ring port
Main port style		Sideport - aligned
Main port thread type		UN / UNF
Model Code		MS0057FA39AA0000070000AB0AF00M
Model Code		MS0057FA39AA0000070000AB0AF00M
Motor function		Higher efficiency and smooth running (Low speed valving)
Motor Series		S Series
Motor Size		95
Motor type		Standard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]		44.4 x 3.1, 82.6, M10 x 1.50-6H [1.75 x 0.12, 3.25, M10 x 1.50-6H]
Mounting flange type		4 Bolt - Square
Name Tag		Danfoss name tag
Orbital gearwheel set		Standard
Orbital gearwheel set type		Geroler
Packaging		No data available
Paint information		Environmental coated, Black
Painted		Yes
Product Height		4.24 in
Product Length/Depth		6.61 in
Product Type		Spool Geroler
Product Volume		118.832 in³
Product Weight		13.3 lb
Product Width		4.24 in
Rear bearing type		Journal bearing
Seal Kit		No data available
Sensor		None
Shaft dimension		Dia. 25 mm, M8 x 1.25-6H thread in shaft end
Shaft Key		Rectangular key
Shaft Seal		NBR - High pressure
Shaft type		Straight
Special Features Assembly		Standard
Special features hardware		Standard
Sub-brand		Char-Lynn
Trade Name		S Series
Valve system		Spool valve
