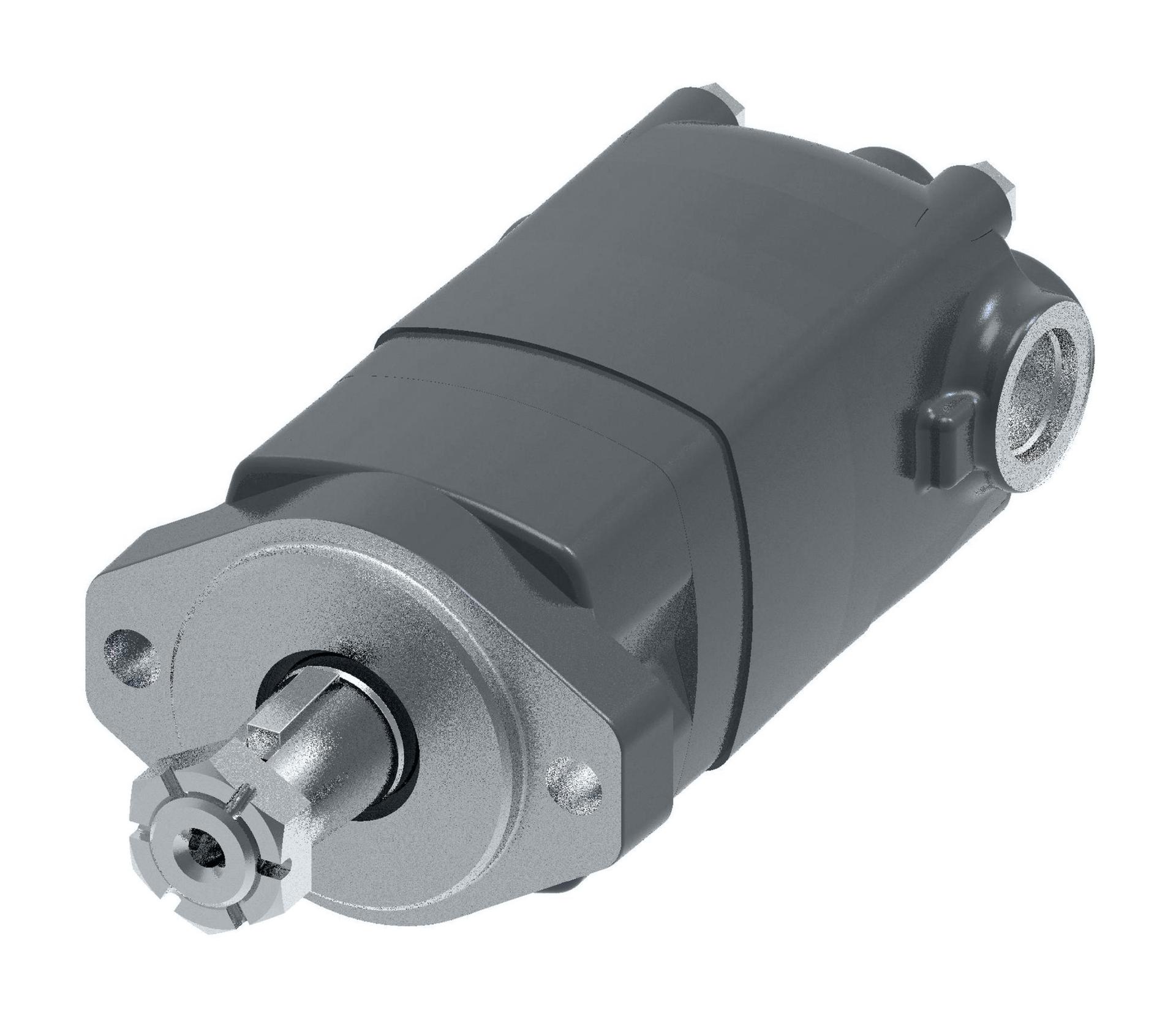

Danfoss Char-Lynn 2000 Series Disc Geroler StandardM02119AC03AF0100010000000AAAAF (RIGHT)

Danfoss Char-Lynn

104-1099-006

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Brake Release Port Dimensionn/a
BrandDanfoss
Check valve functionYes
Design code06
Drain Port Dimension7/16 - 20 UNF-2B SAE O-Ring port
Dust sealStandard
FeatureStandard, wheel or bearingless configurationsLowest pressure drop motor in the industryHighly-efficient Geroler motor provides energy savings
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]194.8 [11.89]
Hydraulic valve functionNone
Main port dimension1 1/16 - 12 UN-2B SAE O-Ring port
Main port styleSideport - 180 deg to each other
Main port thread typeUN / UNF
Model CodeM02119AC03AF0100010000000AAAAF
Model CodeM02119AC03AF0100010000000AAAAF
Motor functionStandard
Motor Series2000 Series
Motor size195
Motor typeStandard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A
Mounting flange type2 Bolt - A
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationn/a
PaintedNo
Product Height4.33 in
Product Length/Depth9.25 in
Product TypeDisc Geroler
Product Volume206.671 in³
Product Weight23 lb
Product Width5.16 in
Rear bearing typeTapered roller bearing
Seal Kit61258-000
SensorNone
Shaft dimensionDia. 1 1/4 inch, 1:8 SAE J501, 1 - 20 UNEF-2A thread in shaft end
Shaft KeySquare key, 5/16 x 1 inch
Shaft SealNBR - Standard
Shaft typeTAPERED
Special Features AssemblyStandard
Special features hardwareStandard
Sub-brandChar-Lynn
Trade Name2000 Series
Valve systemDisc valve with valve drive
