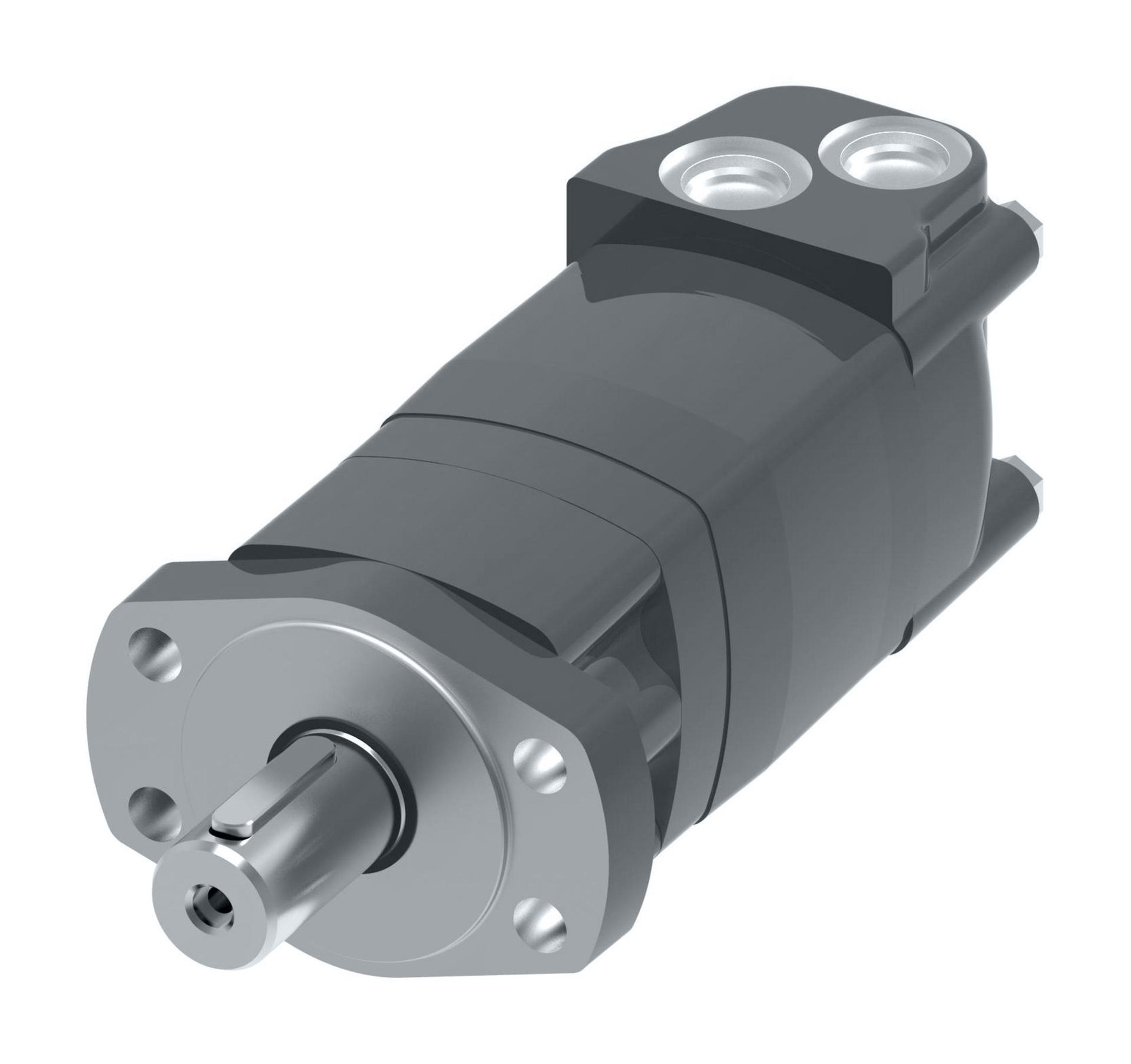

Danfoss Char-Lynn 2000 Series Disc Geroler StandardM02187AJ16AA0100010000000AAAAF (RIGHT)

Danfoss Char-Lynn

104-3200-006

2000 Series Hydraulic Motor
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Brake Release Port Dimensionn/a
BrandDanfoss
Check valve functionYes
Design code06
Drain Port Dimension7/16 - 20 UNF-2B SAE O-Ring port
Dust sealStandard
FeatureStandard, wheel or bearingless configurationsLowest pressure drop motor in the industryHighly-efficient Geroler motor provides energy savings
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]306.6 [18.71]
Hydraulic valve functionNone
Main port dimension7/8 - 14 UNF-2B SAE O-Ring port
Main port styleSideport - staggered
Main port thread typeUN / UNF
Model CodeM02187AJ16AA0100010000000AAAAF
Model CodeM02187AJ16AA0100010000000AAAAF
Motor Series2000 Series
Motor functionStandard
Motor size305
Motor typeStandard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.6 x 2.8, 106.4, 13.6 [3.25 x 0.11, 4.19, 0.54]
Mounting flange type4 Bolt - Magneto
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationn/a
PaintedNo
Product Height4.45 in
Product Length/Depth10.05 in
Product TypeDisc Geroler
Product Volume238.818 in³
Product Weight25 lb
Product Width5.34 in
Rear bearing typeTapered roller bearing
SHAFT TYPEStraight
Seal Kit61258-000
SensorNone
Shaft KeyRectangular key, 10 x 8 x 45 mm
Shaft SealNBR - Standard
Shaft dimensionDia. 32 mm, M8 x 1.25-6H thread in shaft end
Special Features AssemblyStandard
Special features hardwareStandard
Sub-brandChar-Lynn
Trade Name2000 Series
Valve systemDisc valve with valve drive
