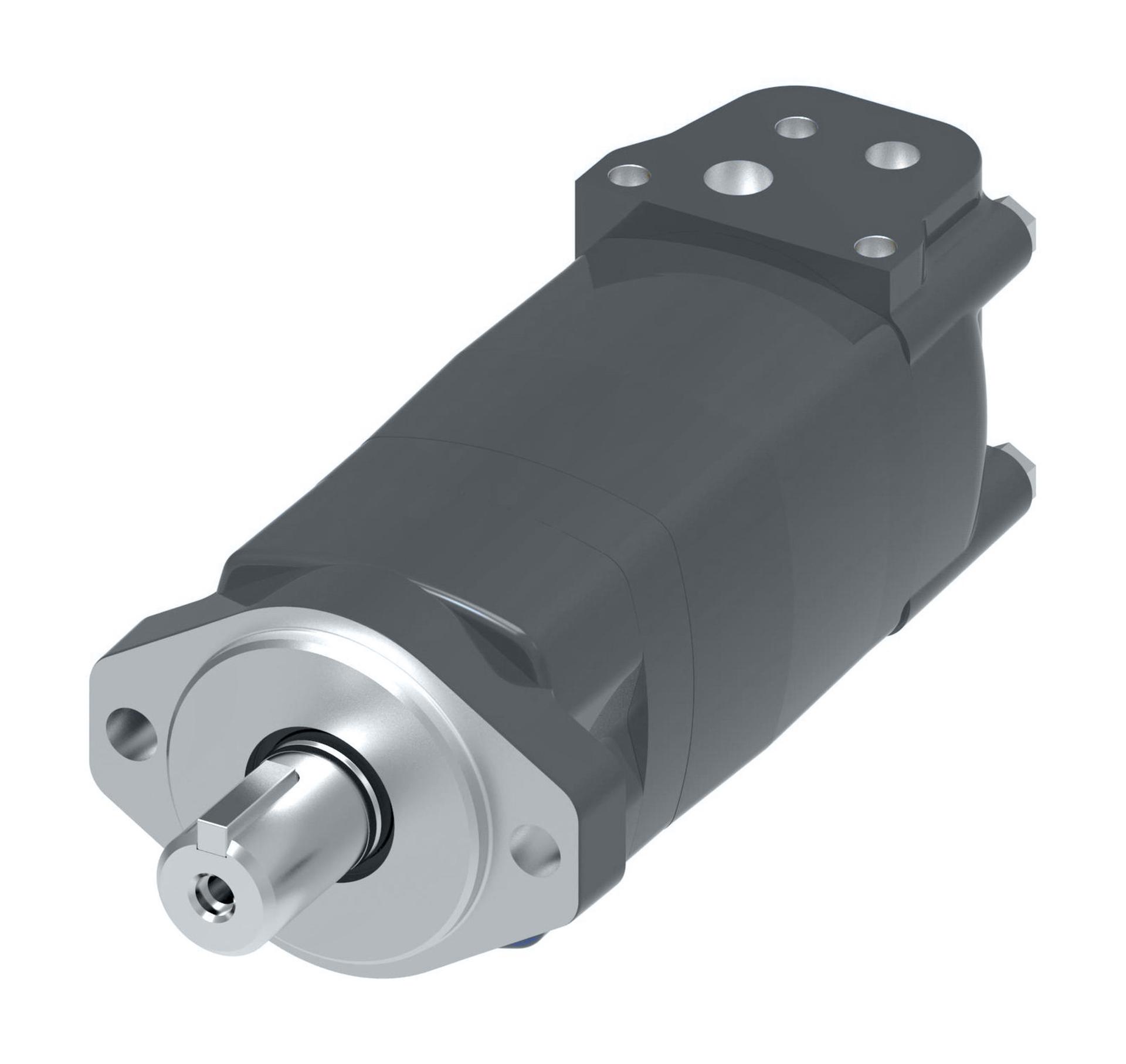

Danfoss Char-Lynn 2000 Series Disc Geroler StandardM02240AC02AB0100010000000ABAAF (RIGHT)

Danfoss Char-Lynn

104-3284-006

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Description
Brake Release Port Dimensionn/a
BrandDanfoss
Check valve functionYes
Design Code06
Drain Port Dimension7/16 - 20 UNF-2B SAE O-Ring port
Dust sealStandard
FeatureStandard, wheel or bearingless configurationsLowest pressure drop motor in the industryHighly-efficient Geroler motor provides energy savings
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]393.8 [24.03]
Hydraulic valve functionNone
Main port dimensionPort A: 0.500 inch & Port B: 0.625 inch drilled hole, 3 x 3/8 - 16 UNC-2B block mounting threads
Main port styleSideport - staggered
Main port thread typeManifold
Model CodeM02240AC02AB0100010000000ABAAF
Model CodeM02240AC02AB0100010000000ABAAF
Motor functionStandard
Motor Series2000 Series
Motor Size395
Motor typeStandard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A
Mounting flange type2 Bolt - A
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationPrimer, Black, Low gloss
PaintedYes
Product Height4.33 in
Product Length/Depth10.69 in
Product TypeDisc Geroler
Product Volume238.845 in³
Product Weight26 lb
Product Width5.16 in
Rear bearing typeTapered roller bearing
Seal Kit61258-000
SensorNone
Shaft dimensionDia. 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end
Shaft KeySquare key, 5/16 x 5/16 x 1 1/4 inch
Shaft SealNBR - Standard
Shaft typeStraight
Special Features AssemblyStandard
Special features hardwareStandard
Sub-brandChar-Lynn
Trade Name2000 Series
Valve systemDisc valve with valve drive
