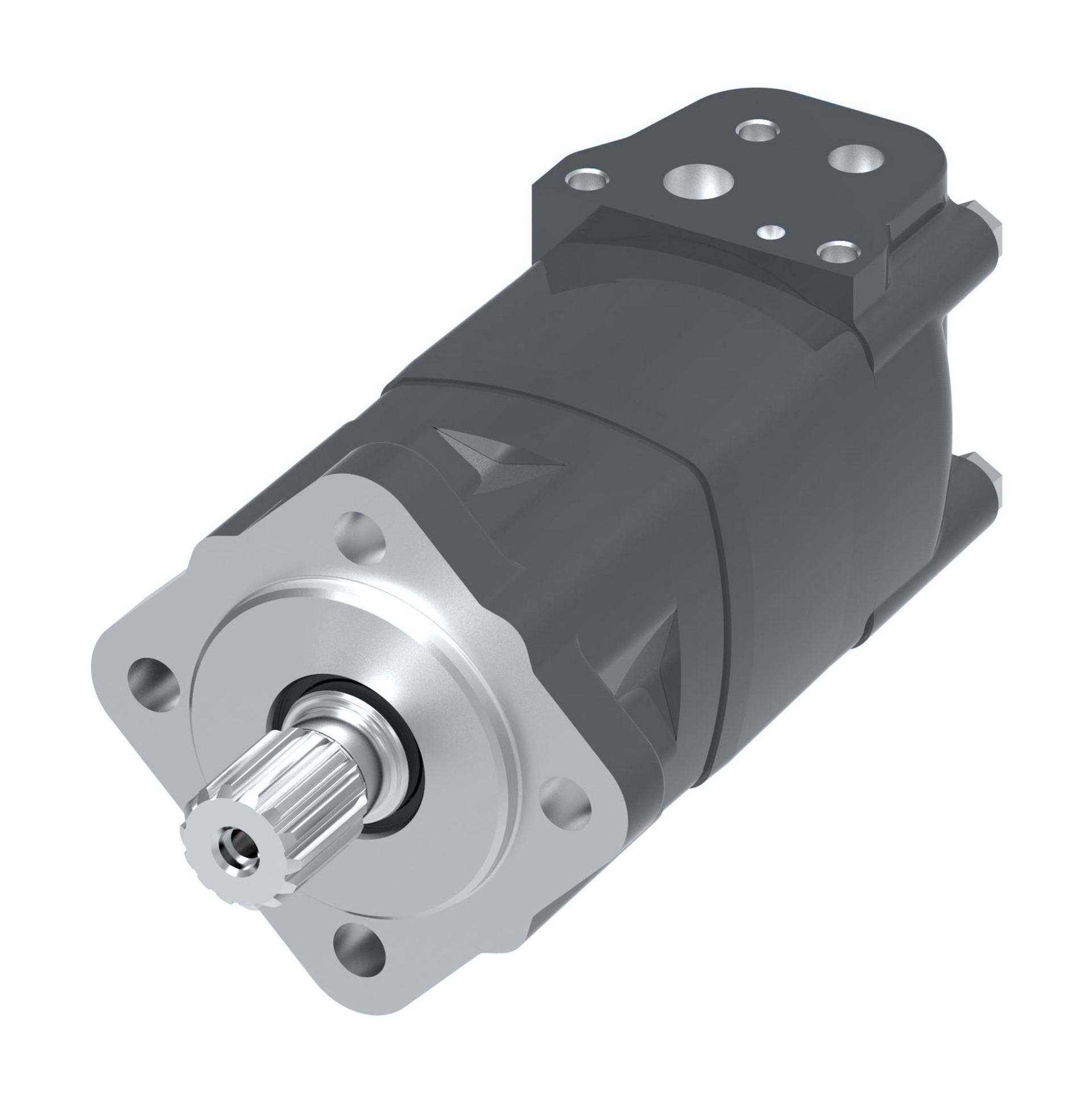

Danfoss Char-Lynn 2000 Series Disc Geroler StandardM02149AH04AE0200010000000AAAAF (RIGHT)

Danfoss Char-Lynn

104-4140-006

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Brake Release Port Dimensionn/a
BrandDanfoss
Check valve functionYes
Design code06
Drain Port DimensionG 1/4
Dust sealStandard
FeatureStandard, wheel or bearingless configurationsLowest pressure drop motor in the industryHighly-efficient Geroler motor provides energy savings
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]244.3 [14.91]
Hydraulic valve functionNone
Main port dimensionPort A: 0.500 inch & Port B: 0.625 inch drilled hole, 3 x M10 x 1.5-6H block mounting threads - Spec. Component
Main port styleSideport - staggered
Main port thread typeManifold
Model CodeM02149AH04AE0200010000000AAAAF
Model CodeM02149AH04AE0200010000000AAAAF
Motor functionStandard
Motor Series2000 Series
Motor Size245
Motor typeStandard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54]
Mounting flange type4 Bolt - Square
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationn/a
PaintedNo
Product Height4.28 in
Product Length/Depth9.61 in
Product TypeDisc Geroler
Product Volume176.04 in³
Product Weight25 lb
Product Width4.28 in
Rear bearing typeTapered roller bearing
Seal Kit9900684-000
SensorNone
Shaft dimensionDia. 1 1/4 inch, 14T, 3/8 - 16 UNC-2B thread in shaft end
Shaft Keyn/a
Shaft SealNBR - Standard
Shaft typeSplined
Special Features AssemblyStandard
Special features hardwareSpec. Component
Sub-brandChar-Lynn
Trade Name2000 Series
Valve systemDisc valve with valve drive
