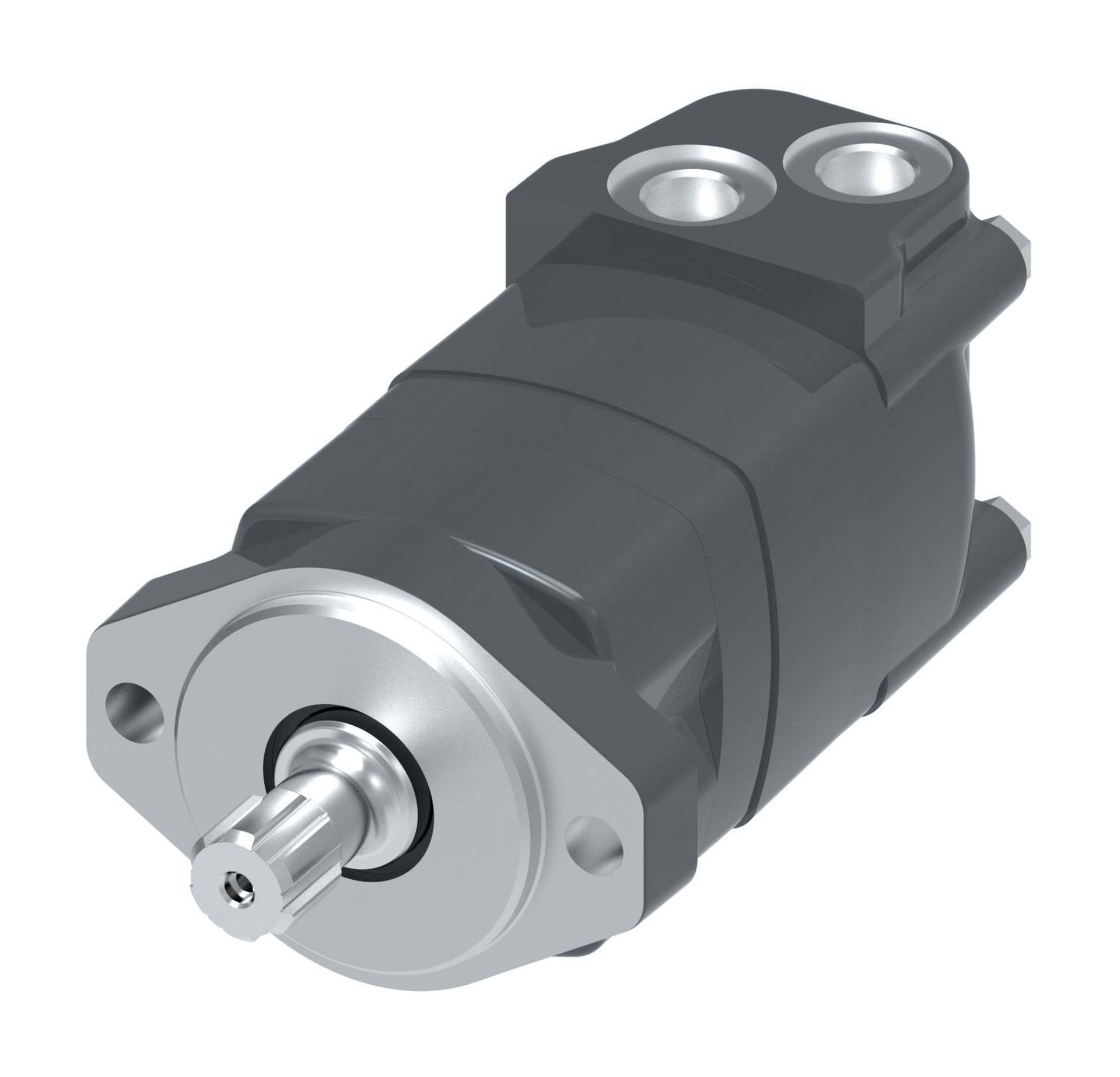

Danfoss Char-Lynn 2000 Series Disc Geroler StandardM02096AC05AG02000130000ABAAAAF (RIGHT)

Danfoss Char-Lynn

104-4576-006

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Brake Release Port Dimensionn/a
BrandDanfoss
Check valve functionYes
Design code06
Drain Port DimensionG 1/4
Dust sealStandard
FeatureStandard, wheel or bearingless configurationsLowest pressure drop motor in the industryHighly-efficient Geroler motor provides energy savings
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]158.1 [9.65]
Hydraulic valve functionNone
Main port dimensionG 1/2
Main port styleSideport - staggered
Main port thread typeBSP
Model CodeM02096AC05AG02000130000ABAAAAF
Model CodeM02096AC05AG02000130000ABAAAAF
Motor functionStandard
Motor Series2000 Series
Motor Size160
Motor typeStandard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A
Mounting flange type2 Bolt - A
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationn/a
PaintedNo
Product Height4.33 in
Product Length/Depth8.74 in
Product TypeDisc Geroler
Product Volume195.276 in³
Product Weight22 lb
Product Width5.16 in
Rear bearing typeTapered roller bearing
Seal Kit9900876-000
SensorNone
Shaft dimensionDia. 1 inch, 6B SAE J499, 1/4 - 20 UNC-2B thread in shaft end
Shaft Keyn/a
Shaft SealNBR - High pressure
Shaft typeSplined
Special Features AssemblyDirection of rotation
Special features hardwareStandard
Sub-brandChar-Lynn
Trade Name2000 Series
Valve systemDisc valve with valve drive
