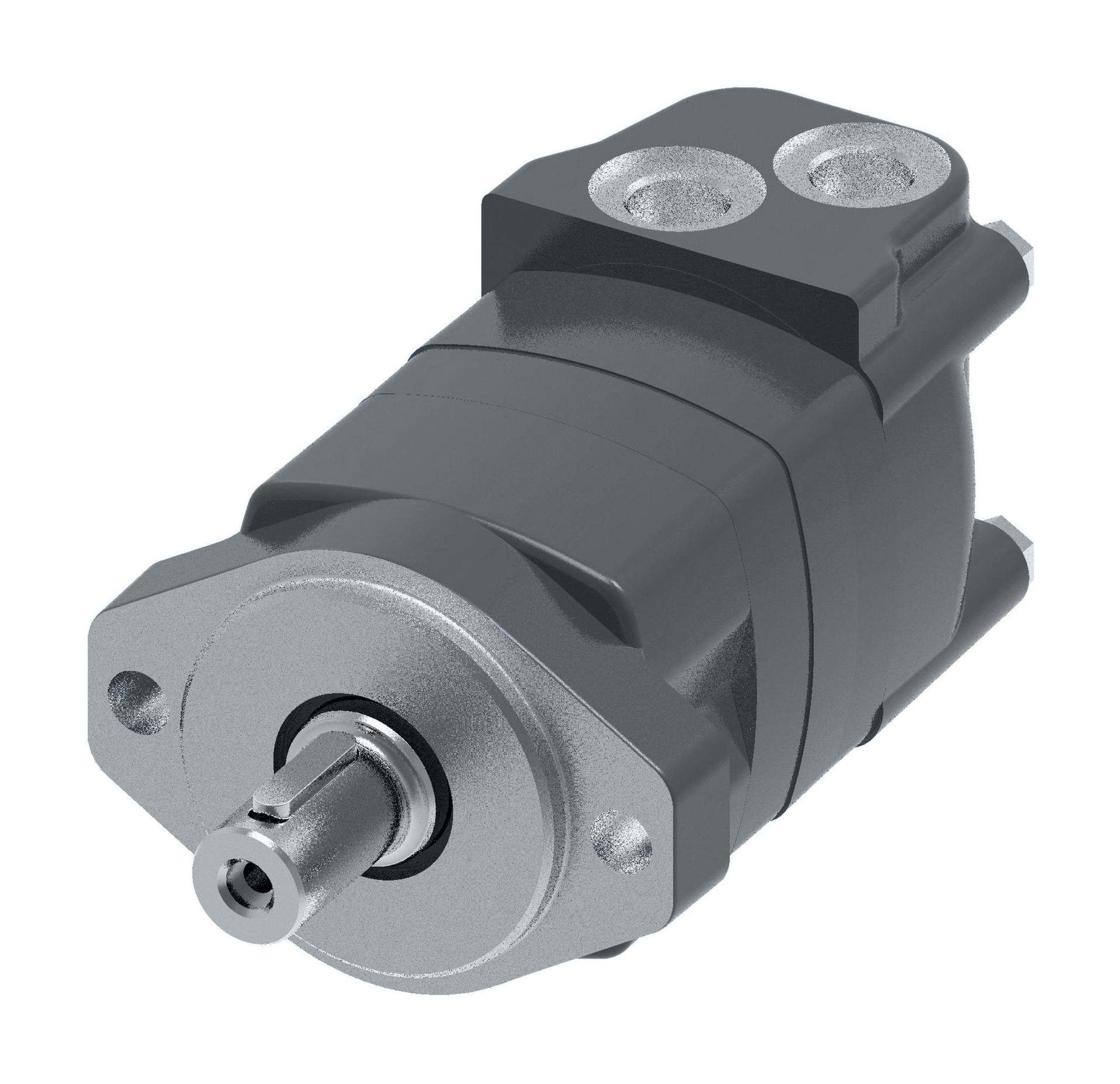

Danfoss Char-Lynn 2000 Series Disc Geroler StandardM02040AC19AG0200010000000ABAAF (RIGHT)

Danfoss Char-Lynn

104-4927-006

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Brake Release Port Dimensionn/a
BrandDanfoss
Check valve functionYes
Design code06
Drain Port DimensionG 1/4
Dust sealStandard
FeatureStandard, wheel or bearingless configurationsLowest pressure drop motor in the industryHighly-efficient Geroler motor provides energy savings
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]66.5 [4.06]
Hydraulic valve functionNone
Main port dimensionG 1/2
Main port styleSideport - staggered
Main port thread typeBSP
Model CodeM02040AC19AG0200010000000ABAAF
Model CodeM02040AC19AG0200010000000ABAAF
Motor functionStandard
Motor Series2000 Series
Motor size65
Motor typeStandard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.6 x 6.4, 106.4, 13.6 [3.25 x 0.25, 4.19, 0.54] SAE A
Mounting flange type2 Bolt - A
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationPrimer, Black, Low gloss
PaintedYes
Product Height6.96 in
Product Length/Depth9.23 in
Product TypeDisc Geroler
Product Volume331.483 in³
Product Weight19.4 lb
Product Width5.16 in
Rear bearing typeTapered roller bearing
Seal Kit9900684-000
SensorNone
Shaft dimensionDia. 25 mm, M8 x 1.25-6H thread in shaft end
Shaft KeyRectangular key, 8 x 7 x 32 mm
Shaft SealNBR - Standard
Shaft typeStraight
Special Features AssemblyStandard
Special features hardwareStandard
Sub-brandChar-Lynn
Trade Name2000 Series
Valve systemDisc valve with valve drive
