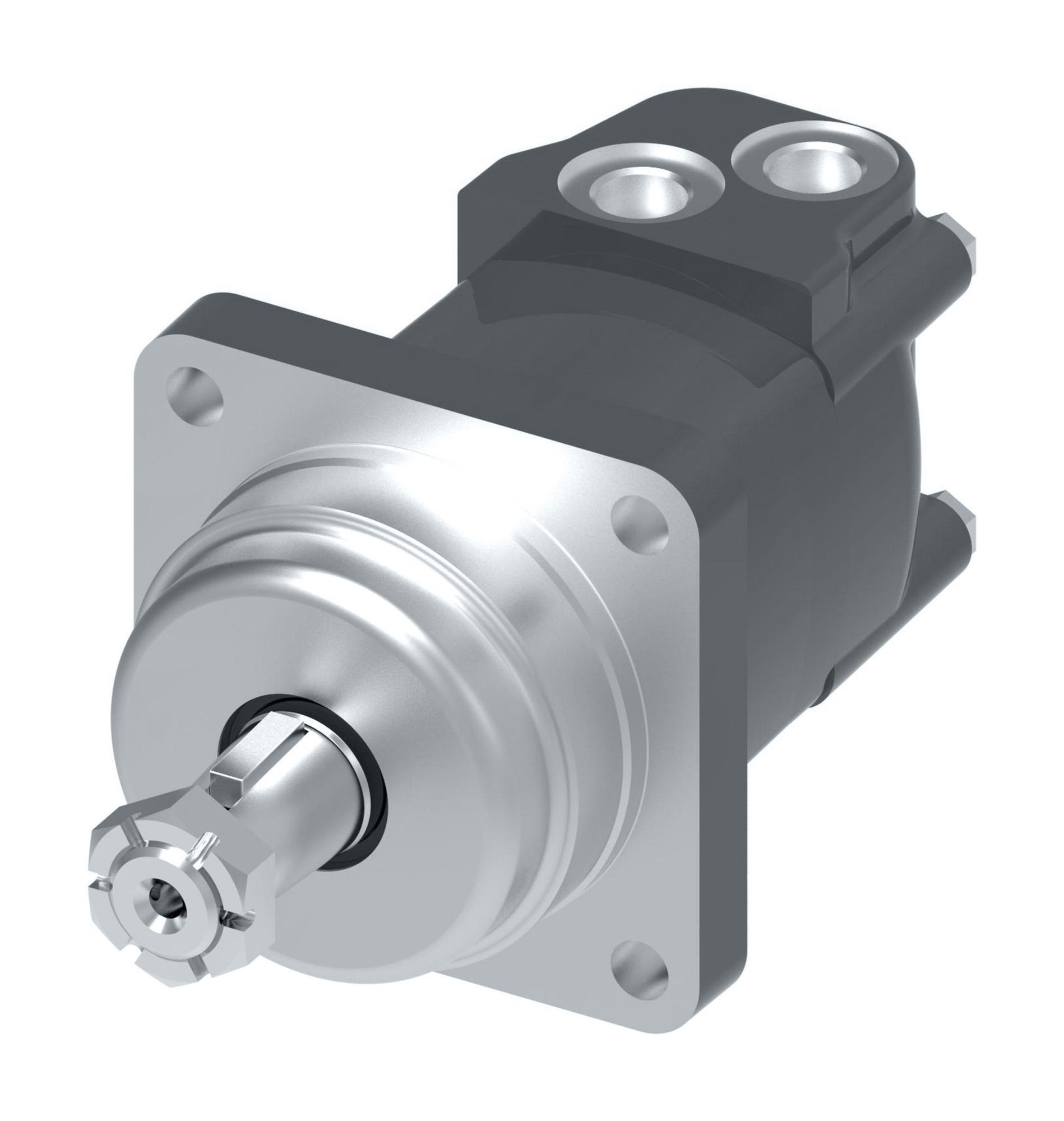

Danfoss Char-Lynn 2000 Series Disc Geroler WheelM02096AB03AG0200010000000ABAAF (RIGHT)

Danfoss Char-Lynn

105-1339-006

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Description
Brake Release Port Dimensionn/a
BrandDanfoss
Check valve functionYes
Design Code06
Drain Port DimensionG 1/4
Dust sealStandard
FeatureStandard, wheel or bearingless configurationsLowest pressure drop motor in the industryHighly-efficient Geroler motor provides energy savings
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]158.1 [9.65]
Hydraulic valve functionNone
Main port dimensionG 1/2
Main port styleSideport - staggered
Main port thread typeBSP
Model CodeM02096AB03AG0200010000000ABAAF
Model CodeM02096AB03AG0200010000000ABAAF
Motor functionStandard
Motor Series2000 Series
Motor Size160
Motor typeWheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]108.0 x 6.4, 147.6, 13.6 [4.25 x 0.25, 5.81, 0.54] Rear: 127.0 x 3.3, 147.6, 13.6 [5.00 x 0.13, 5.81, 0.54]
Mounting Flange Type4 Bolt - Wheel
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationPrimer, Black, Low gloss
PaintedYes
Product Height5.28 in
Product Length/Depth7.41 in
Product TypeDisc Geroler
Product Volume206.579 in³
Product Weight22 lb
Product Width5.28 in
Rear bearing typeTapered roller bearing
Seal Kit9900684-000
SensorNone
Shaft dimensionDia. 1 1/4 inch, 1:8 SAE J501, 1 - 20 UNEF-2A thread in shaft end
Shaft KeySquare key, 5/16 x 1 inch
Shaft SealNBR - Standard
Shaft TypeTAPERED
Special Features AssemblyStandard
Special features hardwareStandard
Sub-brandChar-Lynn
Trade Name2000 Series
Valve systemDisc valve with valve drive
