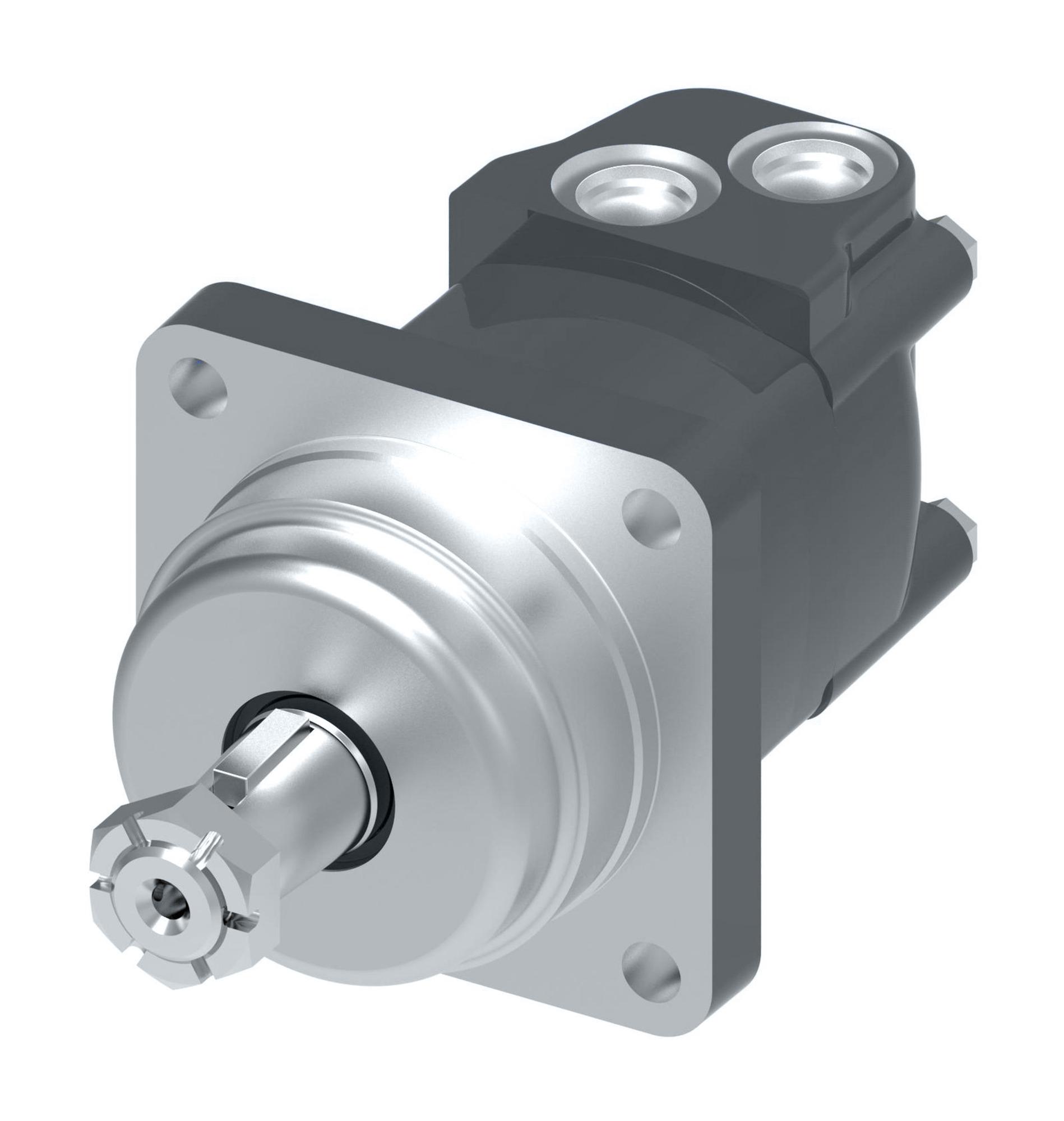

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AB03AA0100010000000AFAAF

105-1361-006

Model code: M02080AB03AA0100010000000AFAAF

This product has been discontinued.

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: 2000 series single-speed motors, Danfoss orbital motor quick selector

Tools

Characteristic	Value	Description
Model Code		M02080AB03AA0100010000000AFAAF
Motor Series		2000 Series
Valve system		Disc valve with valve drive
Orbital gearwheel set type		Geroler
Motor Size		130
Geometric displacement [cm3/r [in3/r]]		130.6 [7.97]
Motor type		Wheel
Motor function		Standard
Mounting flange type		4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]		108.0 x 6.4, 147.6, 13.6 [4.25 x 0.25, 5.81, 0.54] Rear: 127.0 x 3.3, 147.6, 13.6 [5.00 x 0.13, 5.81, 0.54]
Shaft dimension		Dia. 1 1/4 inch, 1:8 SAE J501, 1 - 20 UNEF-2A thread in shaft end
Shaft Key		Square key, 5/16 x 1 inch
Main port thread type		UN / UNF
Main port style		Sideport - staggered
Main port dimension		7/8 - 14 UNF-2B SAE O-Ring port
Drain Port Dimension		7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension		n/a
Painted		Yes
Paint information		Primer, Black, Low gloss
Special Features Assembly		Standard
Dust seal		Standard
Shaft Seal		NBR - Standard
Seal Kit		61258-000
Front bearing type		Tapered roller bearing
Rear bearing type		Tapered roller bearing
Orbital gearwheel set		Standard
Check valve function		Yes
Hydraulic valve function		None
Sensor		None
Packaging		Bulk box
Name Tag		Danfoss name tag
Design code		06
Brand	DANFOSS	Danfoss
Product height in		5.280
Product height mm		134.112
Product length in		7.410
Product length mm		188.214
Product width in		5.280
Product width mm		134.112
Sub brand	CHAR-LYNN	Char-Lynn
