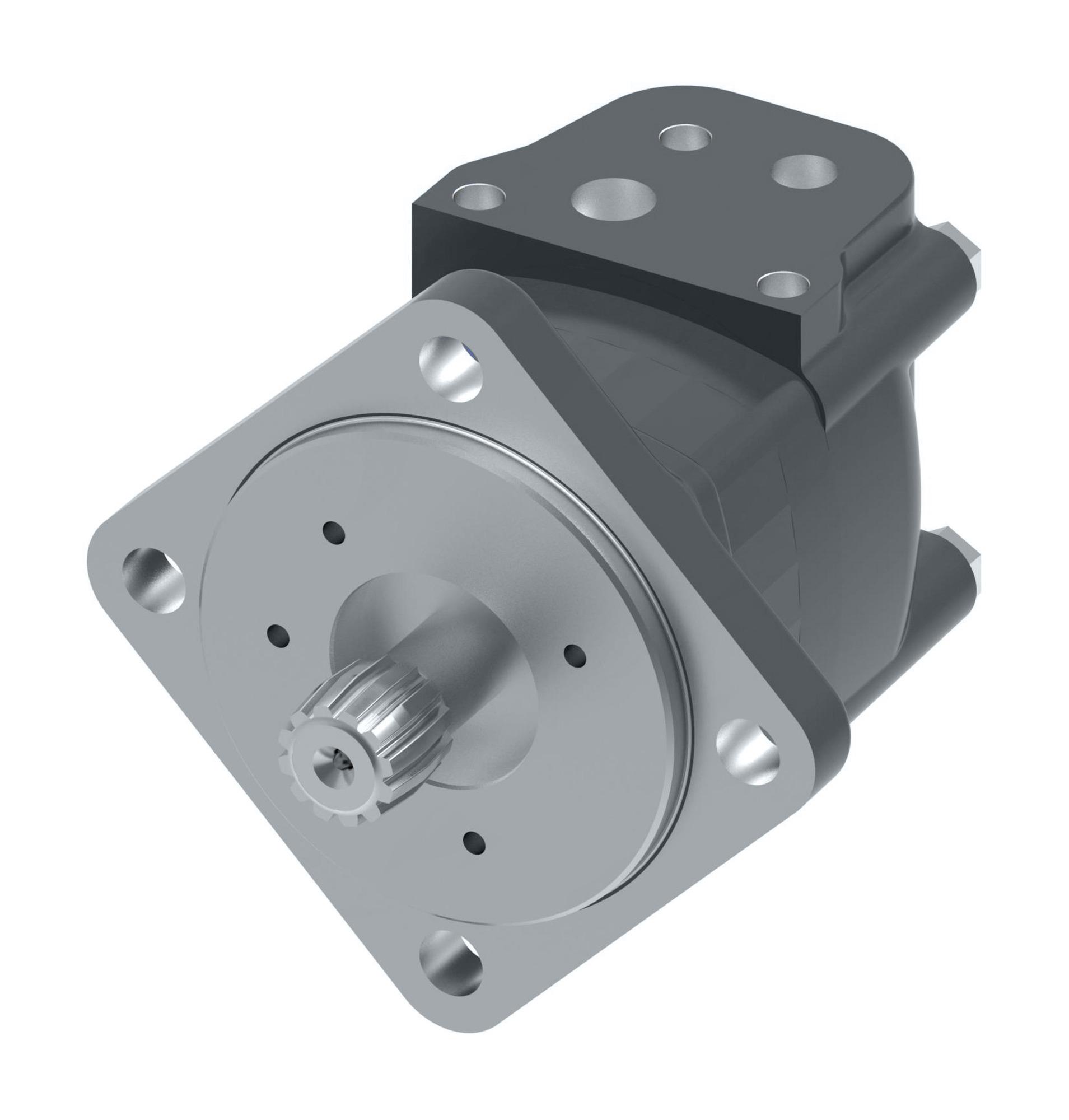

Danfoss Char-Lynn

106-1072-006

This product has been discontinued.

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Characteristic	Value
Brake Release Port Dimension	n/a
Brand	Danfoss
Check valve function	Yes
Design code	06
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Dust seal	n/a
Feature	Standard, wheel or bearingless configurationsLowest pressure drop motor in the industryHighly-efficient Geroler motor provides energy savings
Front bearing type	n/a
Geometric displacement [cm3/r [in3/r]]	101.6 [6.20]
Hydraulic valve function	None
Main port dimension	Port A: 0.500 inch & Port B: 0.625 inch drilled hole, 3 x 3/8 - 16 UNC-2B block mounting threads
Main port style	Sideport - staggered
Main port thread type	Manifold
Model Code	M02062AD00AB0100010000000AAAAF
Model Code	M02062AD00AB0100010000000AAAAF
Motor function	Standard
Motor Series	2000 Series
Motor size	100
Motor type	Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	101.6 x 6.4, 127.0, 13.6 [4.00 x 0.25, 5.00, 0.54] - Spec. Component
Mounting flange type	4 Bolt - Short
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	n/a
Painted	No
Product Height	4.69 in
Product Length/Depth	5.22 in
Product Type	Disc Geroler
Product Volume	114.82 in³
Product Weight	16.5 lb
Product Width	4.69 in
Rear bearing type	n/a
Seal Kit	61259-000
Sensor	None
Shaft dimension	n/a
Shaft Key	n/a
Shaft Seal	n/a
Shaft type	None
Special Features Assembly	Standard
Special features hardware	Spec. Component
Sub-brand	Char-Lynn
Trade Name	2000 Series
Valve system	Disc valve with valve drive
