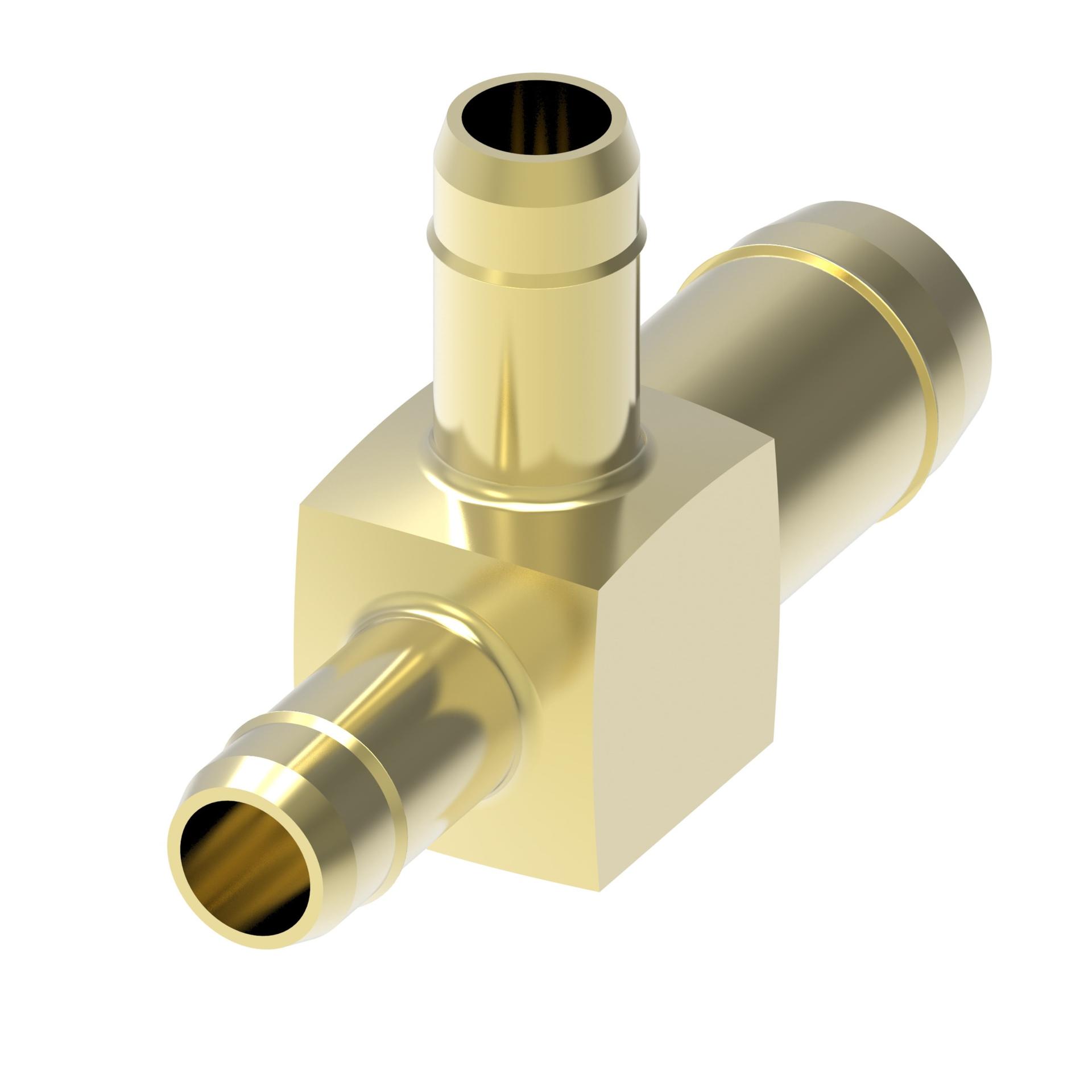

Tee/Y Adapters 1064X6X8X6 (RIGHT)

Danfoss

1064X6X8X6

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Tee
ApplicationTemperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems
BrandDanfoss
End gender 1Male
End gender 2Male
End Gender 3Male
End Size 13/8 IN
End Size 21/2 IN
End Size 31/2 IN
End type 1Barb
End type 2Barb
End Type 3Barb
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Finish/platingNickel
Item typeBarb Male/Barb Male/Barb Male Tee Adapter
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight1.02875 lb
Packaged Width6.75 in
Product Height1 in
Product Length/Depth1.52 in
Product materialBrass
Product TypeUnion Tee
Product Volume.044 in³
Product Weight.029 lb
Product Width.029 in
Sub-brandNone
Thread sealantNo
Trade NameMini-Barb
Tube OD 1.19 in
Tube OD 2.31 in
Tube OD 3.19 in
UNSPSC40183100
UPC725975730171
Working temperature - max250 °F
Working temperature - min-40 °F
