Aeroquip by Danfoss
11.097-15-8

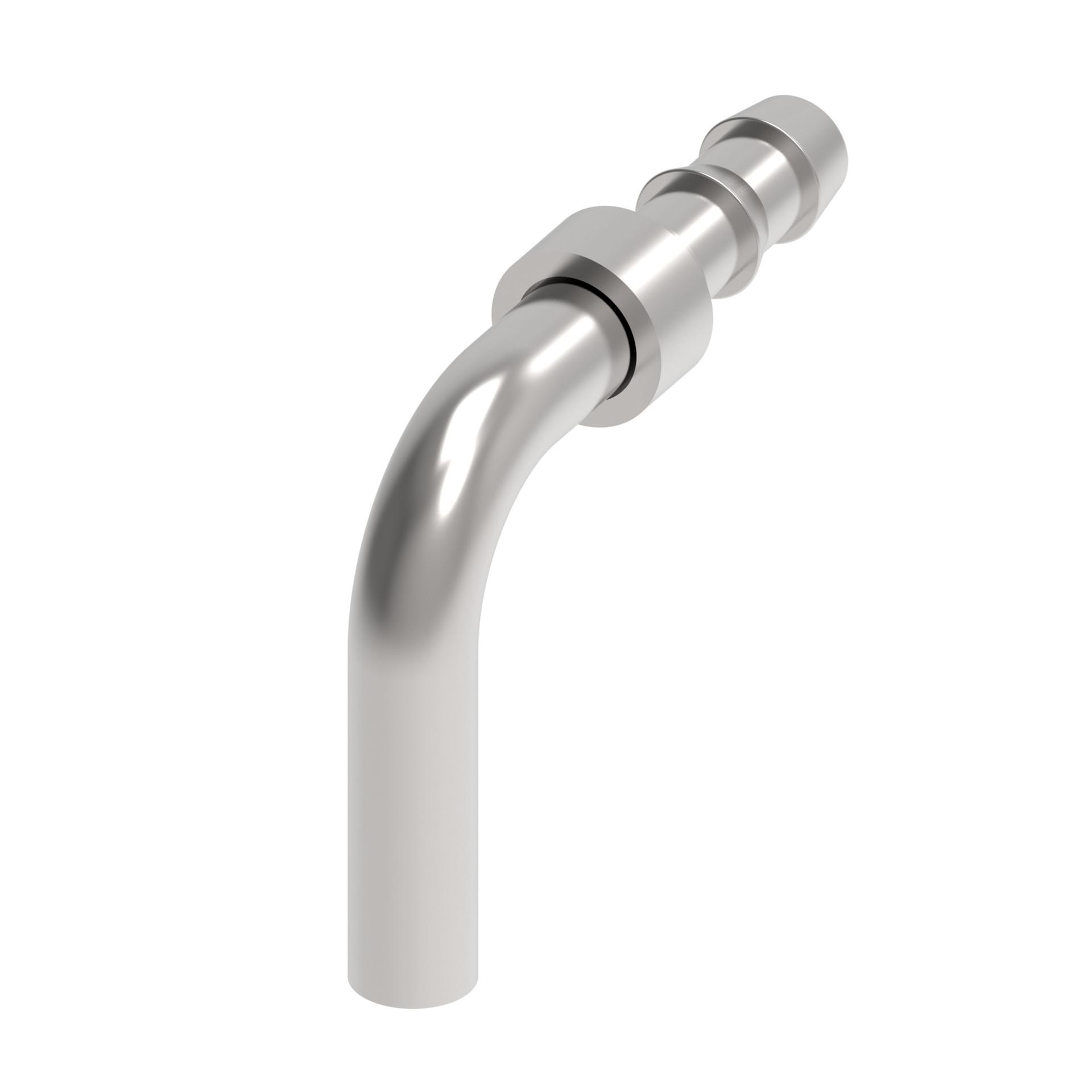

Ftng (reus), sktls/R6
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | 90 Degree |
| Application | General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID | .5 in |
| Compatible hoses | 2556 |
| Construction style | Crimp |
| Drop dimension | 1.97 |
| End type 2 | Line/Hose/Tube |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life |
| Finish/plating | DURA-KOTE |
| Hose cut-off factor | 1.44 in |
| Hose dash size | -8 |
| Inside diameter | .39 in |
| Item type | Nipple Assembly |
| Product Diameter | .59 in |
| Product Height | 2.36 in |
| Product Length/Depth | 2.76 in |
| Product Type | Crimp Hose Fittings |
| Product Volume | 3.843 in³ |
| Product Weight | .13 lb |
| Product Width | .59 in |
| Product material | Carbon Steel |
| Sub-brand | None |
| Thread sealant | No |
| Trade Name | 11.097 Series |
