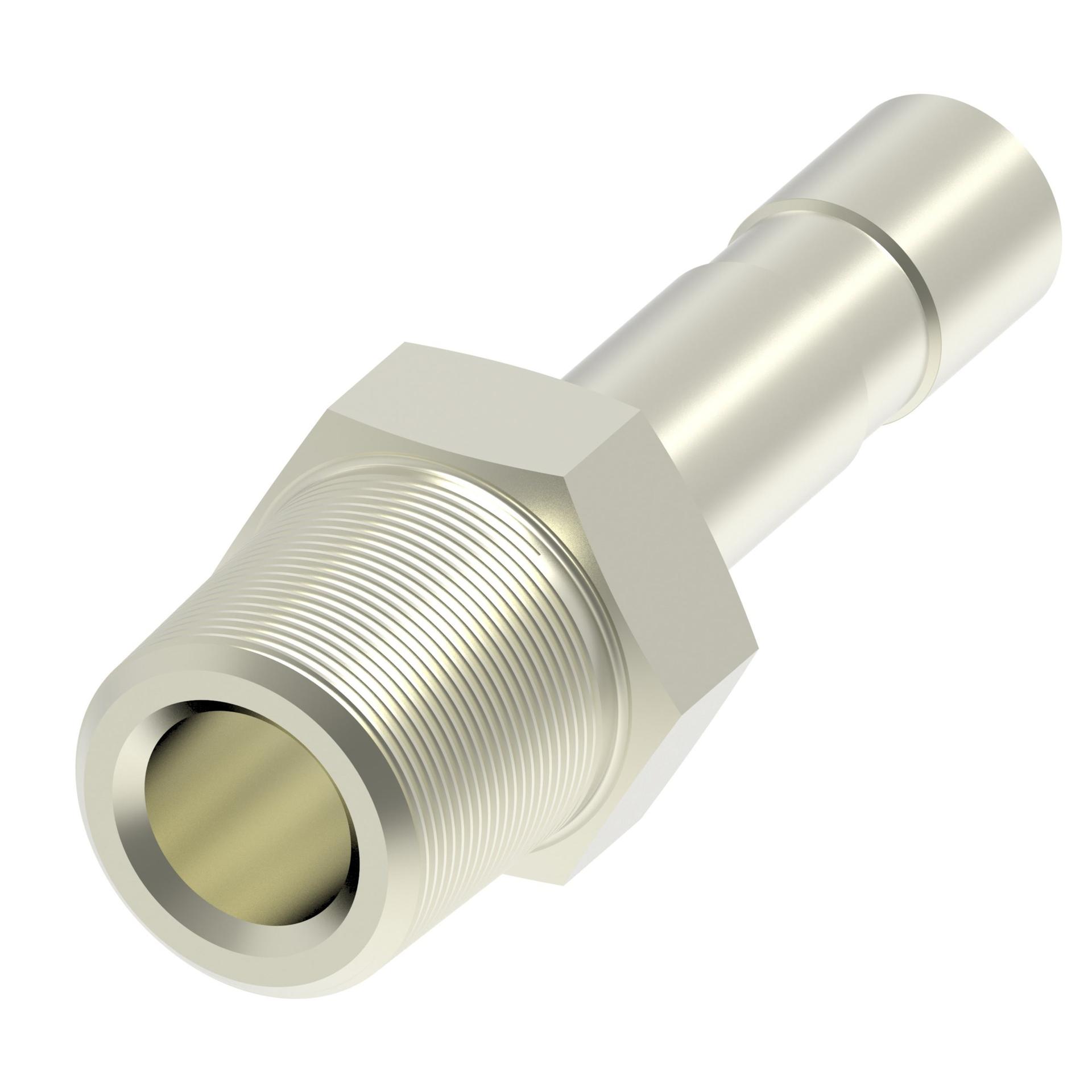

Straight Adapters 1180X2 (RIGHT)

Danfoss

1180X8

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
ApplicationCompressed air, pneumatic
BrandDanfoss
End gender 1Male
End gender 2Female
End Size 11/2 IN
End Size 21/2 IN
End type 1NPTF
End type 2Push to Connect
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Finish/platingNickel
Hex Size 1.74 in
Item typeBSPP Male to Push to Connect Straight Adapters
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height.74 in
Product Length/Depth1.65 in
Product materialBrass
Product TypeStem Adapter
Product Volume.904 in³
Product Weight.079 lb
Product Width.74 in
Sub-brandNone
Thread sealantNo
Thread Size 13/8
Trade NamePush>Connect
Tube OD 1.5 in
Tube OD 2.5 in
UNSPSC40183100
UPC725975036761
Working pressure250 Psi
Working temperature - max160 °F
