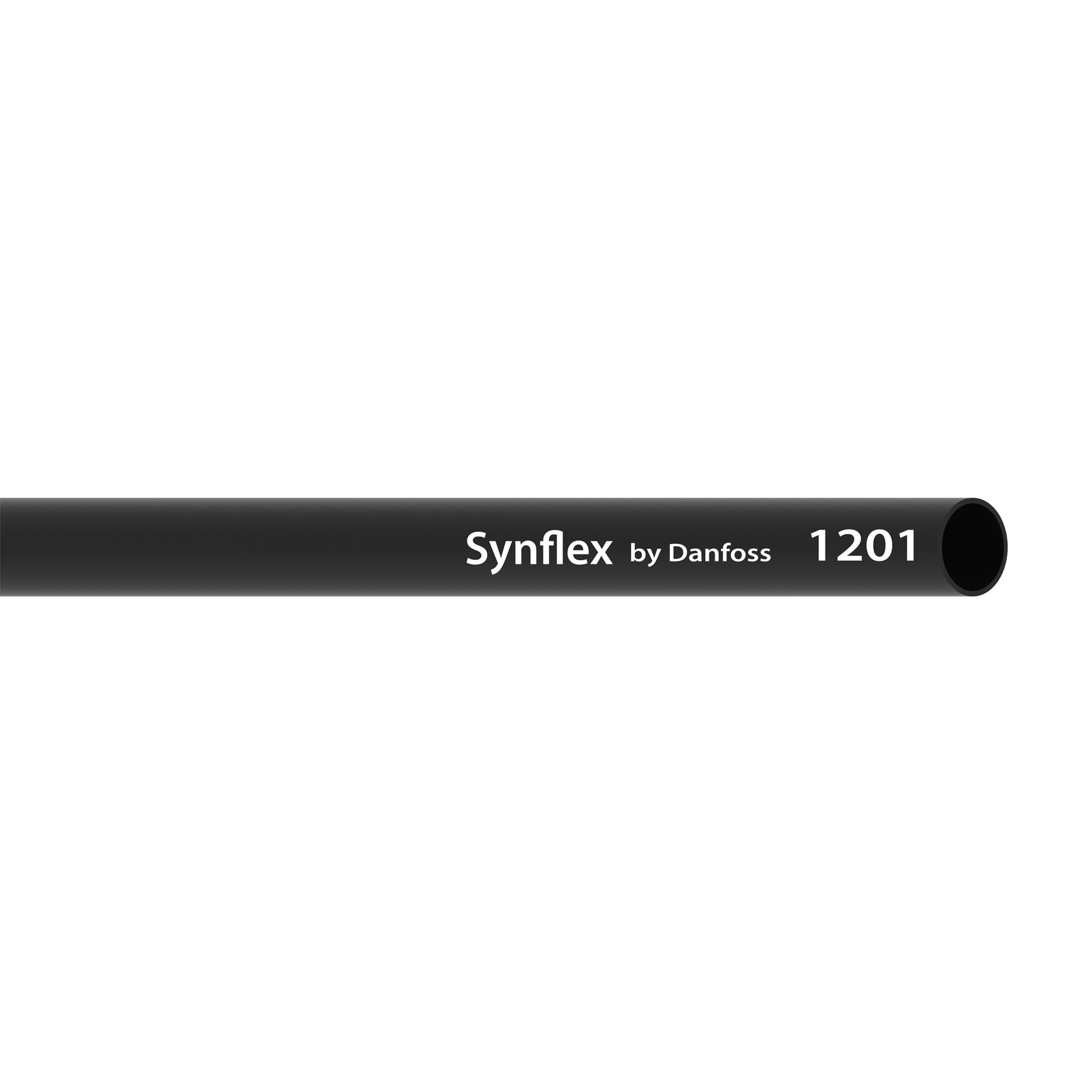

Synflex by Danfoss
1201-M100A-100
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
1201-M100A-100
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Application | Suitable for use in pneumatic control installations and low pressure/low temperature fluidics where low cost, flexible connections are made. | |
| Bend radius - min | 1.97 in | |
| Brand | Synflex by Danfoss | |
| Burst pressure | 290 Psi | |
| Color | Black | |
| Conductivity | Conductive | |
| Construction | Extruded | |
| Cover material | Density Polyethylene | |
| Dash size | -10 | |
| Feature | UV resistance last longer than all competitorsHundreds of styles to choose fromRugged enough to stand up to the toughest applications | |
| Inside diameter | .31 in | |
| Lay line style | Ink Jet | |
| Outside diameter | .39 in | |
| Product Height | .39 in | |
| Product Length/Depth | 100 ft | |
| Product Type | Thermoplastic Specialty Hose and Tubing | |
| Product Volume | 182.52 in³ | |
| Product Weight | .18 lb | |
| Product Width | .39 in | |
| Reinforcement material | Polyethylene | |
| Sub-brand | None | |
| Trade Name | 1201 Series | |
| Tube material | Polyethylene | |
| Working pressure | 72.5 Psi | |
| Working temperature - max | 176 °F | |
| Working temperature - min | -40 °F |
