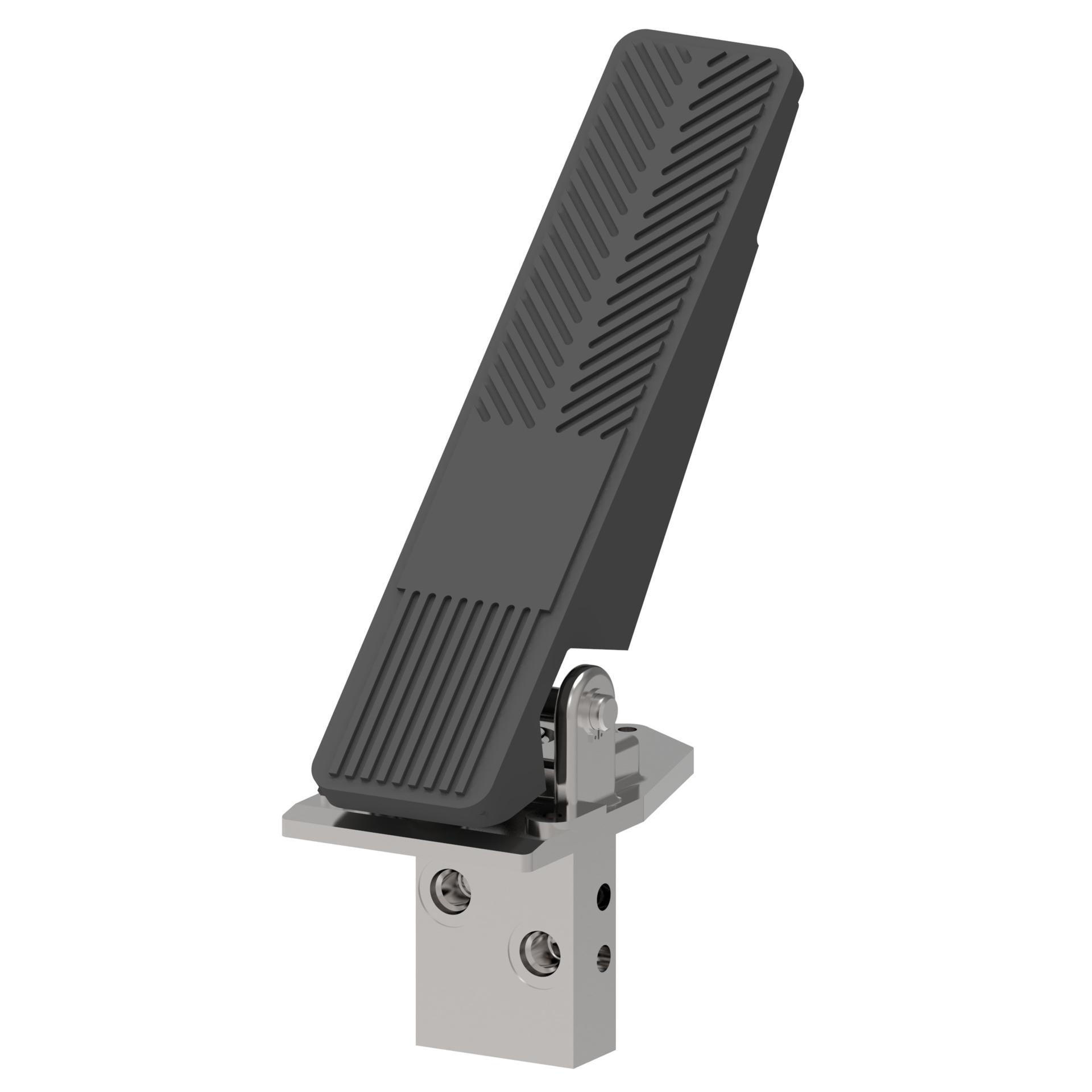

![Danfoss HRC Hydraulic Remote Controls 12010272401 [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F318542%2FID463022680240-0101_preview.jpg&w=1920&q=75)
Product specifications
Characteristic | Value |
|---|---|
| Application | Excavator |
| Auxiliary valve | No |
| Bellows option | Standard |
| Body painting | Black |
| Brand | Danfoss |
| Configuration and body type | Uni-directional(push) single |
| Damping option | No damping |
| Design code | A |
| Foot plate option | Single uni-directional pedal |
| Identification | No |
| Installation | 78[3.07]x117[4.60] 6[0.23] dia |
| Max_flow_rate_GPM | 2.641 |
| Max_flow_rate_LPM | 10 |
| Max_pressure_rate_BAR | 100 |
| Max_pressure_rate_PSI | 1450.377 |
| Operating type torque | Spring TQ 0.68Nm[0.50lbf ft] |
| Output pressure port 1 2 | A48, 5.8[84.1]/25.0bar[362.5] |
| Output pressure port 3 4 | Not applicable |
| Port thread and sealing | BSPP G1/4 O-ring sealing |
| Product series | Danfoss HRC Pedal |
| Special_features | No |
