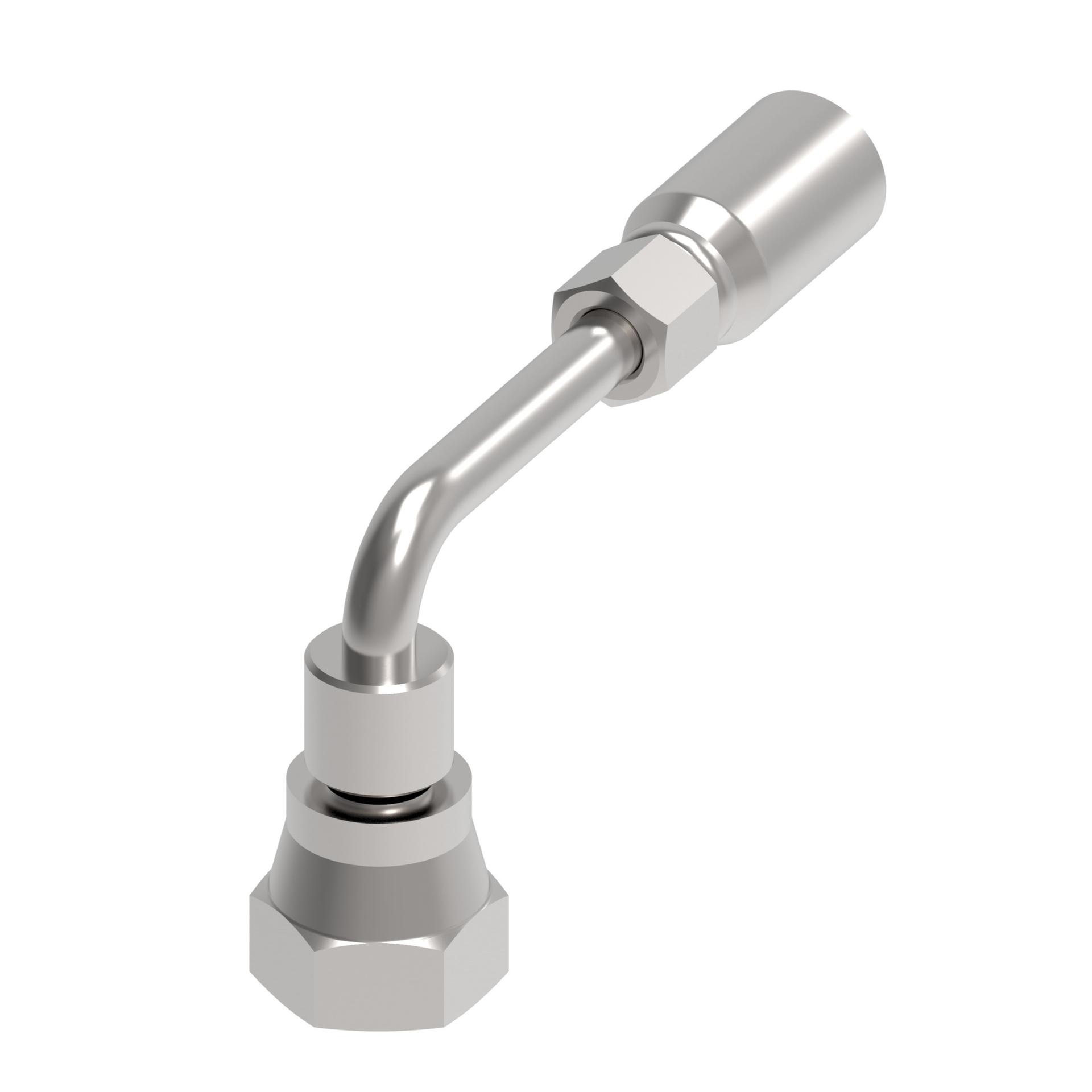

Hose Fittings 04E-74P (RIGHT)

Danfoss

12E-82P

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
BrandDanfoss
Compatible hose ID.75 in
Compatible hosesH009, H209, H243, H265, H275, H277, H285, H435, H436, S-TW, SC-TW
Compatible tube OD.75 in
Construction styleCrimp
Drop dimension2.49
End gender 1Female
End gender 2Female
End Size 13/4 IN
End Size 23/4 IN
End type 1BSPP
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Finish/platingZinc; Clear Trivalent Chromate
Hex Size 11.25 in
Hex Size 21 in
Hose cut-off factor2.79 in
Hose dash size-12
Inside diameter.58 in
Item typeFitting Assembly
Outside diameter1.25 in
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height3.46 in
Product Length/Depth4.63 in
Product materialCarbon Steel
Product TypeCrimp Hose Fittings
Product Volume20.025 in³
Product Weight.625 lb
Product Width1.25 in
Sub-brandNone
Thread sealantNo
Thread Size 1G 3/4-14
Trade NameE Series
UNSPSC27121707
UPC757522222839
