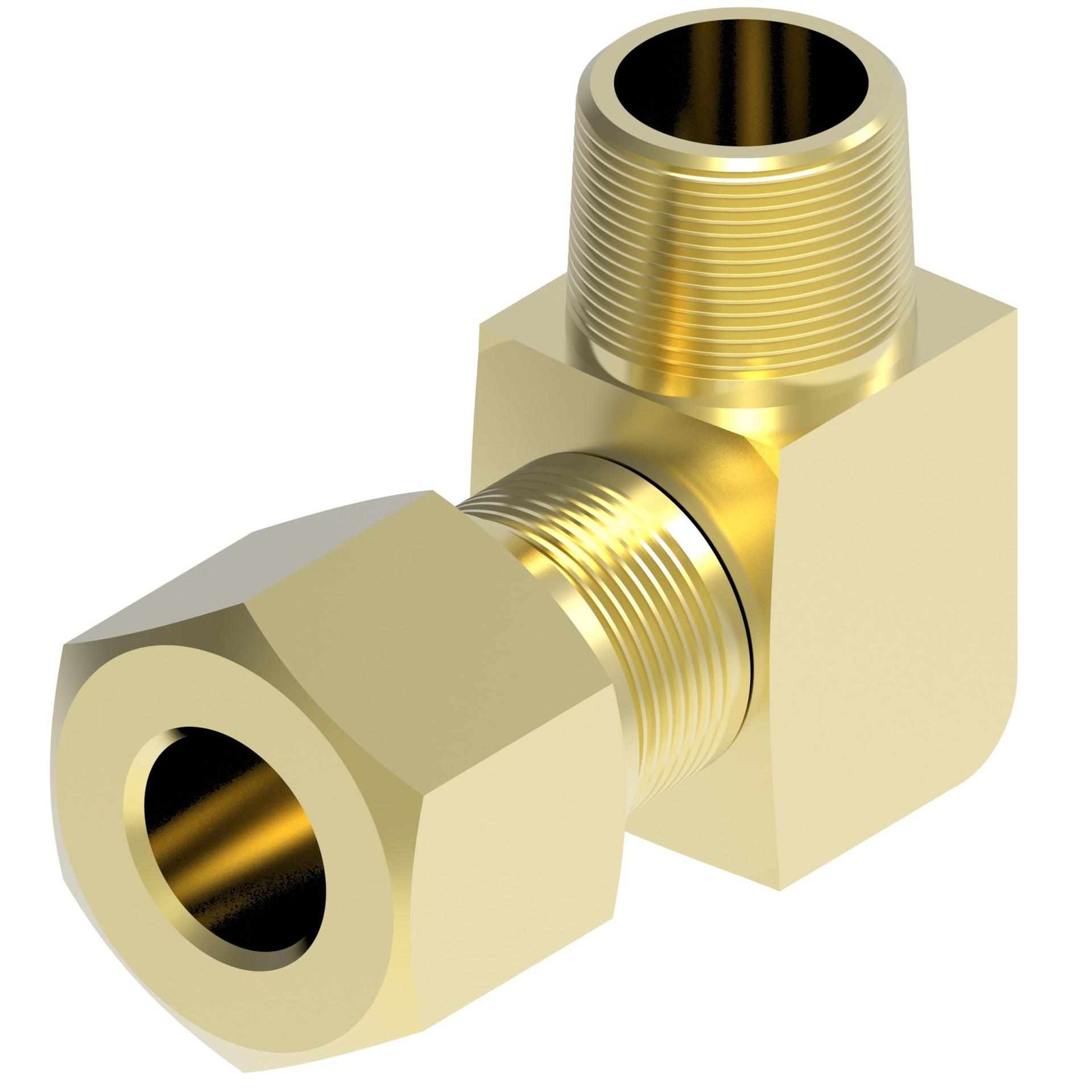

Elbow Adapters 1469X (RIGHT)

Danfoss

1469X6LZ

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
ApplicationAir brake systems
BrandDanfoss
Certification(s)SAE 100202BA
Drop dimension1.45
End gender 1Male
End gender 2Female
End Size 11/4 IN
End Size 23/8 IN
End type 1NPTF
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Hex Size 1.59 in
Hex Size 2.63 in
Item typeNPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height1.763 in
Product Length/Depth1.363 in
Product materialBrass
Product Type90˚ Male Elbow
Product Volume1.502 in³
Product Weight.142 lb
Product Width.625 in
Sub-brandNone
Thread sealantNo
Thread Size 11/4 - 18
Trade NameAir Brake Connectors for Nylon Tubing
Tube OD 1.31 in
Tube OD 2.39 in
UNSPSC40183100
UPC725975749906
Working pressure150 Psi
Working temperature - max200 °F
Working temperature - min-40 °F
