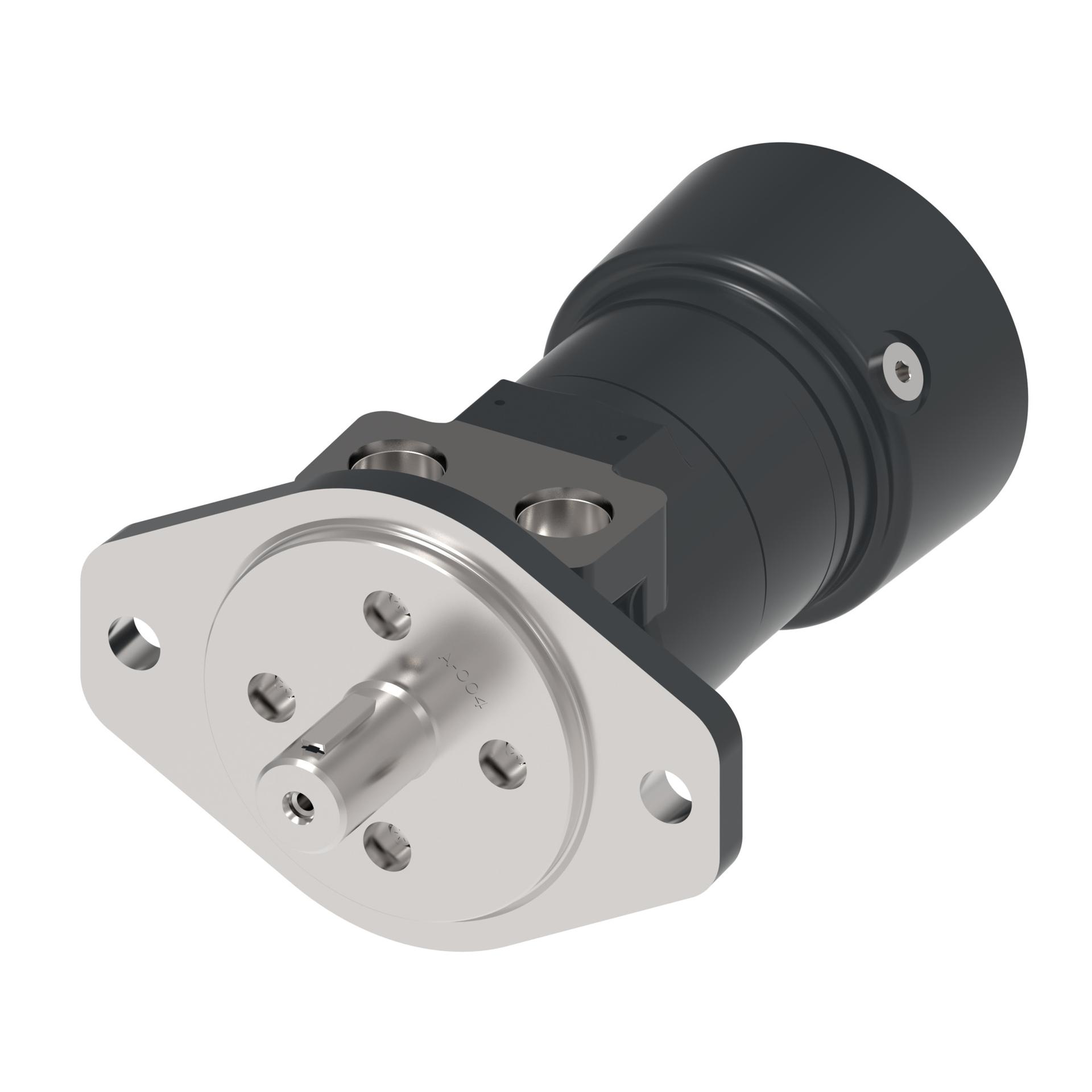

Danfoss Char-Lynn T series with brake 2-bolt B_side port aligned (RIGHT)

Danfoss Char-Lynn

185-3131-002

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Brake Release Port Dimension7/16 - 20 UNF-2B SAE O-Ring Port
BrandDanfoss
Check valve functionNo
Design code2
Drain Port DimensionNone
Dust sealStandard
FeatureCompact yet powerfulExtended bearing lifeIncreased shaft seal
Front bearing typeJournal bearing
Geometric displacement [cm3/r [in3/r]]195 [11.9]
Hydraulic valve functionNone
Main port dimension7/8 - 14 UNF-2B SAE O-Ring port
Main port styleSideport - aligned
Main port thread typeUN / UNF
Model CodeMTB119DA02AA00A0070000AB0AA00B
Model CodeMTB119DA02AA00A0070000AB0AA00B
Motor functionBrake - Low release pressure, Higher efficiency and smooth running (Low speed valving)
Motor SeriesT Series
Motor Size195
Motor typeMotor - Brake
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]101.6 x 6.1, 146.1, 14.4 [4.00 x 0.24, 5.75, 0.57] SAE B
Mounting flange type2 Bolt - B
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingNo data available
Paint informationPrimer, Black, Low gloss
PaintedYes
Product Height5.27 in
Product Length/Depth10.35 in
Product TypeSpool Geroler
Product Volume229.087 in³
Product Weight13 lb
Product Width4.2 in
Rear bearing typeJournal bearing
Seal KitNo data available
SensorNone
Shaft dimensionDia. 1 inch, SAE 6B, 1/4 - 20 UNC-2B thread in shaft end
Shaft Keyn/a
Shaft SealHNBR - High pressure
Shaft typeSplined
Special Features AssemblyStandard
Special features hardwareStandard
Sub-brandChar-Lynn
Trade NameT Series with Brake
Valve systemSpool valve
