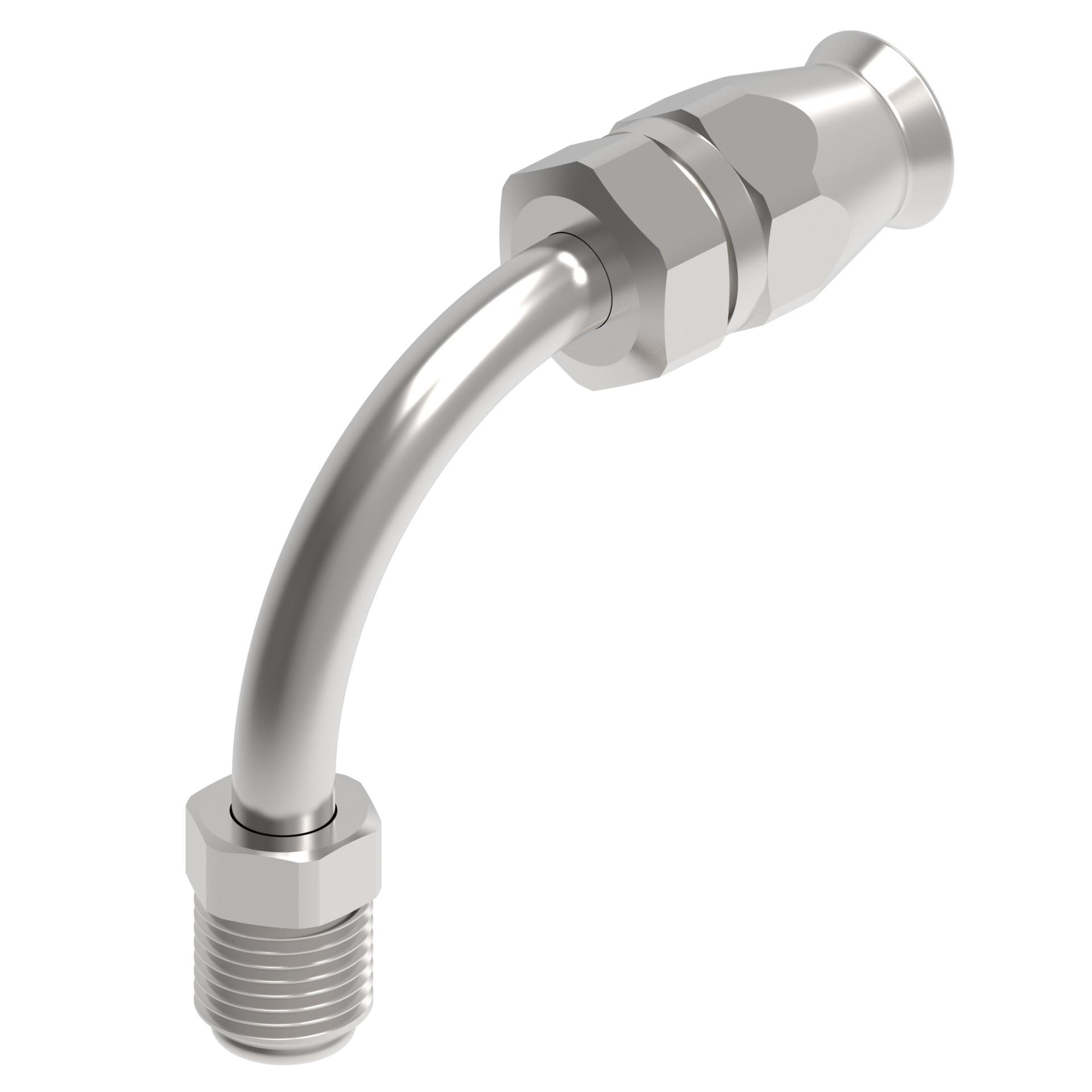

Hose Fittings 190950-4S [RIGHT]

Aeroquip by Danfoss

190950-12S

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Description
Angle (shape)90 Degree
BrandAeroquip by Danfoss
Compatible hose ID.75 in
Compatible hoses2807, FC465, S-TW
Compatible tube OD.75 in
Construction styleReusable
Drop dimension2.35
End gender 1Male
End Size 11 1/16 IN
End type 1SAE
End type 2Line/Hose/Tube
FeatureFit for wide range of applicationsDurable and dependableCut assembly times and boost production
Finish/platingDURA-KOTE
Hex Size 11.06 in
Hex Size 21.12 in
Hose cut-off factor2.07 in
Hose dash size-12
Inside diameter.59 in
Item typeFitting Assembly
Outside diameter1.12 in
Packaged Height5 in
Packaged Length8 in
Packaged Volume160 in³
Packaged Weight1.38 lb
Packaged Width4 in
Product Height2.91 in
Product Length/Depth3.26 in
Product materialCarbon Steel
Product TypeReusable Hose Fittings
Product Volume10.625 in³
Product Weight.38 lb
Product Width1.12 in
Sub-brandNone
Thread sealantNo
Thread Size 11 1/16-16
Trade Name190950 Series
