Aeroquip by Danfoss
1GA6MB6
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

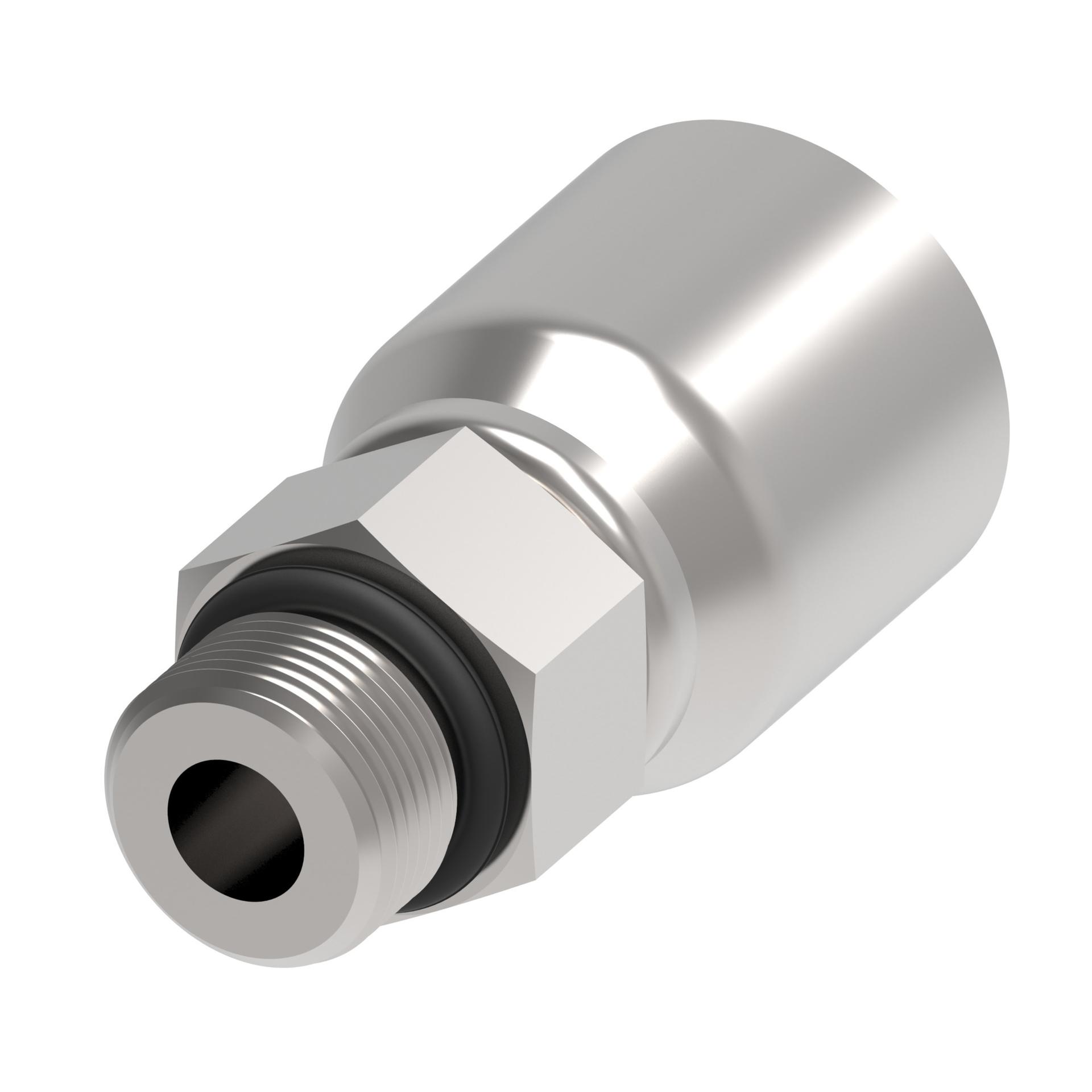

1GA6MB6
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID | .375 in |
| Compatible hoses | 2583, 2661, FC318, FC466, FC498, FC598, FC619, FC699 |
| Construction style | Crimp |
| End gender 1 | Male |
| End Size 1 | 9/16 IN |
| End type 1 | ORB |
| End type 2 | Line/Hose/Tube |
| Feature | Dura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life |
| Finish/plating | Dura-Kote |
| Hex Size 2 | .69 in |
| Hose cut-off factor | 1 in |
| Hose dash size | -6 |
| Inside diameter | .26 in |
| Item type | Fitting Assembly |
| Outside diameter | .905 in |
| Product Diameter | .905 in |
| Product Height | .905 in |
| Product Length/Depth | 1.99 in |
| Product material | Carbon steel |
| Product Type | Crimp Hose Fittings |
| Product Volume | 1.63 in³ |
| Product Weight | .126 lb |
| Product Width | .905 in |
| Sub-brand | None |
| Thread sealant | No |
| Thread Size 1 | 9/16-18 |
| Trade Name | 1G Series |
