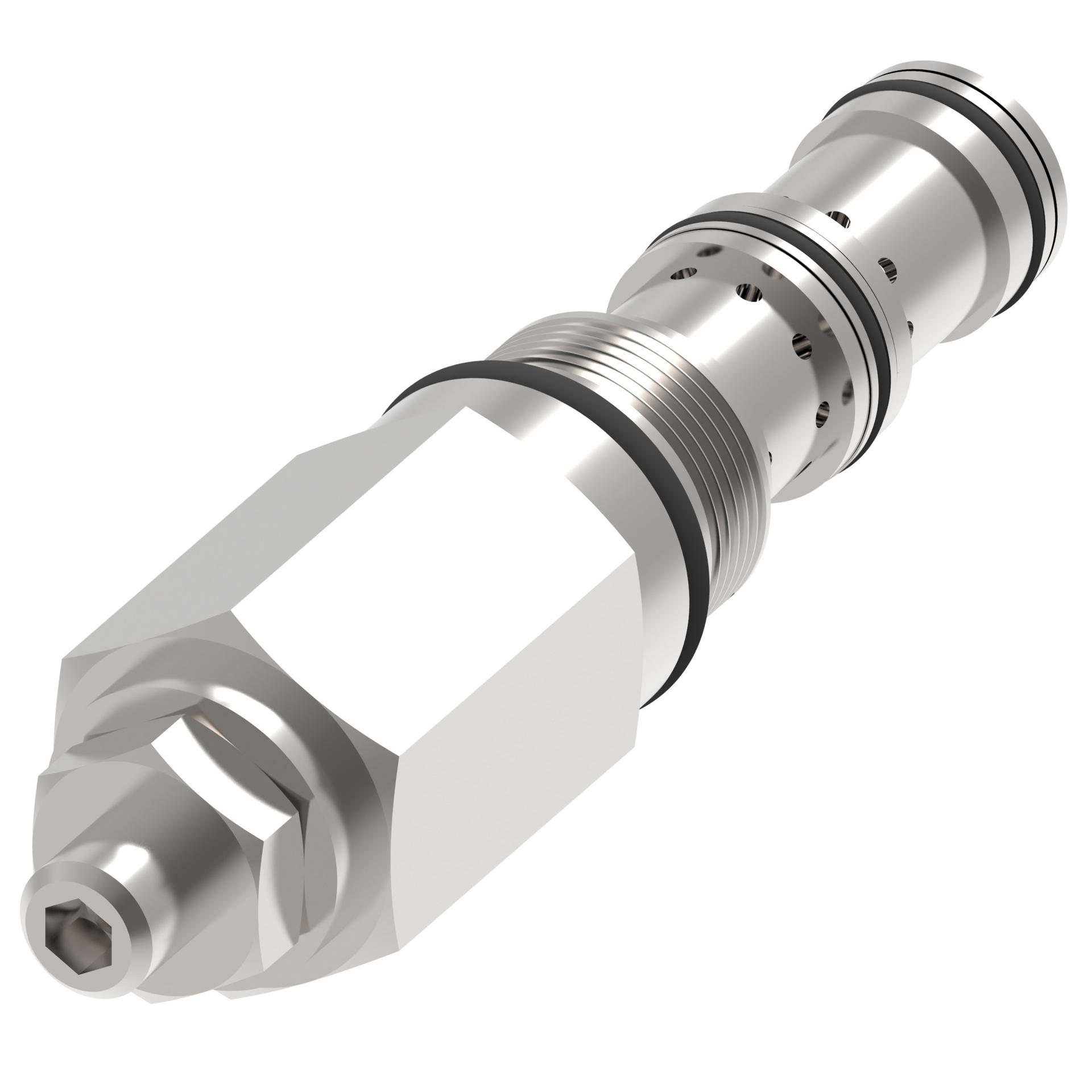

1PDX9033-05
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
1PDX9033-05
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Adjustment Type | Leakproof Screw | |
| Application | Harvesters, refuse haulers, mobile and industrial applications | |
| Factory Set Pressure | 110 bar | |
| Feature | 350 bar (5000 psi) & 300 L/min (80 USgpm)Reliable, economical and compactMaximum flexibility and minimum space | |
| Fluid compatibility | All SICV product are suitable for mineral oil based general hydraulic fluids including MIL-H-5606, SAE 10, SAE 20, etc.For any other fluids please contact Danfoss SICV Engineering department and supply a full data sheet for the fluid in question. | |
| Function | Pressure Reducing Valve | |
| Housing | No | |
| Installation Type | Screw-in Cartridge | |
| Leakage | Standard | |
| Minimum Working Pressure | 10 bar | |
| Operating Temperature | -30°C to +90°C | |
| Port size | None | |
| Port Type | Cartridge Only | |
| Product Height | 1.5 in | |
| Product Length/Depth | 6 in | |
| Product Type | Pressure Control Valves | |
| Product Volume | 13.5 in³ | |
| Product Weight | 1.276 lb | |
| Product Width | 1.5 in | |
| Recommended Filtration Level | 18/16/13 | |
| Seal Type | Buna-N | |
| Sub-brand | None | |
| Trade Name | 1PDX Series | |
| Valve Material | Steel | |
| Working pressure - max | 210 bar |
