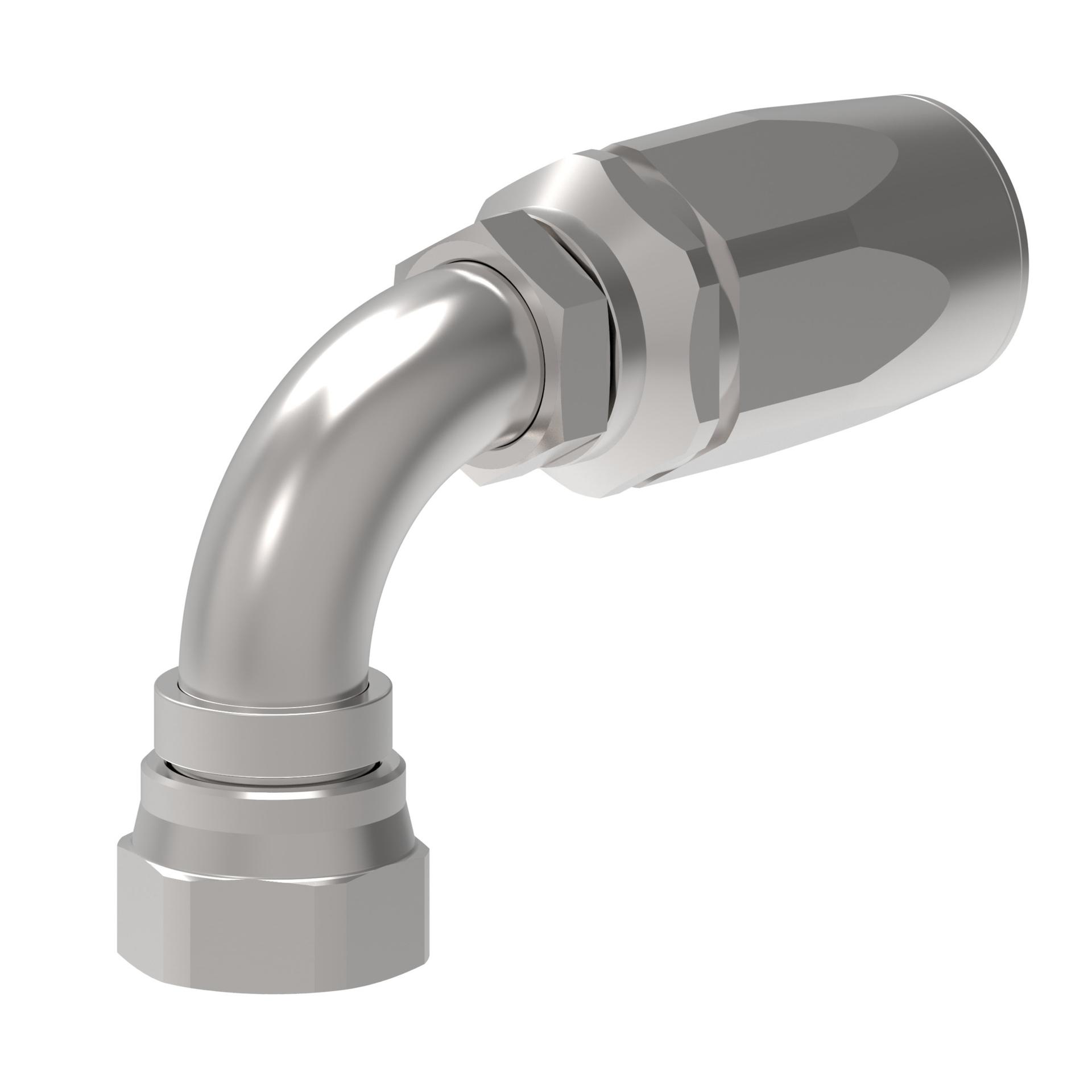

Hose Fittings 1RA16FJB16(RIGHT)

Danfoss

1RA16FJB16

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
BrandDanfoss
Compatible hose ID1 in
Compatible hosesH180
Construction styleReusable
Drop dimension2.39
End gender 1Female
End Size 11 5/16 IN
End type 1SAE 37
End type 2Line/Hose/Tube
FeatureFit for wide range of applicationsDurable and dependableCut assembly times and boost production
Finish/platingDURA-KOTE
Hex Size 11.5 in
Hex Size 21.69 in
Hose cut-off factor2.78 in
Hose dash size-16
Inside diameter.76 in
Item typeFitting Assembly
Product Height3.84 in
Product Length/Depth5.59 in
Product materialCarbon Steel
Product TypeReusable Hose Fittings
Product Volume36.277 in³
Product Weight1.73 lb
Product Width1.69 in
Sub-brandNone
Thread sealantNo
Thread Size 11 5/16-12
Trade Name1R Series
UPC678146193223
