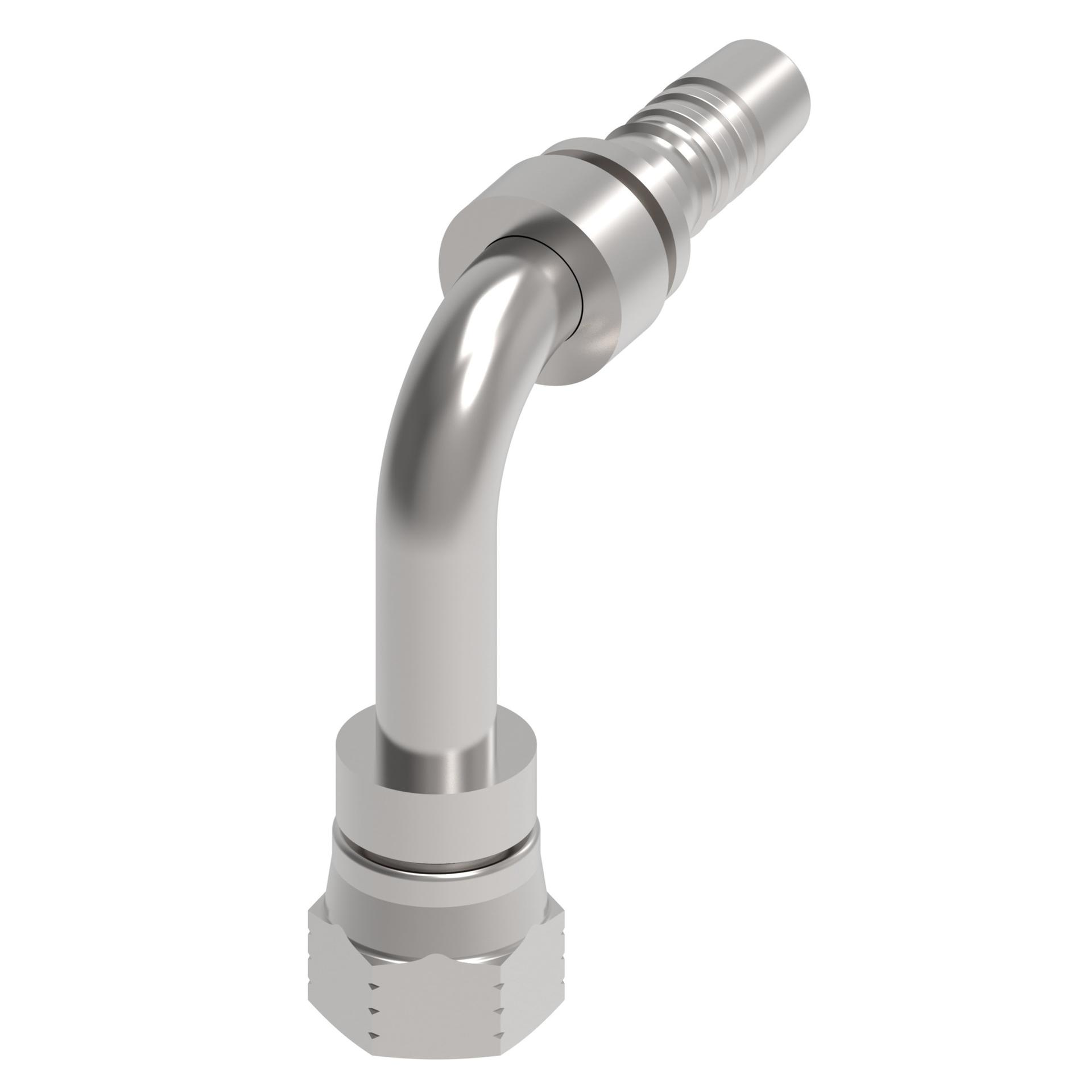

Hose Fittings 1SXXFJCXX [RIGHT]

Aeroquip by Danfoss

1SA20FJC20

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
BrandAeroquip by Danfoss
Compatible hose ID1.25 in
Compatible hoses2781
Construction styleCrimp
Drop dimension5.53
End gender 1Female
End Size 11 5/8 IN
End type 1JIC
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Finish/platingDURA-KOTE
Hex Size 12 in
Hose cut-off factor2.52 in
Hose dash size-20
Inside diameter1.01 in
Item typeNipple Assembly
Outside diameter1.8 in
Packaged Height14 in
Packaged Length9 in
Packaged Volume882 in³
Packaged Weight2.74 lb
Packaged Width7 in
Product Diameter1.79 in
Product Height7.06 in
Product Length/Depth5.25 in
Product materialCarbon Steel
Product TypeCrimp Hose Fittings
Product Volume74.13 in³
Product Weight1.74 lb
Product Width2 in
Sub-brandNone
Thread sealantNo
Thread Size 11 5/8-12
Trade Name1S Series
