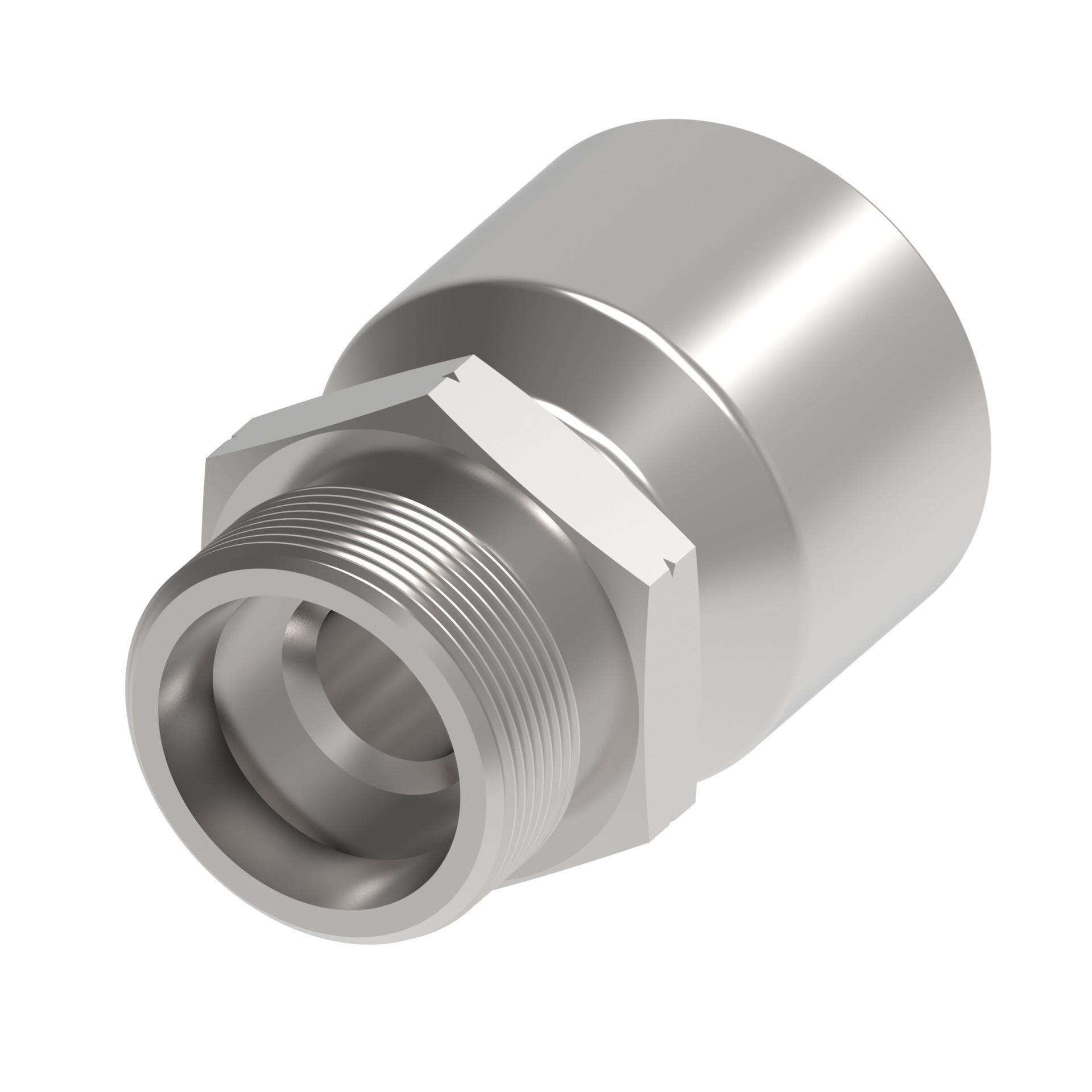

Hose Fittings 1TXXEKXX (RIGHT)

Aeroquip by Danfoss

1T16BP16

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)Straight
BrandAeroquip by Danfoss
Compatible hose ID1 in
Compatible hoses2755, 2755B, GH275, GH435, GH755, GH810
Construction styleCrimp
End gender 1Male
End gender 2Female
End Size 11 IN
End Size 21 IN
End type 1BSPP
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Finish/platingDura-Kote
Hex Size 11.417 in
Hose cut-off factor1.437 in
Hose dash size-16
Inside diameter.787 in
Item typeFitting Assembly
Outside diameter2.079 in
Product Diameter2.079 in
Product Height2.079 in
Product Length/Depth3.031 in
Product materialCarbon Steel
Product TypeCrimp Hose Fittings
Product Volume13.101 in³
Product Weight2.079 lb
Product Width2.079 in
Sub-brandNone
Thread sealantNo
Thread Size 1G 1-11
Trade Name1T Series
