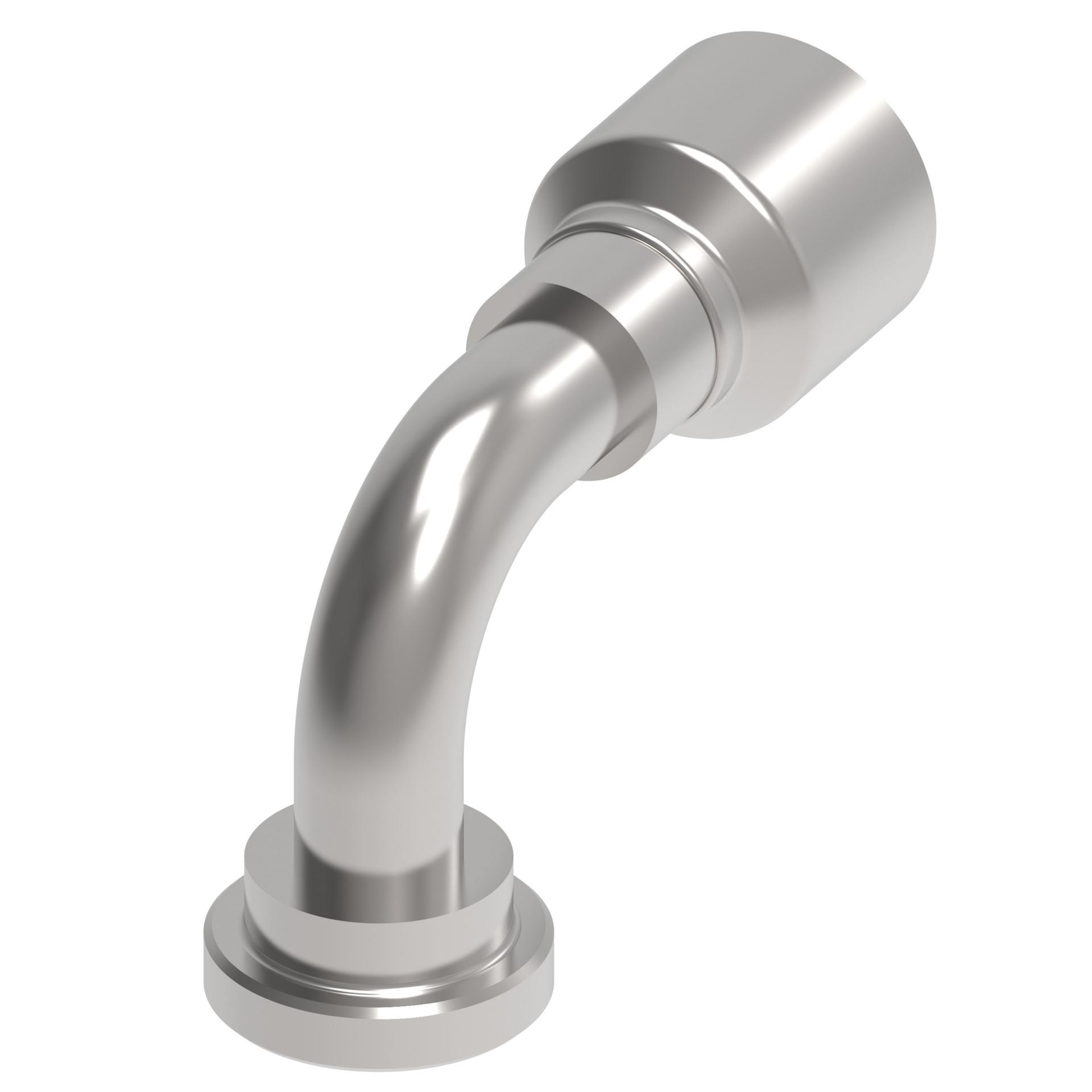

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.287 |
| A dimension MM | 83.500 |
| Angle shape | 90 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 0.500 |
| Compatible hose ID MM | 12.700 |
| Compatible hoses | GH275GH4352755 |
| Construction Style | Crimp |
| Drop dimension IN | 1.757 |
| Drop dimension MM | 44.70 |
| End Type 1 | Split flange code 62 |
| End connection torque | 15-19 lb-ft(20-25 Nm) |
| End size 1 | -8 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 1.988 |
| Hose cut off factor MM | 50.500 |
| Hose size | -8 |
| Inside diameter IN | 0.354 |
| Inside diameter MM | 9.000 |
| Product height in | 2.466 |
| Product height mm | 62.650 |
| Product length in | 3.897 |
| Product length mm | 99.000 |
| Product material | Carbon steel |
| Product width in | 1.413 |
| Product width mm | 35.900 mm |
| Series | Spiral Single Skive |
| Thread sealant | No |
| Working pressure max BAR | 414 |
| Working pressure max PSI | 6000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| Proposition 65 | Cancer and Reproductive Harm |
