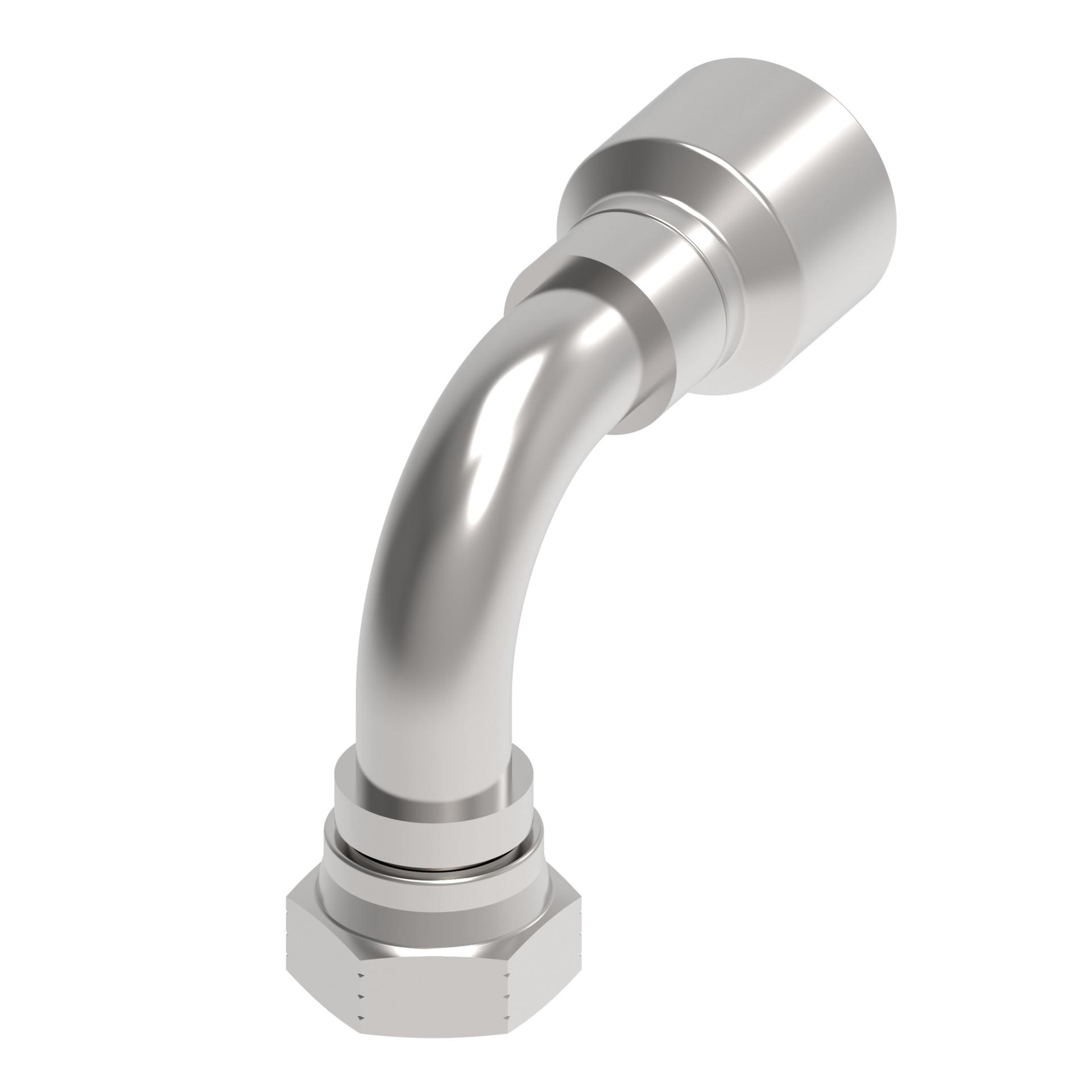

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 2.716 |
| A dimension MM | 69.000 |
| Angle shape | 90 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 0.500 |
| Compatible hose ID MM | 12.700 |
| Compatible hoses | GH275GH4352755 |
| Construction Style | Crimp |
| Drop dimension IN | 1.338 |
| Drop dimension MM | 34.00 |
| End connection torque | 38-42 lb-ft(52-58 Nm) |
| End size 1 | -8 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 0.866 |
| Hex size 1 MM | 22.000 |
| Hose cut off factor IN | 1.410 |
| Hose cut off factor MM | 36.000 |
| Hose size | -8 |
| Inside diameter IN | 0.354 |
| Inside diameter MM | 9.000 |
| Product height in | 2.045 |
| Product height mm | 51.950 |
| Product length in | 3.140 |
| Product length mm | 80.000 |
| Product material | Carbon steel |
| Product width in | 1.413 |
| Product width mm | 35.900 mm |
| Series | Spiral Single Skive |
| Thread sealant | No |
| Thread size 1 | 3/4-16 UNF |
| Working pressure max bar | 414 |
| Working pressure max psi | 6000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| Proposition 65 | Cancer and Reproductive Harm |
