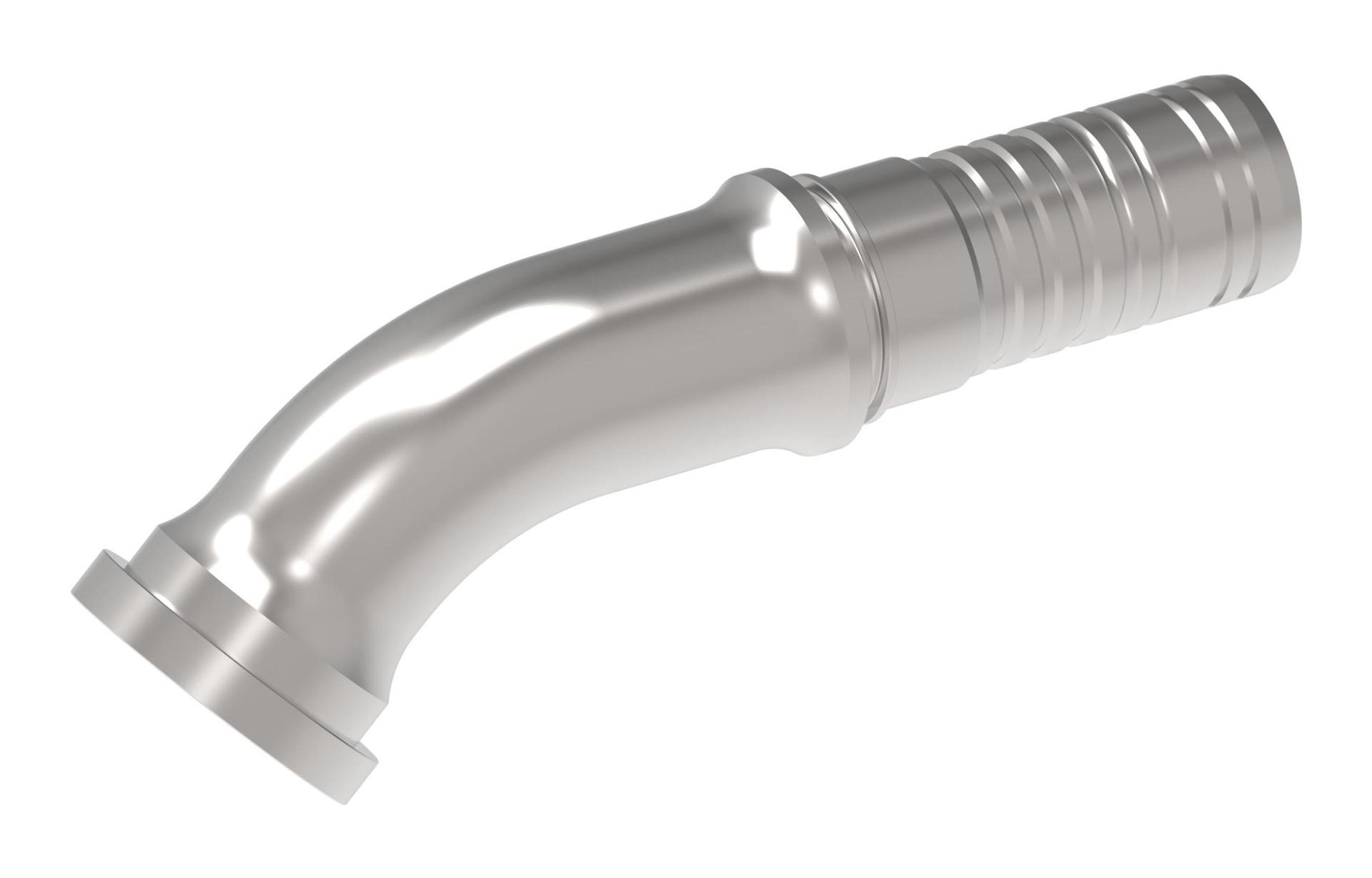

Hose Fittings 1W32FHA32 [RIGHT]

Aeroquip by Danfoss

1W40FHA40

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)45 Degree
BrandAeroquip by Danfoss
Compatible hose ID2.5 in
Construction styleCrimp
Drop dimension3.54
End gender 1Female
End gender 2Male
End Size 12.323 IN
End Size 22.52 IN
End type 1Flanged
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Finish/platingDura-Kote
Hose cut-off factor13.34 in
Hose dash size-40
Inside diameter2.106 in
Item typeFitting Assembly
Outside diameter4.25 in
Product Diameter4.25 in
Product Height7.16 in
Product Length/Depth20.15 in
Product materialCarbon Steel
Product TypeCrimp Hose Fittings
Product Volume613.165 in³
Product Weight20.94 lb
Product Width4.25 in
Sub-brandNone
Thread sealantNo
Trade Name1W Series
