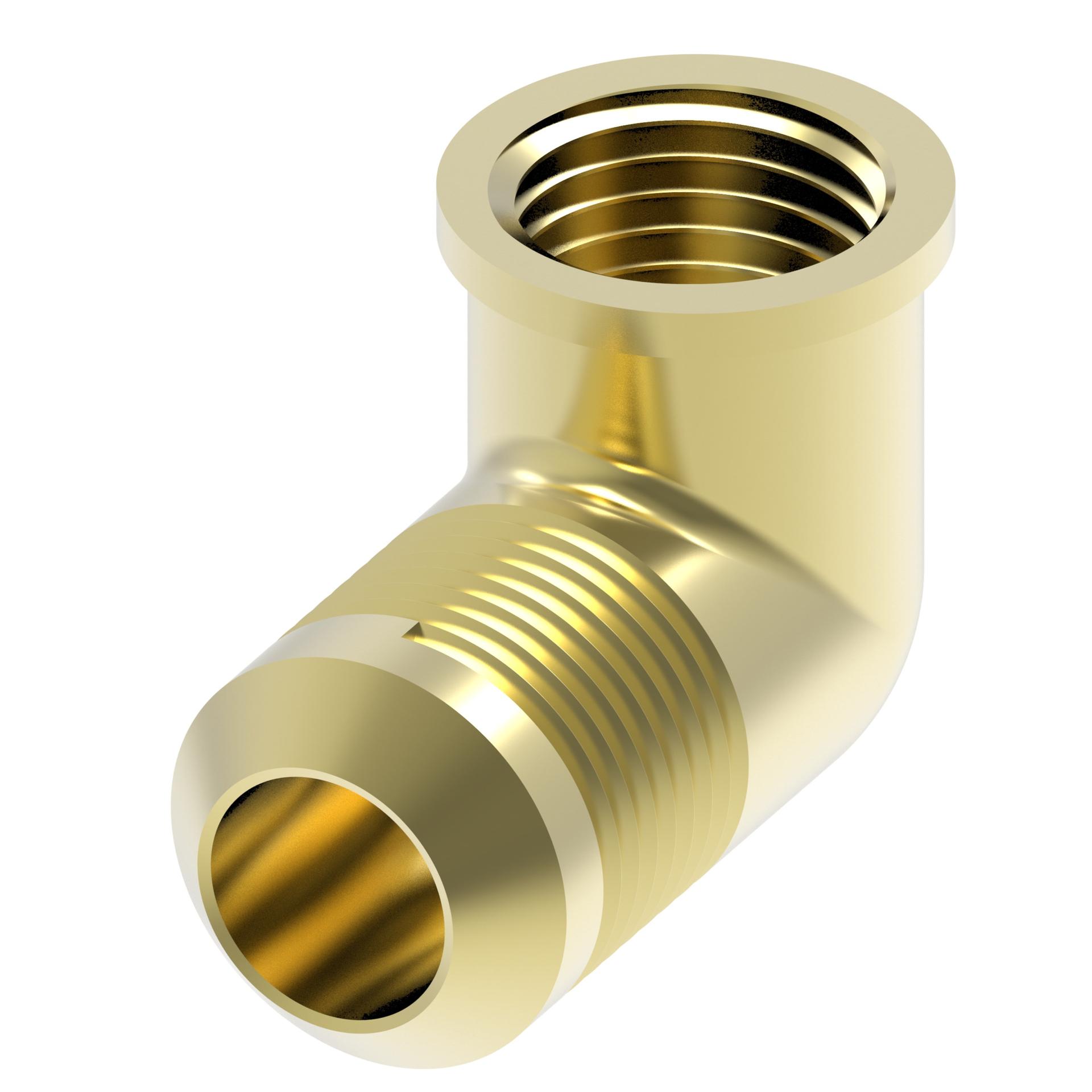

Elbow Adapters 2002-2-4B (RIGHT)

Danfoss

2002-6-8B

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
BrandDanfoss
Drop dimension1.28
End gender 1Female
End gender 2Male
End Size 13/8 IN
End Size 23/4 IN
End type 1NPTF
End type 2SAE 45
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Hex Size 1.75 in
Item typeNPTF Female/SAE 45° Male 90° Elbow Adapter
Packaged Height14 in
Packaged Length7 in
Packaged Volume882 in³
Packaged Weight.795 lb
Packaged Width9 in
Product Height1.46 in
Product Length/Depth1.495 in
Product materialBrass
Product TypeElbow Adapters
Product Volume1.637 in³
Product Weight.2 lb
Product Width.75 in
Sub-brandNone
Thread sealantNo
Thread Size 13/8-18
Thread Size 23/4-16
Trade Name2002 Series
UPC678146045614
