Danfoss
2025-4-4B
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
2025-4-4B
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 90 Degree | |
| Application | Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling | |
| Brand | Danfoss | |
| Certification(s) | SAE 070203 | |
| Drop dimension | 1.22 | |
| End gender 1 | Female | |
| End gender 2 | Male | |
| End Size 1 | 1/4 IN | |
| End Size 2 | 7/16 IN | |
| End type 1 | NPTF | |
| End type 2 | SAE 37 | |
| Feature | Dura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards | |
| Hex Size 1 | .75 in | |

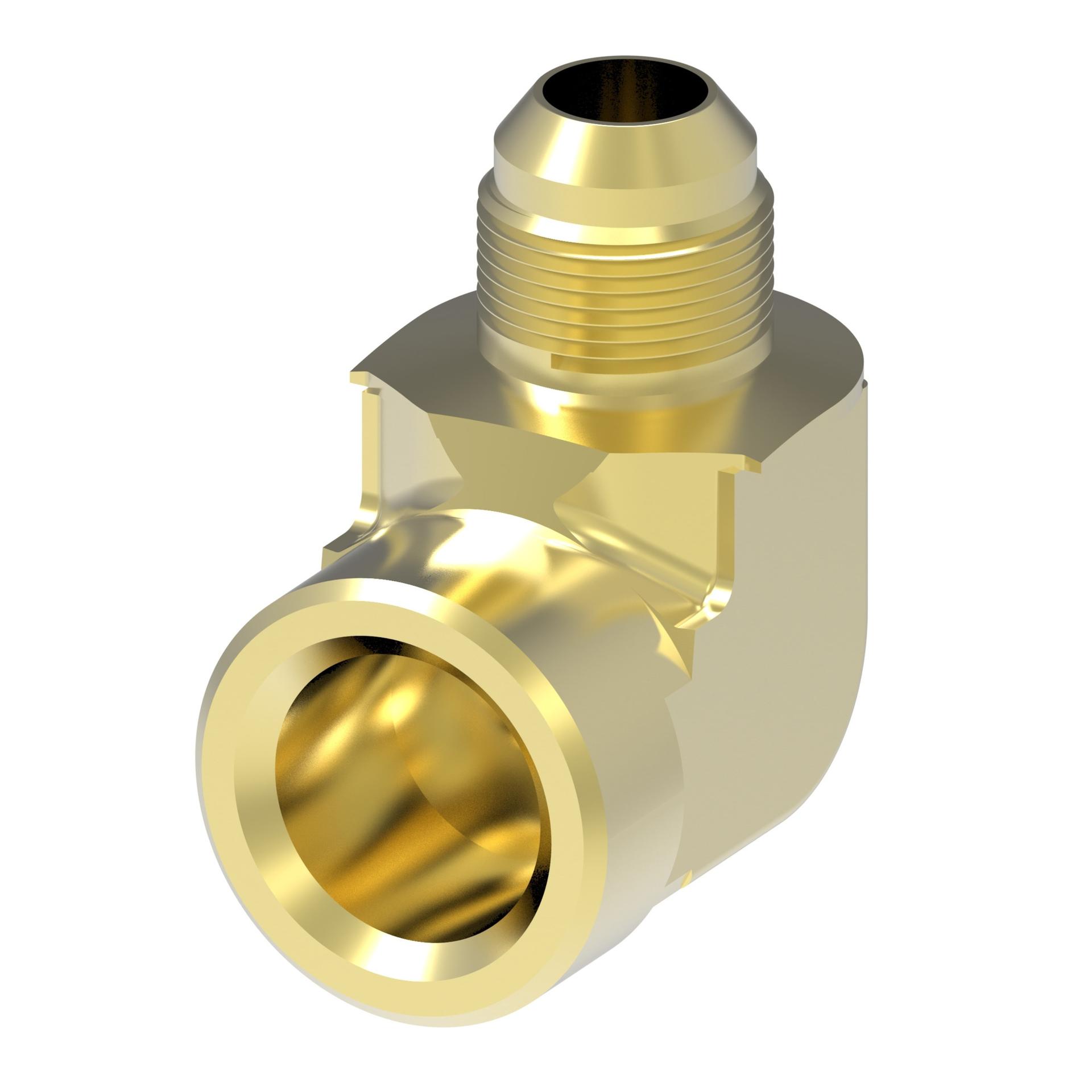

| Item type | NPTF Female/SAE 37° Male 90° Elbow Adapter | |
| Packaged Weight | .16 lb | |
| Product Height | 1.594 in | |
| Product Length/Depth | 1.254 in | |
| Product material | Brass | |
| Product Type | Elbow Adapters | |
| Product Volume | 1.495 in³ | |
| Product Weight | .16 lb | |
| Product Width | .748 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 1/4-18 | |
| Thread Size 2 | 7/16-20 | |
| Trade Name | 2025 Series | |
| Working temperature - max | 400 °F | |
| Working temperature - min | -65 °F |
