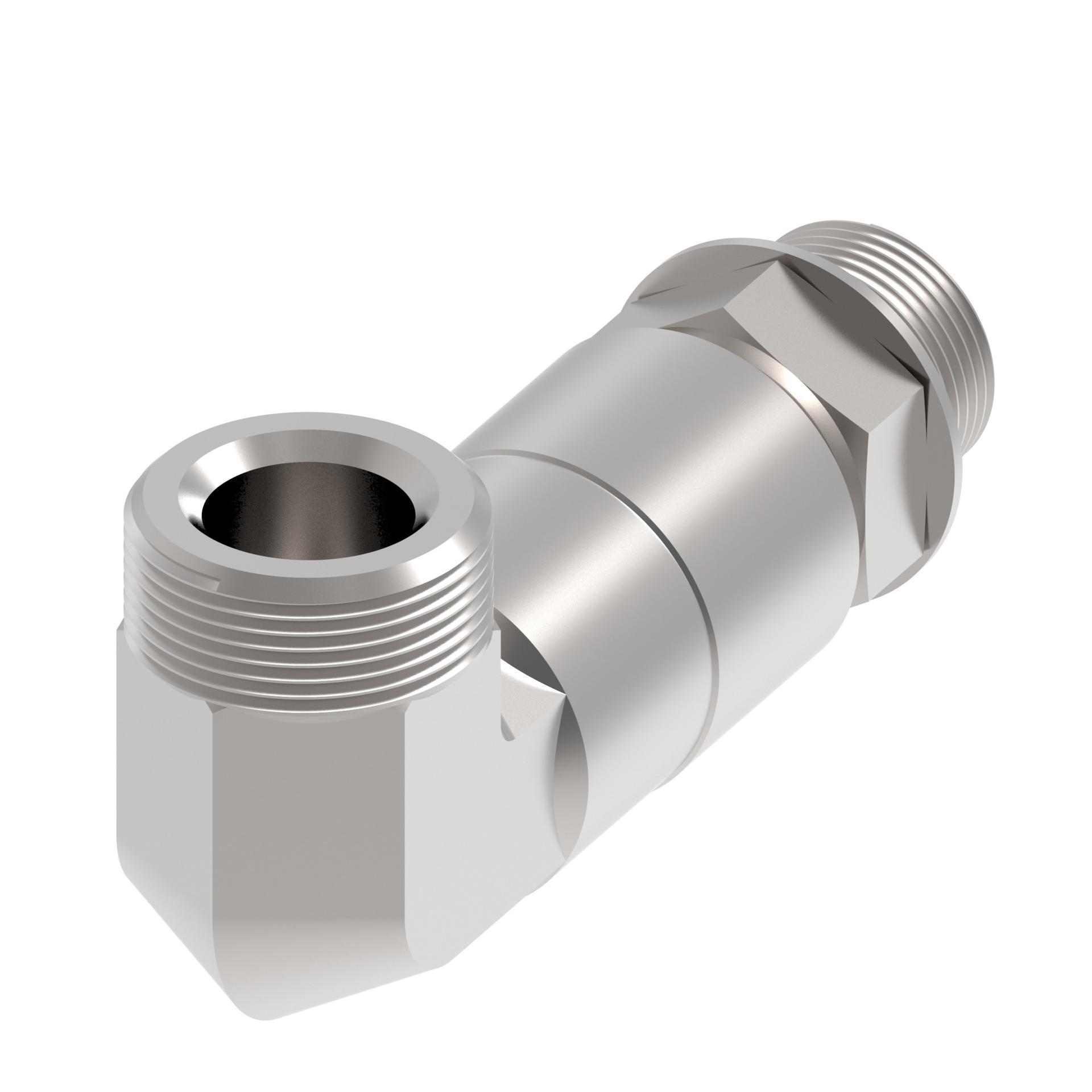

Elbow Adapters 206804-6-8S (RIGHT)

Adapter, SAE ORB 90 elbow

206804-16-16S


Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandDanfoss
Drop dimension IN4.640
Drop dimension MM117.90
End type 1Female pipe (NPTF)
Finish platingDura-Kote
Hex size 1 IN1.620
Hex size 1 MM41.100
Hex size 2 IN0.640
Hex size 2 MM16.300
Item typeAdapter-elbow
Product materialCarbon steel
Thread sealantNo
Thread size 21 5/16-12 UN
Working temp max C204
Working temp max F400
Working temp min C-54
Working temp min F-65

General specifications

Characteristic
Value
EAN/UPC678146187147
