Hose Fittings 08Z-L66 (RIGHT)

20ZA-L80

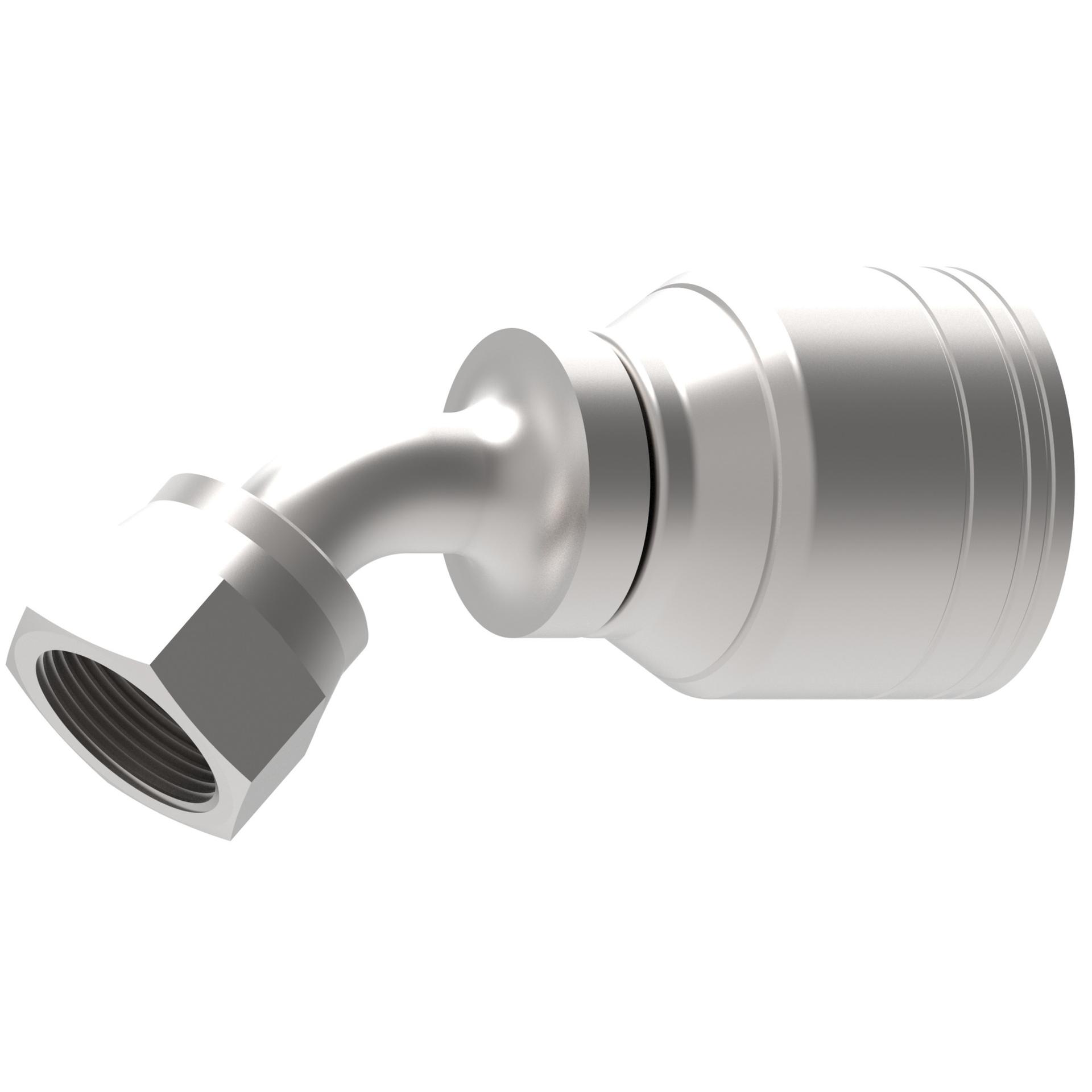

Female FOR-SEAL Swivel 45° Elbow
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Braided fittings

Recommended replacement: 20Z-L80

Tools

Product specifications

Characteristic
Value
Angle (shape)45 Degree
ApplicationGeneral purpose low, medium, and high pressure hydraulic
Compatible hose ID1.25 in
Compatible hosesH104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, EC118
Construction styleCrimp
Drop dimension1
End Size 11 11/16 IN
End gender 1Female
End type 1FOR-SEAL
End type 2Line/Hose/Tube
Finish/platingDURA-KOTE
Hose cut-off factor3.37 in
Hose dash size-20
Inside diameter1.02 in
Item typeFitting Assembly
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight2.5 lb
Packaged Width6.75 in
Product Height1 in
Product Length/Depth4.93 in
Product Volume11.862 in³
Product Weight1.5 lb
Product Width2.406 in
Product materialCarbon Steel
Thread Size 11 11/16-12
Thread sealantNo
UNSPSC27121707
UPC815628027175
