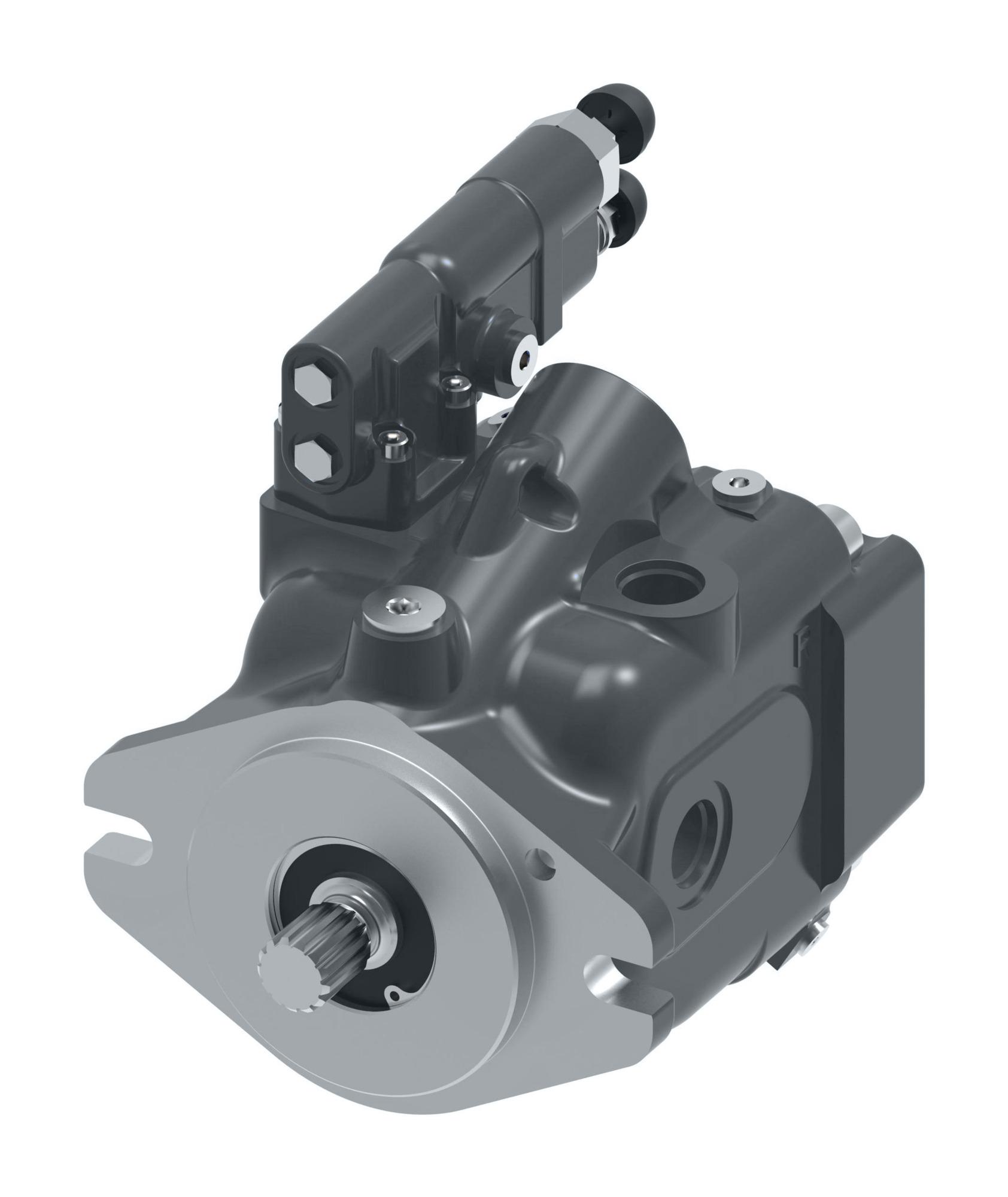

Danfoss X20 Open Circuit Piston Pumps 220 Series AEC028L09ACC2AV3600000T0100100CD01B (RIGHT)

Danfoss

222AK00092B

AEC028L09ADC2AB262000000100100CD01B
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Product specifications

Characteristic
Value
ApplicationConstruction, Agriculture, Truck and Bus, Material Handling, Other Mobile
Auxiliary MountingNone
Bearing Life at Rated Pressure5850 hr
BrandDanfoss
Code Title220 Series Mobile Piston Pump
Continuous Allowable Case Pressure19 Psi
Control Special FeaturesNone
Controller TypePressure Flow Compensator with .4375-20 SAE O-Ring Load Sense Port Left Side
Design codeSecond
Diagnostic Pressure PortsM12 X 1.5 Metric O-Ring Ports - Plugged
Displacement28 cm³/rev
Drain Port Size & LocationM22 X 1.5 Metric O-Ring Port - Top (28Cc and 45Cc)
FeatureFastest response and recovery times in the marketIncrease efficiency with advanced control optionsHigh pressure and flow capacity
Fluid Cleanliness21/18/13
Front Mounting2 Bolt B
Housing materialCast Iron
IdentificationMark Danfoss Product Number and Full Model Code On Label
Inlet pressure64 Psi
Input Speed - Maximum3600 RPM
Input Speed - Minimum500 RPM
Input Speed At 0.8 Bar Absolute2700 RPM
Input Speed At 1.0 Bar Absolute3000 RPM
Input shaft13 Tooth 16/32 Spline, Shaft Extension 41.1 [1.62]
Main Port Size & LocationRear Ports; Suction - M42 X 2 ISO Metric; Pressure M27 X 2 ISO Metric
Maximum Case Pressure45 Psi
Maximum Displacement OptionStandard Displacement
Maximum Input Power39.2 kW
Maximum Input Torque1106 in lb
Maximum Recommended Operating Viscosity40 cSt
Minimum Recommended Operating Viscosity16 cSt
Model CodeAEC028L09ACC2AV3600000T0100100CD01B
Nominal Pressure Rating4060 Psi
PaintNone
Peak Pressure Rating5000 Psi
Product Height9.02 in
Product Length/Depth9.69 in
Product TypeOpen Circuit Piston Pumps
Product Volume598.716 in³
Product Weight35.9 lb
Product Width6.85 in
Pump Special FeaturesNone
Shaft rotationLeft
Shaft sealsViton
Sub-brandNone
Torque Control Setting0 in lb
Trade NameX20
