Aeroquip by Danfoss

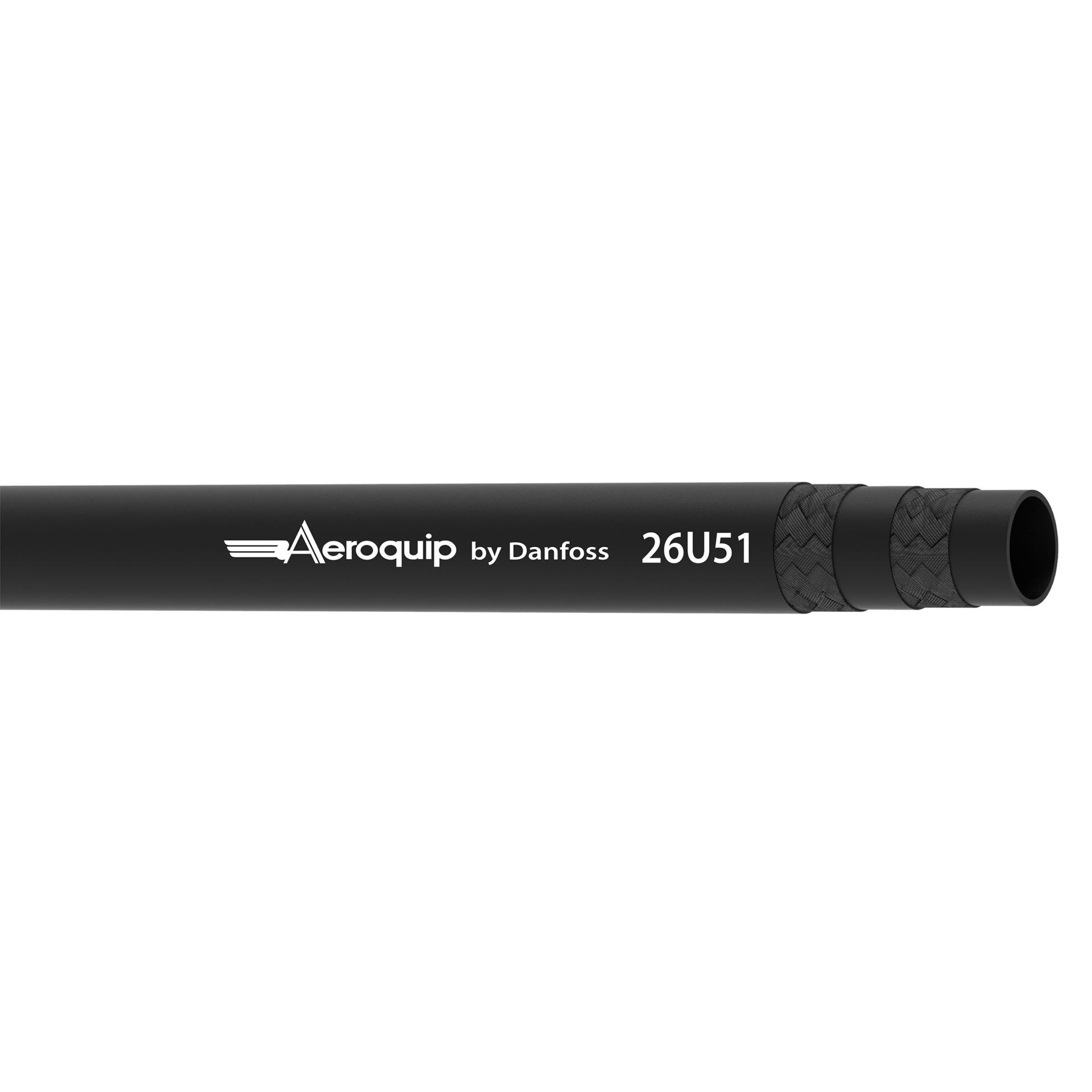

26U51J-32
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
26U51J-32
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | Transfer of liquid gas | |
| Bend radius - min | 13.38 in | |
| Brand | Aeroquip by Danfoss | |
| Burst pressure | 1450 Psi | |
| Certification(s) | EN 1762 | |
| Color | Black | |
| Construction | 2-ply braid | |
| Cover material | Synthetic Rubber | |
| Cover style | Perforated | |
| Dash size | -32 | |
| Feature | Maximum durability under harsh operating conditionsRobust construction able to withstand highest pressuresSystem engineered to extend hose assembly life | |
| Inside diameter | 1.81 in | |
| Lay line style | Transfer Tape | |
| Outside diameter | 2.22 in | |
| Product Height | 2.22 in | |
| Product Length/Depth | 1 ft | |
| Product Type | Rubber Hydraulic | |
| Product Volume | 59.141 in³ | |
| Product Weight | 0 lb | |
| Product Width | 2.22 in | |
| Reinforcement material | Textile and wire | |
| Sub-brand | None | |
| Trade Name | 26U51J Series | |
| Tube material | Synthetic Rubber | |
| Working pressure | 362 Psi | |
| Working temperature - max | 158 °F | |
| Working temperature - min | -22 °F |
