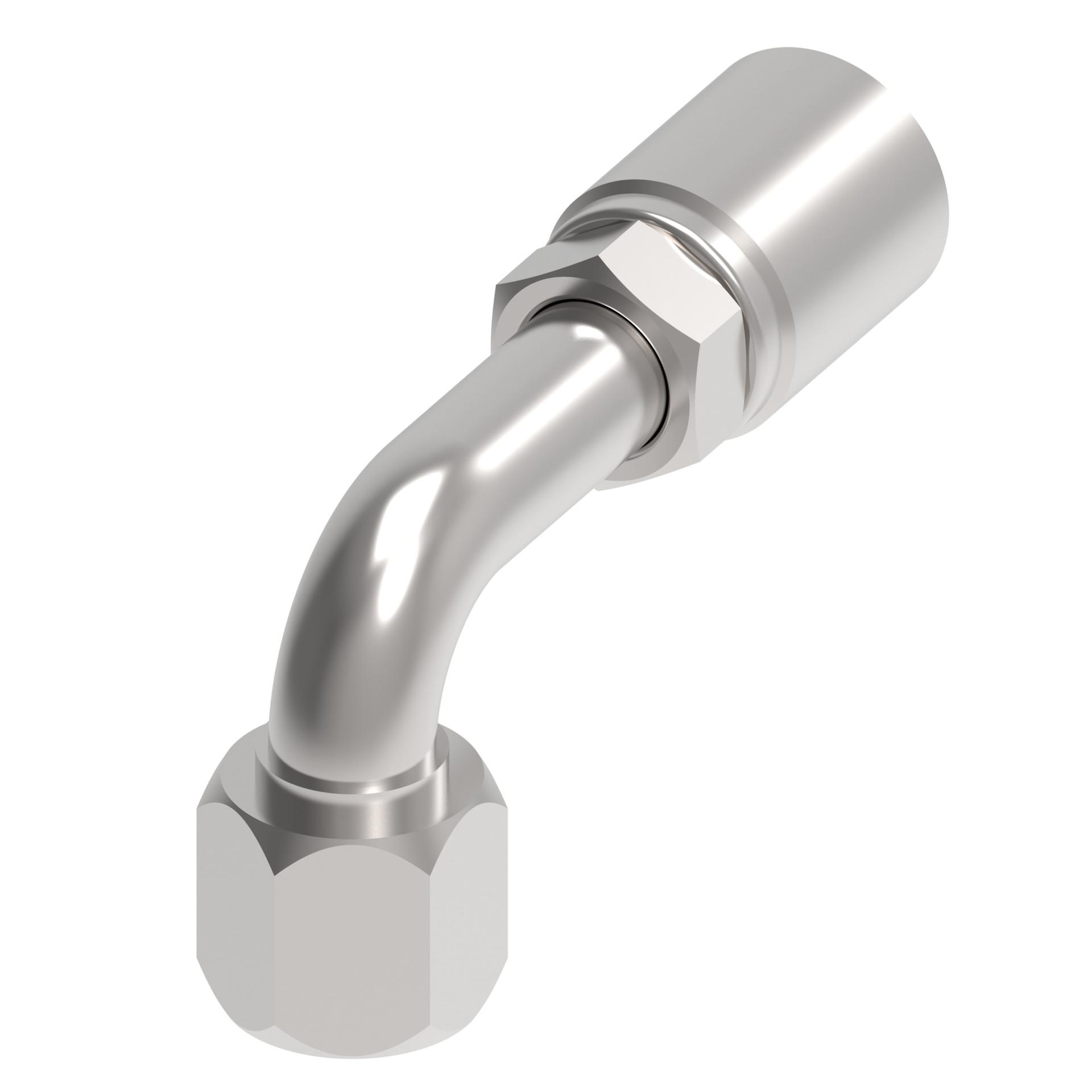

Hose Fittings 33600E-660 [RIGHT]

Weatherhead by Danfoss

33608E-670

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Thermoplastic fittings

Recommended replacement: 4TA10FJB8

Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
BrandWeatherhead by Danfoss
Compatible hose ID.625 in
Compatible hosesH335, H336
Compatible tube OD.5 in
Construction styleCrimp
Drop dimension1.63
End gender 1Female
End Size 17/8 IN
End type 1JIC 37
End type 2Line/Hose/Tube
FeatureDura-Kote plating for superior corrosion resistanceInnovative design to deliver performance and maximum uptimeSystem engineered to extend hose assembly life
Finish/platingDURA-KOTE
Hex Size 11 in
Hex Size 2.875 in
Hose cut-off factor1.44 in
Hose dash size-10
Inside diameter.391 in
Item typeFitting Assembly
Outside diameter1.06 in
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height2.64 in
Product Length/Depth3.5 in
Product materialCarbon Steel
Product TypeCrimp Hose Fittings
Product Volume9.794 in³
Product Weight.48 lb
Product Width1.06 in
Sub-brandNone
Thread sealantNo
Thread Size 17/8-14
Trade Name336 E Series
UNSPSC40183100
UPC725975816448
