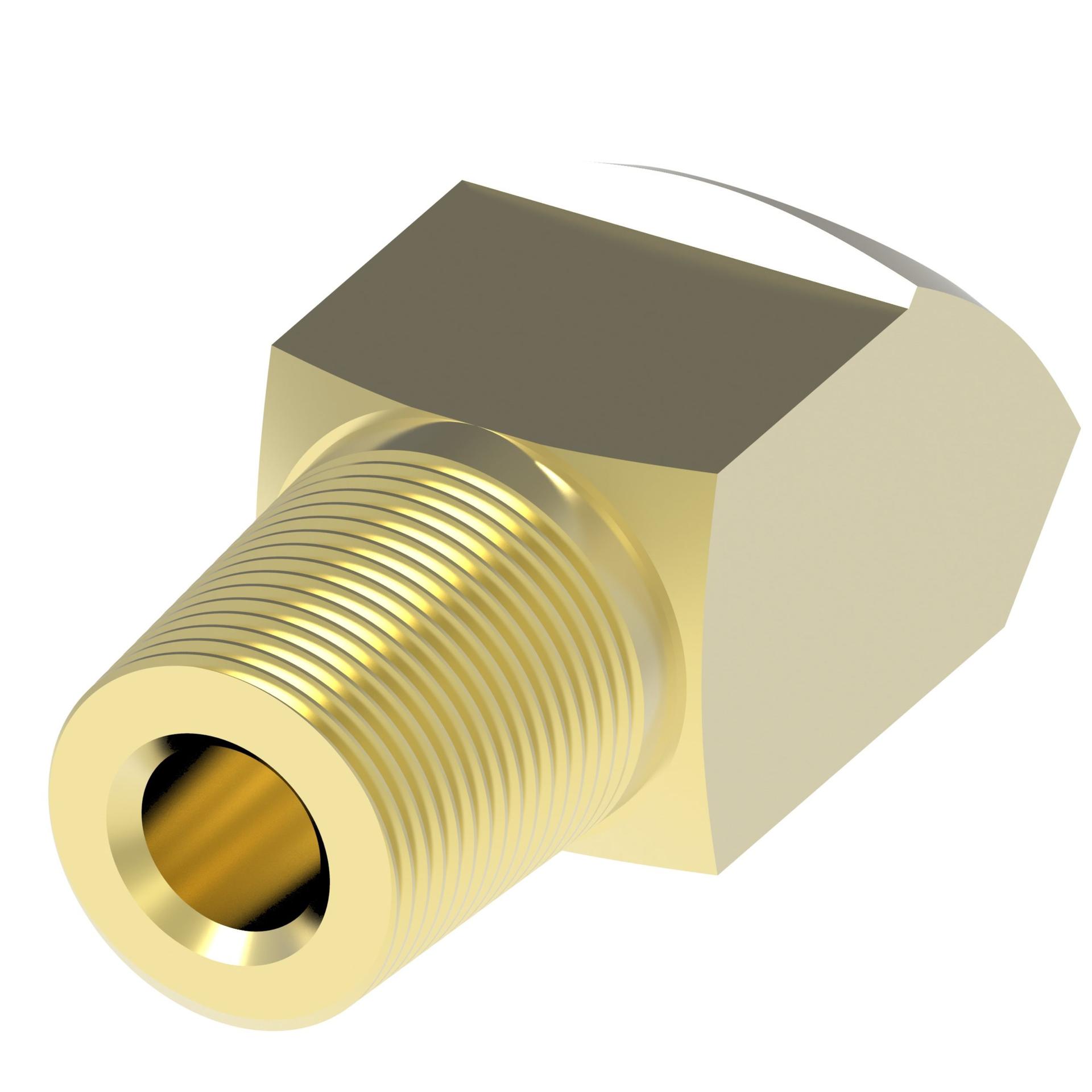

Elbow Adapters 352X (RIGHT)

Danfoss

352X4Z

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Tools

Product specifications

Characteristic
Value
Angle (shape)45 Degree
ApplicationHydraulic brake, power steering, fuel lines and transmission cooler lines, LP and natural gas (special order). instrumentation and hydraulic systems.
BrandDanfoss
Certification(s)ASMEMSASA
End gender 1Male
End gender 2Female
End Size 11/8 IN
End Size 27/16 IN
End type 1NPTF
End type 2SAE
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Hex Size 1.56 in
Inside diameter (bore hole size).281 in
Item typeNPTF Male/SAE Female 45°° Elbow Adapter
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height.562 in
Product Length/Depth.849 in
Product materialBrass
Product TypeInverted Flare
Product Volume.268 in³
Product Weight.034 lb
Product Width.562 in
Sub-brandNone
Thread sealantNo
Thread Size 11/8-27
Thread Size 27/16-24
Trade NameNone
Tube OD 1.25 in
Tube OD 2.4 in
UNSPSC40183100
UPC757522221214
Working pressure2000 Psi
Working temperature - max250 °F
Working temperature - min-65 °F
