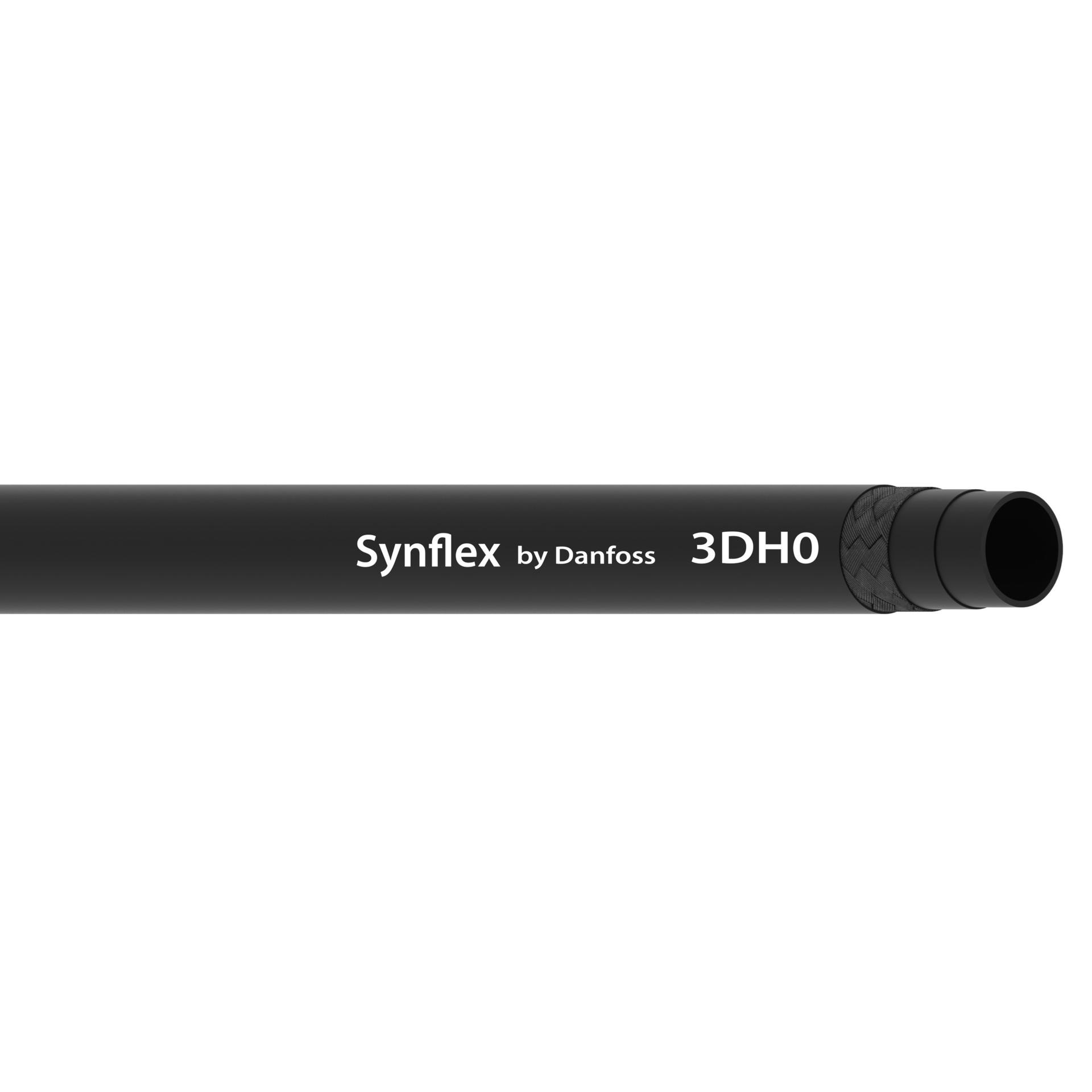

Synflex by Danfoss
3DH0-05-2-M0075C
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
3DH0-05-2-M0075C
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Premium | |
| Application | Suitable for use with petroleum or synthetic base hydraulic fluids and water base or fire resistant fluids. | |
| Bend radius - min | 2.17 in | |
| Brand | Synflex by Danfoss | |
| Burst pressure | 9978.75 Psi | |
| Certification(s) | SAE 100R7 | |
| Color | Black | |
| Conditional temperature range | -40 C to 93 C with petroleum or synthetic base hydraulic fluids; -40 C to 66 C with water base of fire resistant fluids | |
| Construction | 1 Ply Braid | |
| Cover material | Polyurethane | |
| Cover style | Perforated | |
| Dash size | -5 | |
| Feature | Highly abrasion resistant coverPrevents absorption of most oils and fluids2X lighter than equivalent wire braided rubber hoses | |
| Inside diameter | .31 in | |
| Lay line style | Ink Jet | |
| Outside diameter | 1.13 in | |
| Product Height | 1.13 in | |
| Product Length/Depth | 246.06 ft | |
| Product Type | Thermoplastic Hydraulic Hoses | |
| Product Volume | 3770.328 in³ | |
| Product Weight | 39.86 lb | |
| Product Width | 1.13 in | |
| Reinforcement material | Polyester | |
| Sub-brand | None | |
| Trade Name | 3DH0 Series | |
| Tube material | Polyester | |
| Working pressure | 2494.69 Psi | |
| Working temperature - min | -40 °F |
