Aeroquip by Danfoss
4-1251-20
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

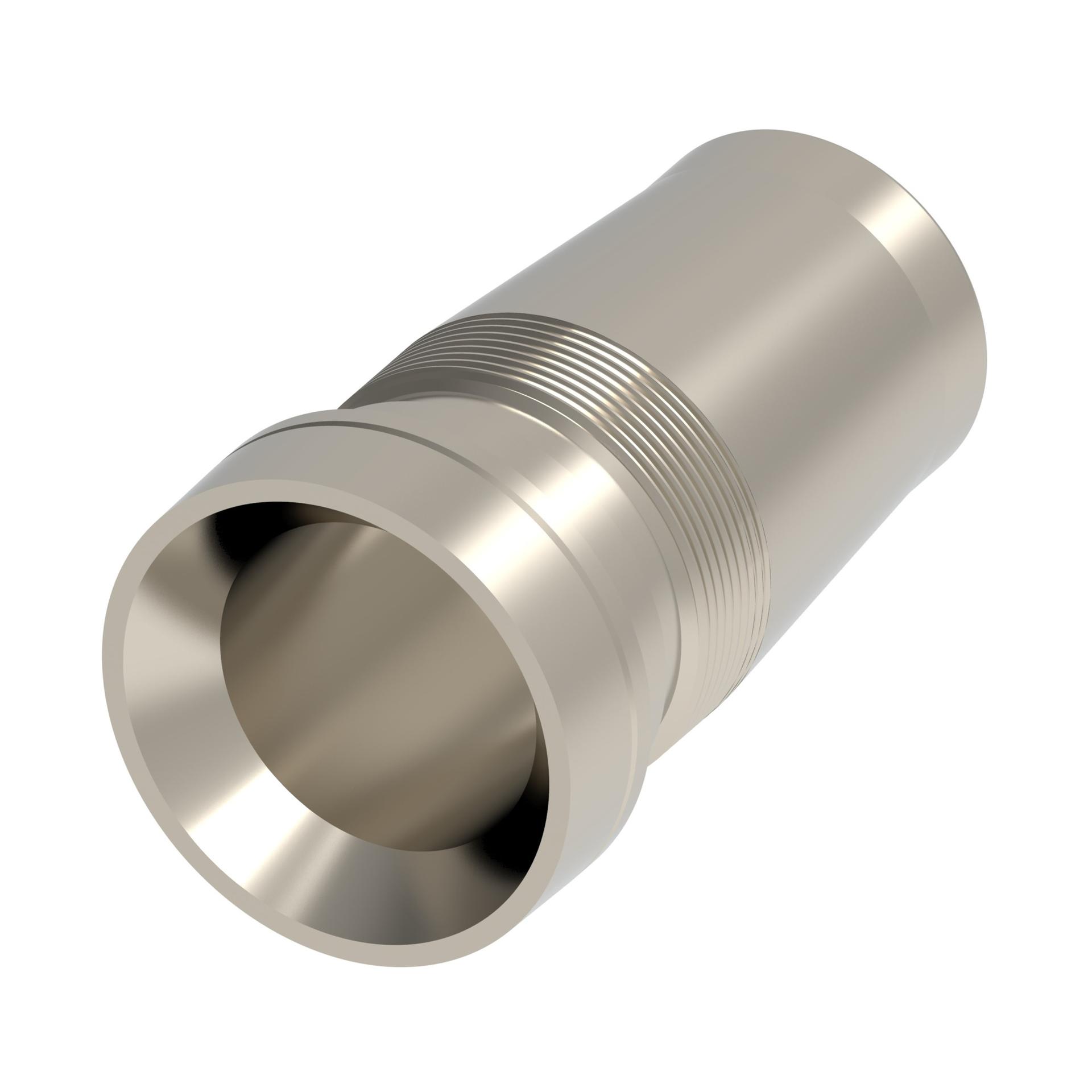

4-1251-20
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 1.25 in | |
| End gender 2 | Male | |
| End Size 2 | 1 5/16 IN | |
| End type 1 | SAE 37 | |
| End type 2 | UNEF | |
| Feature | Maximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability | |
| Hose dash size | -20 | |
| Inside diameter | 1.05 in | |
| Item type | Nipple | |
| Outside diameter | 1.53 in | |
| Product Height | 1.5 in | |
| Product Length/Depth | 2.36 in | |
| Product material | Monel | |
| Product Type | Crimp Hose Fittings | |
| Product Volume | 5.416 in³ | |
| Product Width | 1.53 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 2 | 1 5/16-18 | |
| Trade Name | 41.840 Series |
