Aeroquip by Danfoss

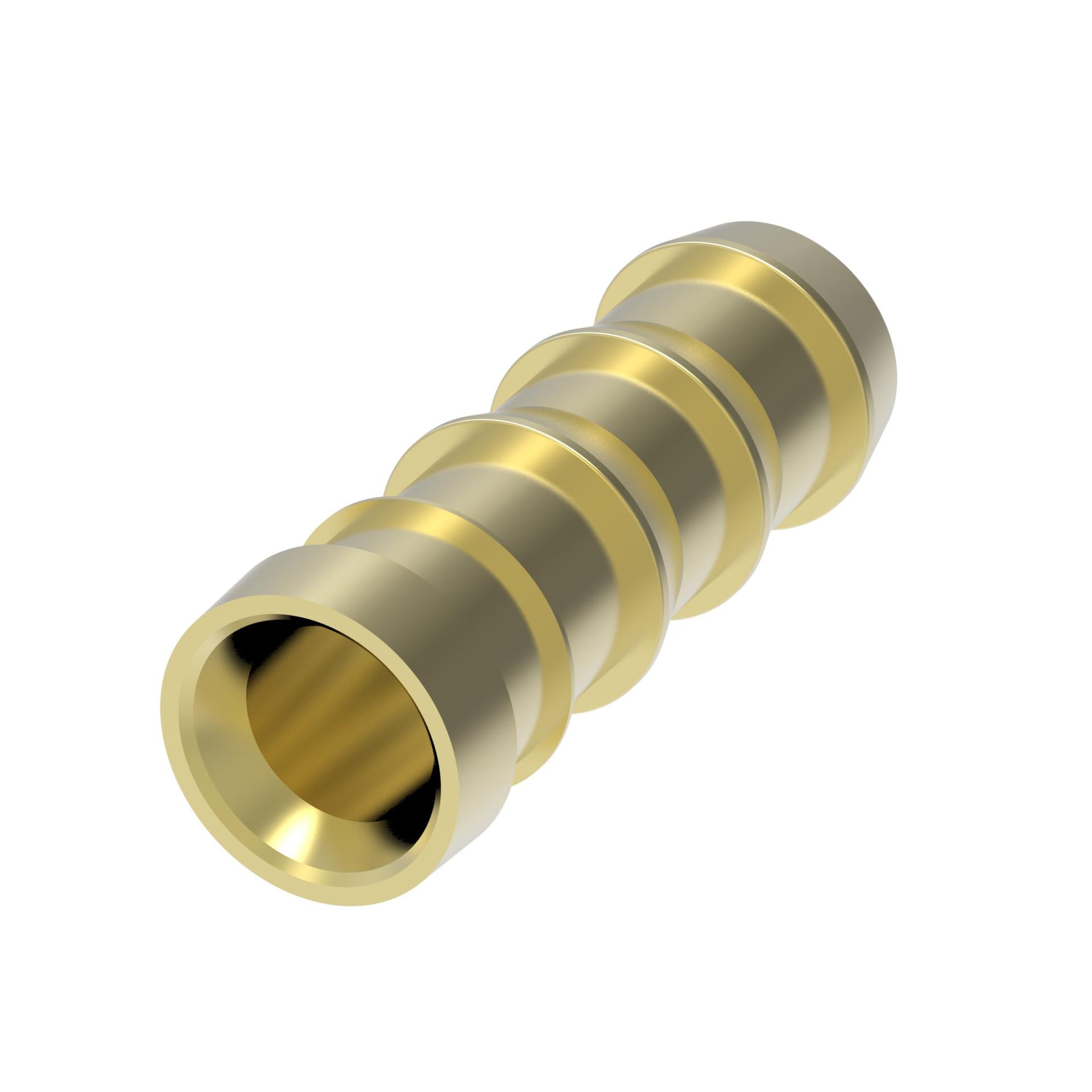

4115-10B
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
4115-10B
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | .63 in | |
| Compatible hoses | 2556 HOSE | |
| Construction style | Reusable | |
| End type 1 | Line/Hose/Tube | |
| End type 2 | Line/Hose/Tube | |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production | |
| Hose dash size | -10 | |
| Inside diameter | .48 in | |
| Item type | Nipple | |
| Outside diameter | .78 in | |
| Packaged Height | 14 in | |
| Packaged Length | 7 in | |
| Packaged Volume | 882 in³ | |
| Packaged Weight | 1 lb | |
| Packaged Width | 9 in | |
| Product Diameter | .78 in | |
| Product Height | .79 in | |
| Product Length/Depth | 2.1 in | |
| Product material | Brass | |
| Product Type | Reusable Hose Fittings | |
| Product Volume | 1.294 in³ | |
| Product Weight | .09 lb | |
| Product Width | .78 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Trade Name | 4721 Series | |
| UPC | 678146054524 |
