Product specifications
Characteristic | Value |
|---|---|
| Aux mount output shaft | NO AUXILIARY MOUNTING FEATURES |
| Brand | Danfoss |

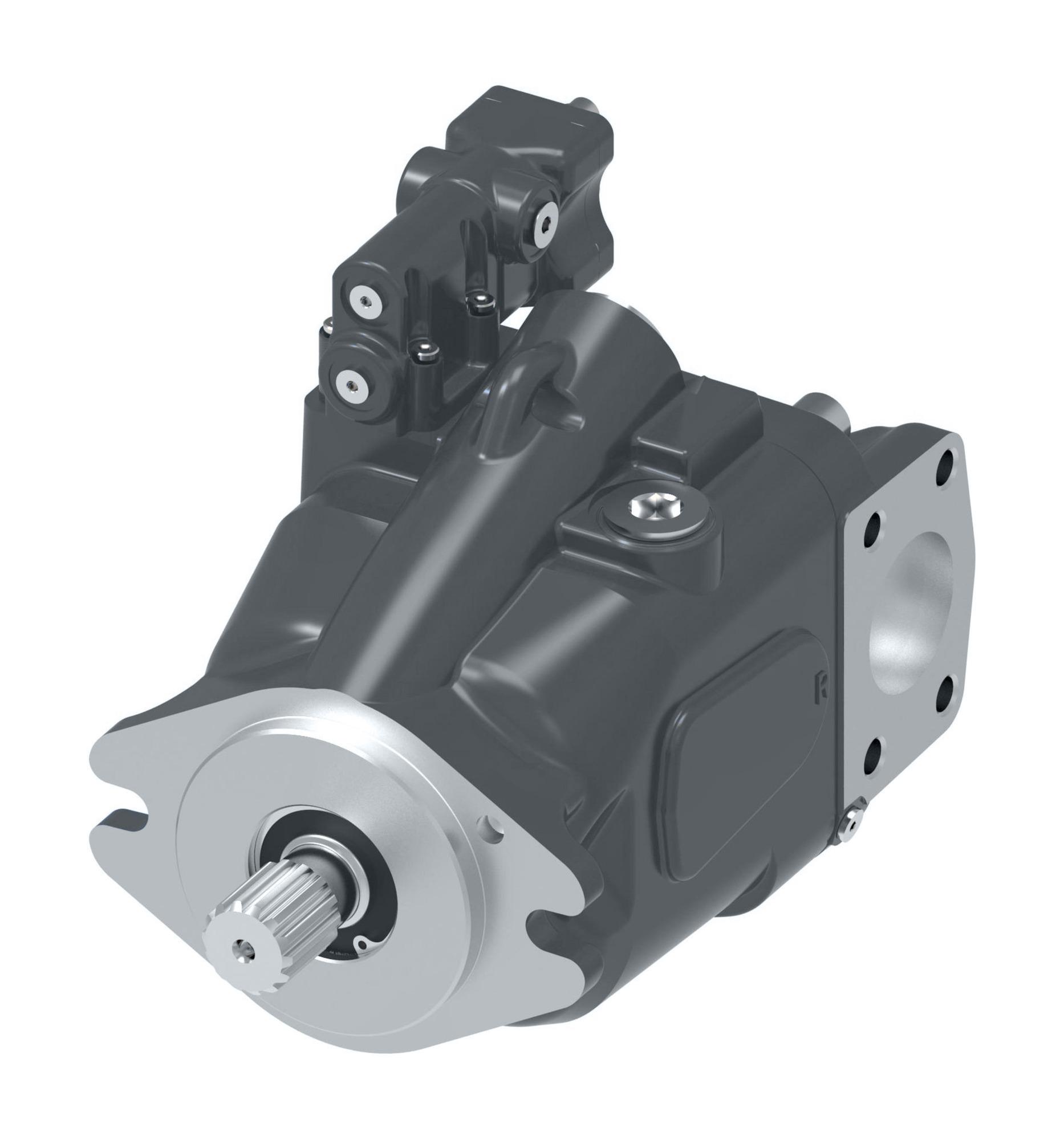

| CODE TITLE | 420 SERIES MOBILE PISTON PUMP |
| Control special features | NO CONTROL SPECIAL FEATURES |
| Controller type | PCLS W/SAE LS PORT (LEFT) |
| Design Code | THIRD DESIGN |
| Diagnostic pressure ports | NO DIAGNOSTIC PRESSURE PORTS |
| Displacement | 80.0 cm3/r [4.88 in3/r] |
| Drain port size location | 1.0625-12 SAE O-RING - TOP |
| Flow comp rpc setting | [180-220 lbf/in2] |
| Front mounting input shaft | 2/4 BOLT C, 14T 12/24 PITCH |
| Identification packaging | MARK EATON P/N AND MODEL CODE |
| Input shaft rotation | LEFT-HAND ROTATION (CCW) |
| Main ports size location | SP IN2" OUT1" C61 |
| Maximum displacement option | EXT MANUAL ADJ (SET AT MAX] |
| Paint | BLUE PRIMER PER SPEC 209-13CD |
| PRESSURE COMP SETTING | [2900-3000 lbf/in2] |
| PUMP SPECIAL FEATURES | NO PUMP SPECIAL FEATURES |
| Shaft seal | SNGL FLUOROCRBON IN 2/4 BOLT C |
| Torque control setting | NO TORQUE CONTROL OR SEC COMP |
