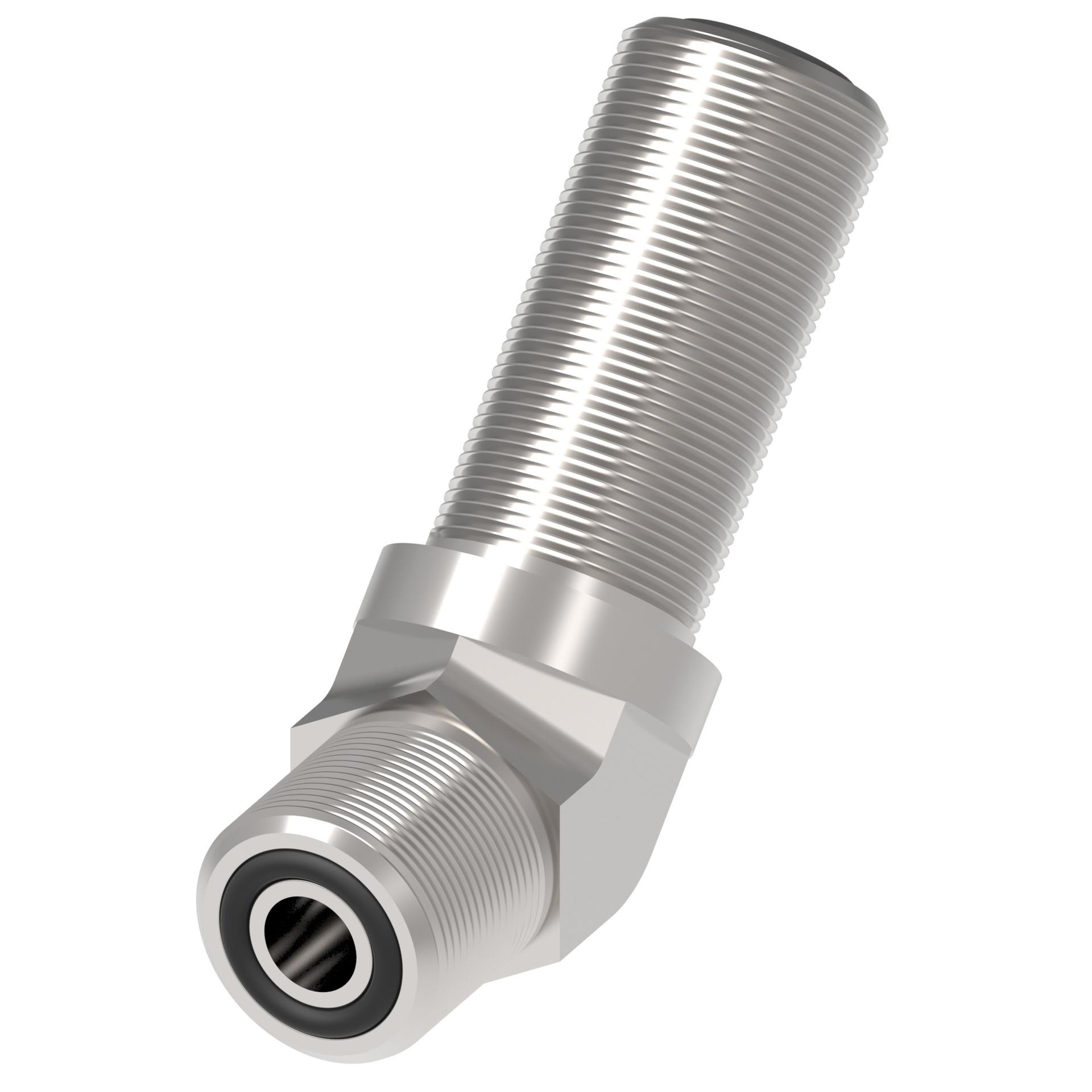

Elbow Adapters 6F4-06LNZ (RIGHT)

4375X8

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Steel adapters

Recommended replacement: FF2144H4-0808S, FF2144T0808S

Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
Certification(s)SAE 520201
Drop dimension.8
End gender 1Male
End gender 2Male
End Size 11/2 IN
End Size 213/16 IN
End type 1FOR-SEAL
End type 2UNF
Finish/platingDURA-KOTE
Hex Size 1.75 in
Inside diameter (bore hole size).378 in
Item typeFOR-SEAL Male/UNF Male Elbow Adapter
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight.5 lb
Packaged Width6.75 in
Product Height.8 in
Product Length/Depth2.01 in
Product materialCarbon steel
Product Volume1.19 in³
Product Weight.312 lb
Product Width.74 in
Thread sealantNo
Thread Size 113/16-16
Thread Size 213/16-16
Tube OD 1.5 in
UNSPSC40183100
UPC639789256232
