Elbow Adapters FF2098T0808 (RIGHT)

Danfoss

4506X8

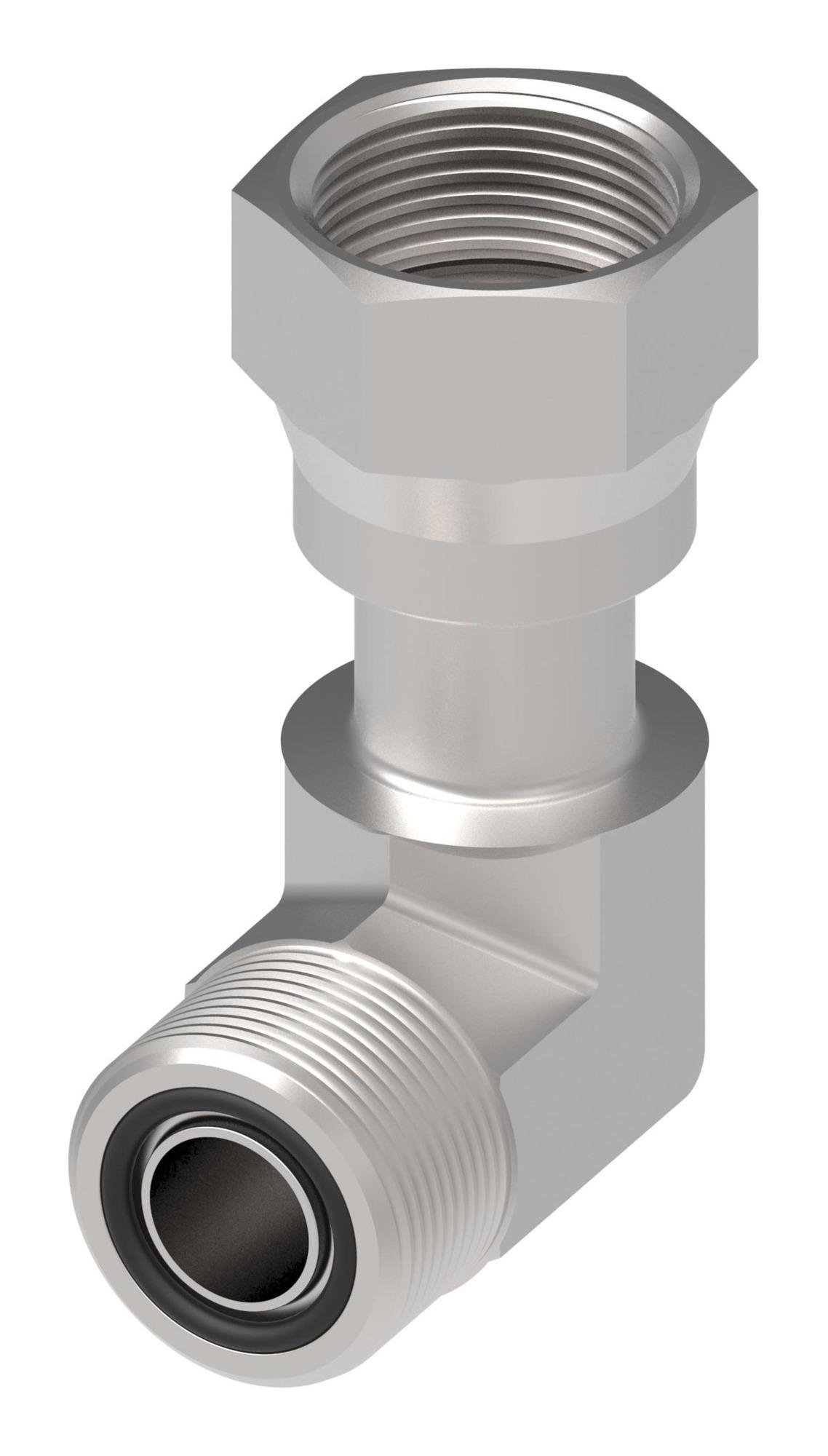

90° Swivel Elbow
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Steel adapters

Recommended replacement: FF2098T0808S

Tools

Product specifications

Characteristic
Value
Angle (shape)90 Degree
BrandDanfoss
Drop dimension1.46
End Size 113/16 IN
End Size 213/16 IN
End gender 1Female
End gender 2Male
End type 1MPT
End type 2FPT
FeatureDura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Finish/platingDURA-KOTE
Hex Size 1.94 in
Hex Size 2.94 in
Inside diameter (bore hole size).378 in
Item typeMPT Female/FPT Male Elbow Adapter
Packaged Height5.5 in
Packaged Length6.75 in
Packaged Volume250.594 in³
Packaged Weight1.098 lb
Packaged Width6.75 in
Product Height2.225 in
Product Length/Depth1.1 in
Product TypeORS/ORS
Product Volume2.301 in³
Product Weight.098 lb
Product Width.94 in
Product materialCarbon steel
Sub-brandNone
Thread Size 113/16-16
Thread Size 213/16-16
Thread sealantNo
Trade Name4505x
Tube OD 1.5 in
Tube OD 2.5 in
UNSPSC40183100
UPC639789256461
